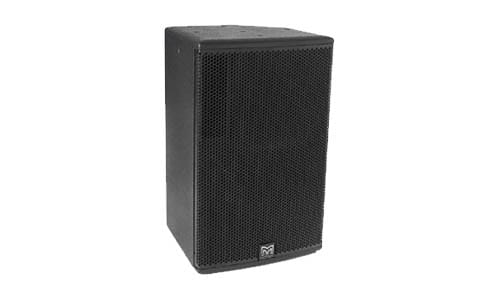

Martin Audio Pair of XD12 Compact High-Output Two-way Portable Loudspeaker

Price is for 2pcs, we only sell in pairs.



The XD12-A is a high-power, high-output, two-way system equally suited to portable live sound applications, theatre and fixed installations. It features a high-specification 12” (300mm) low frequency drive unit and a 1” (25mm) exit compression driver mounted on a user-rotatable 80° x 50° constant directivity horn.



TYPECompact, high-output, passive/bi-amp two-way systemFREQUENCY RESPONSE65Hz-20kHz ± 3dB
-10dB @ 55HzDRIVERS

12" (300mm)/3" (75mm) voice coil, long-excursion, neodymium magnet LF driver
1" (25mm) exit/1.7" (44mm) voice coil, polyimide dome, neodymium magnet HF compression driver
RATED POWER (1)

LF: 400W AES, 1600W peak
HF: 50W AES, 200W peak
SENSITIVITY (2)

FR: 98dB
LF: 99dB
HF: 108dB
MAXIMUM SPL (3)

FR: 124dB continuous, 130dB peak
LF: 125dB continuous, 131dB peak
HF: 122dB continuous, 131dB peak
NOMINAL IMPEDANCE

FR/LF: 8Ω
HF: 16Ω
DISPERSION (-6dB)

80° horizontal
50° vertical user rotatable
CROSSOVER2kHz switchable passive/bi-ampENCLOSURE38 litre, multi-laminate birch plyFINISHBlack textured coatingPROTECTIVE GRILLEBlack perforated steel, Declon® backedCONNECTORS2 x Neutrik® NL4INPUT CONNECTIONS

FR/LF (+,-): 1+,1-
HF (+.-): 2+,2-
FITTINGS

21 x M8 threaded inserts
1 x Pole mounting socket
1 x Pocket Handle
DIMENSIONS

(W) 360mm x (H) 571mm x (D) 341mm
(W) 14.2ins x (H) 22.5ins x (D) 13.4ins
WEIGHT20.8Kg (45.9lbs)
