Nova ELITE EL10

Elite EL10 Line Array Speakers - 12pcs

We are selling very well maintained speakers. Main use has been classical- and jazz concerts.

All speakers have original drivers and all drivers working correctly.

One set includes:
12x Elite El10 speakers
2x EC1 flyframes

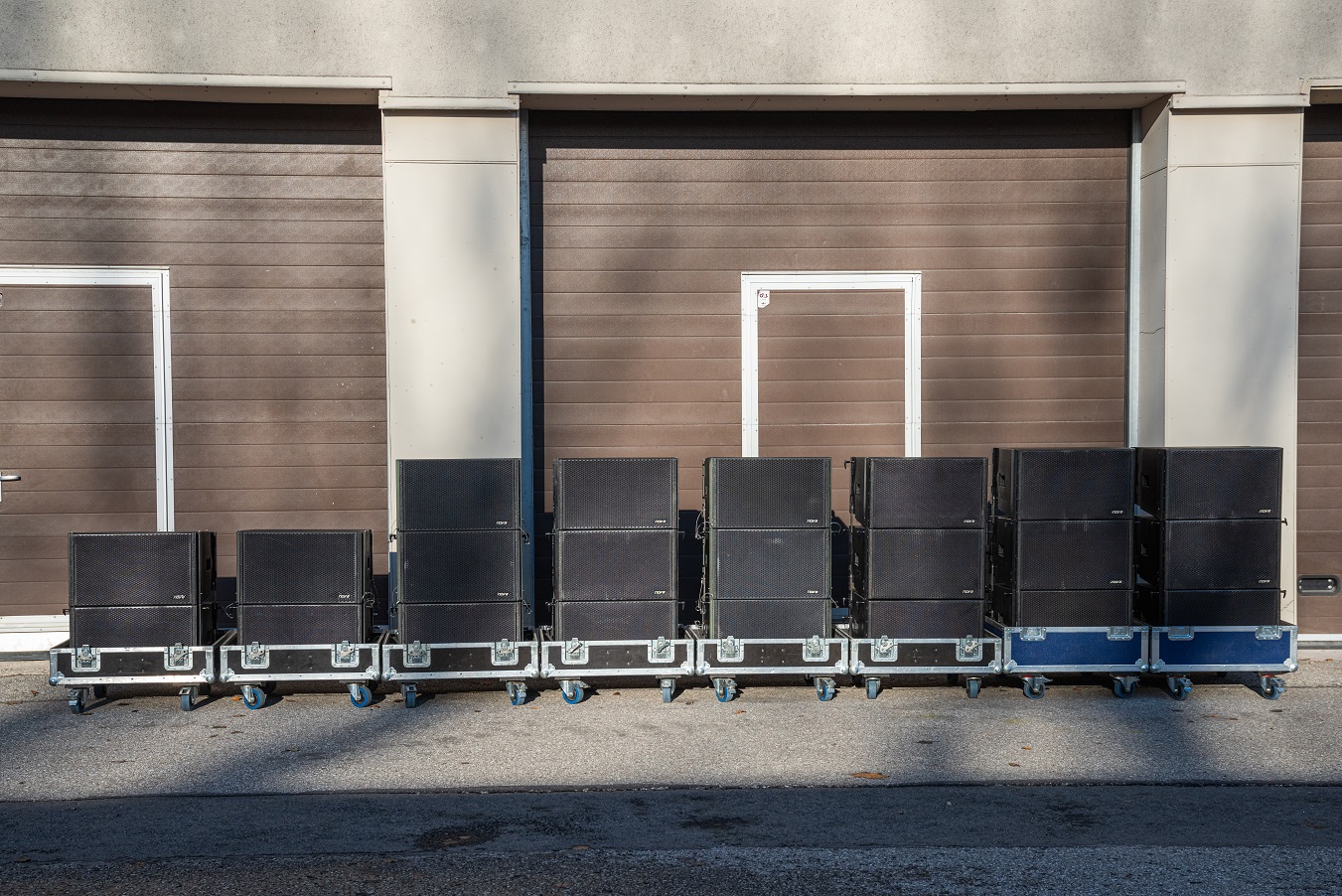

4x transport cases (3 pcs in one case)

Its possible to order all 22pc

The EL10 is a two-way high performance line array speaker in a trapezoidal chassis for fixed installations and mobile use.

*The cabinet is equipped with two 1" HF drivers (1,75” voice coil), which are mounted onto a wave guide.

*The nominal coverage is 100° x 10° (H x V). The MF/LF section is equipped with one high-performance 10" speaker (3” voice coil), which is hornloaded.

*The 10” transducer is contructed behind the wave guide of the high-frequency section (coaxial construction).

*The EL10 can be flown in vertical colums with up to 12 units per side by using the EC1 flyframe

*The angle between each EL10 can be adjusted from 0° up to 7,5° in steps of 1,5°.

*The chassis is constructed from 15 mm plywood (birch) and covered with black PolyCoat© finish. The cabinet is equipped with two grip handles and one front grill with transparent charcoal foam backing.

*Two speakon connectors (NL4) are mounted at the rear side of the chassis for signal input (input) and signal link (link).

*The power rating of the EL10 is 400 W (RMS), the impedance is 8 ohms.


NOVA - EL 10 - 10" 2-way hornloaded coaxial line array speaker
