Achtung! Diese Anzeige ist entweder ausgelaufen oder wurde vom Ersteller beendet. Der Artikel ist vermutlich nichtmehr verfügbar.
Verhandlungsbasis
Verfügbare Anzahl 2
Erstellt: 17.07.2025 13:39
Zustand:
Gebraucht

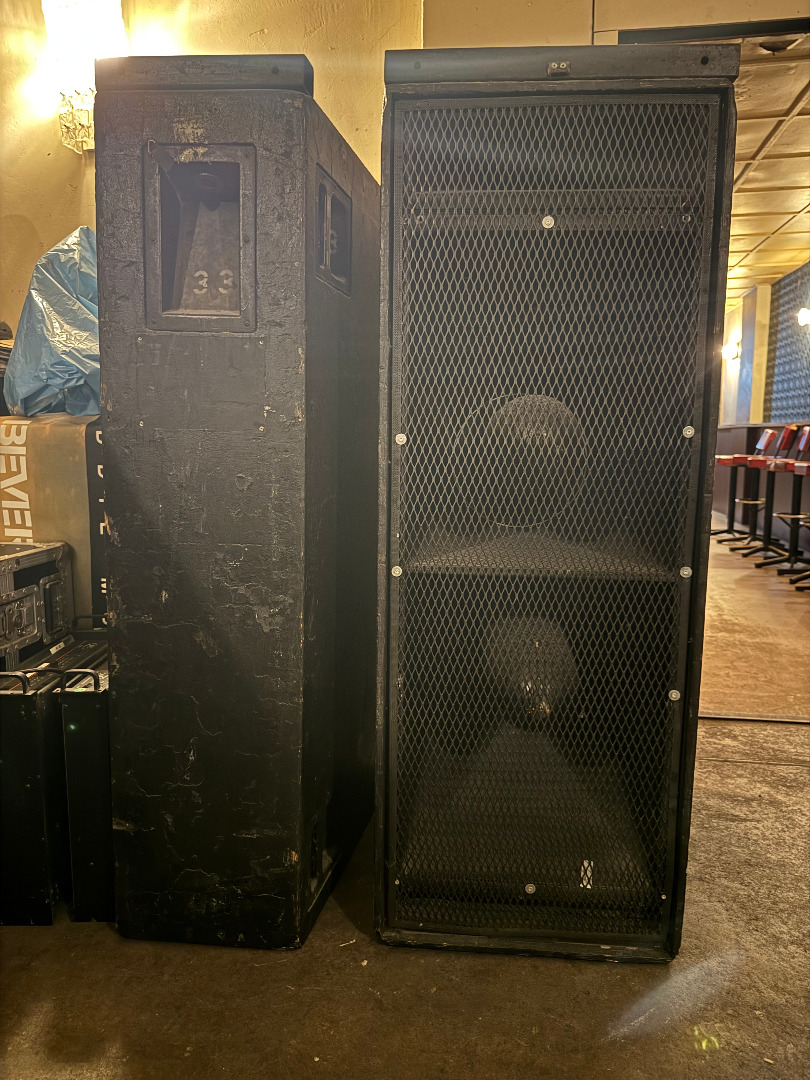

Designed to perform in a wide range of large-scale sound reinforcement applications, the high-power, arrayable MSL-3 allows for coherent, controlled coverage of wide areas in theater, club and concert sound reinforcement. The efficient loudspeaker delivers high sound pressure levels with extremely low distortion, for maximum intelligibility and fidelity. The biamplified loudspeaker consists of two proprietary 12-inch low-frequency cone drivers in a unique horn-loaded, vented enclosure, and a single high frequency driver with a 70-degree horn. The rugged, multiple-ply hardwood cabinet is fitted with handles.

Specifications

Frequency Response’ 75-20,000 Hz +1- 4dB
Maximum SPL with Amplifier rated at 400W/4 ohms/ch.: 130 dB continuous, 135 Peak
HF Distribution Pattern: Horizontal 70 degrees, Vertical 60 degrees

MSL-3 Loudspeaker
Driver Complement
Low Frequency Drivers: MS-12 (two)
High Frequency Driver: MS-2001
VHF Tweeter Array: MS-P4

High Frequency Horn: 70 degree modified radical

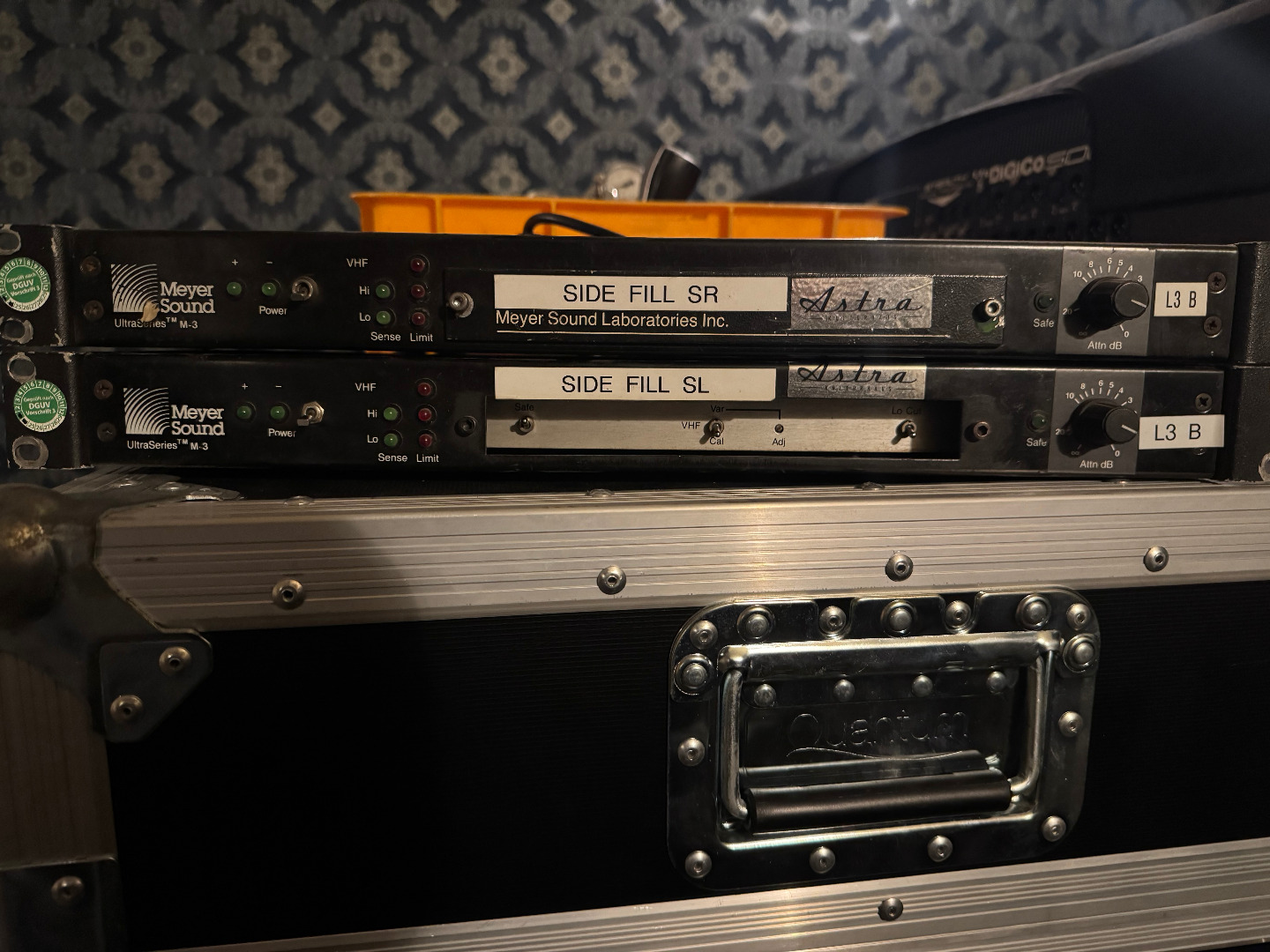

HF Network: X-M3, (VHF Crossover)
HF DC Protection: 20 pF Polypropylene capacitor
Enclosure: Vented, horn loaded, multi-ply Finnish Birch plywood
