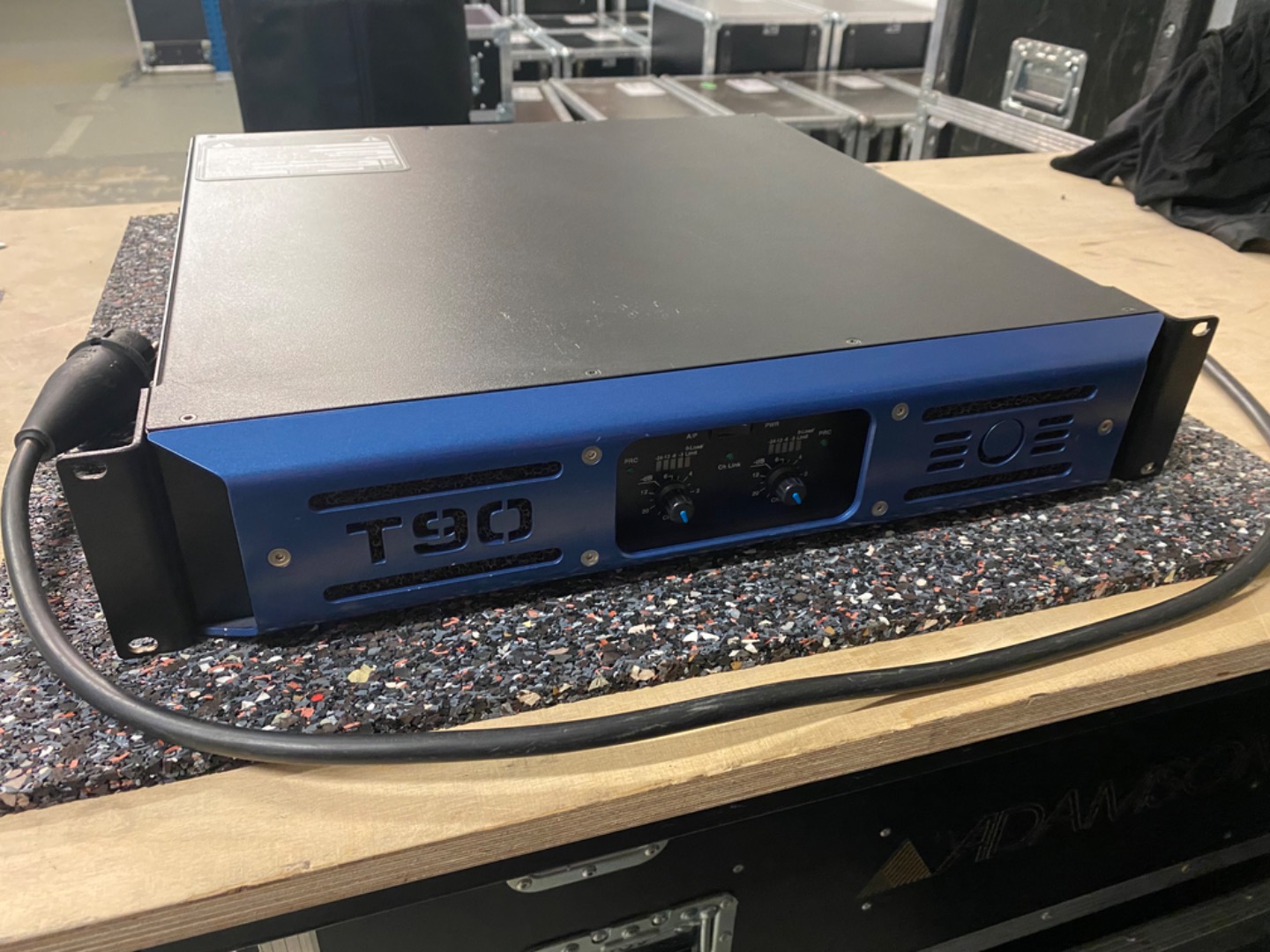

T-90
Two Channel Switchmode Power Amplifier, 4500 Watts into 4 Ohms @ 1 kHz Per Channel
Technical Specifications System Dimensions (H x W x D) 88mm x 482mm x 428mm (3.5" (2U) x 19" x 16.8") Net Weight 11.5kg (25.4 lbs) Frequency Response 20 Hz - 20 kHz±0.5 dB (4 0hm load) Amplifier Type Class AB Connectors 2 x 3-pin female XLR plus 2 x 3-pin male XLR links Power Output 2000 W into 8 O @ 1 kHz
4500 W into 4 O @ 1 kHz
8000 W into 2 O @ 1 kHz
9000 W bridged into 8 O @ 1 kHz
16000 W bridged into 4 O @ 1 kHz Indicators 1 x power, 2 x limit, 2 x signal present, 2 x -3dB, 2 x power reduction control (PRC), 1 x auto protect, 1 x bridged Protection AC Power Input 230 VAC @ 20 amps max or 115 VAC @ 40 amps max
