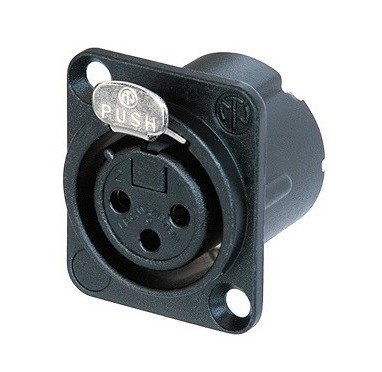

Neutrik NC3FD-LX-B XLR 3P. Female chassis connector D-hole with gold-plated contacts

Neutrik NC3FD-LX-B XLR 3P. Female chassis connector D-hole with gold-plated contacts. Condition: New. (NC3FDLXB).



- New product. (3)



- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions

Specifications:
Type: XLR Connector chassis
Poles: 3
Gender: Female
Contacts: Bronze
Connection type: solder contacts
Housing: Zinc die-cast
Width: 26 mm
Height: 31 mm
Depth: 32.66 mm
Weight: 0,03119 kg
