Electro-Voice EV CP3000s, EV XLD281, Line Array

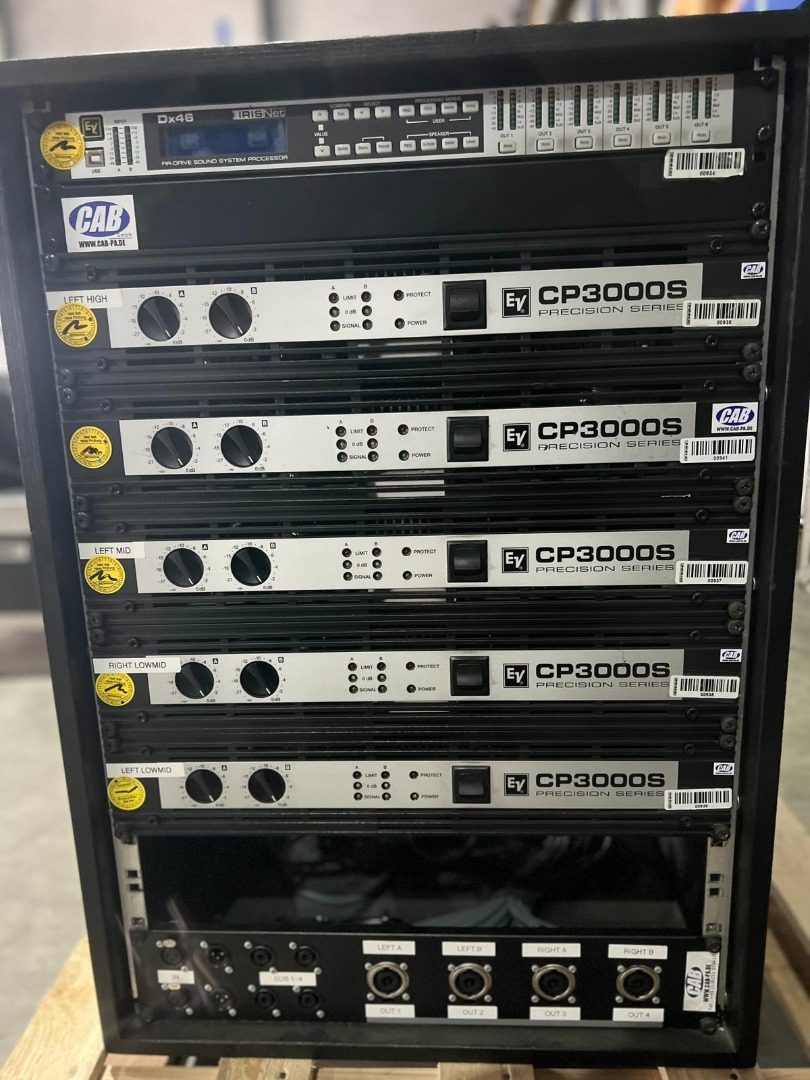

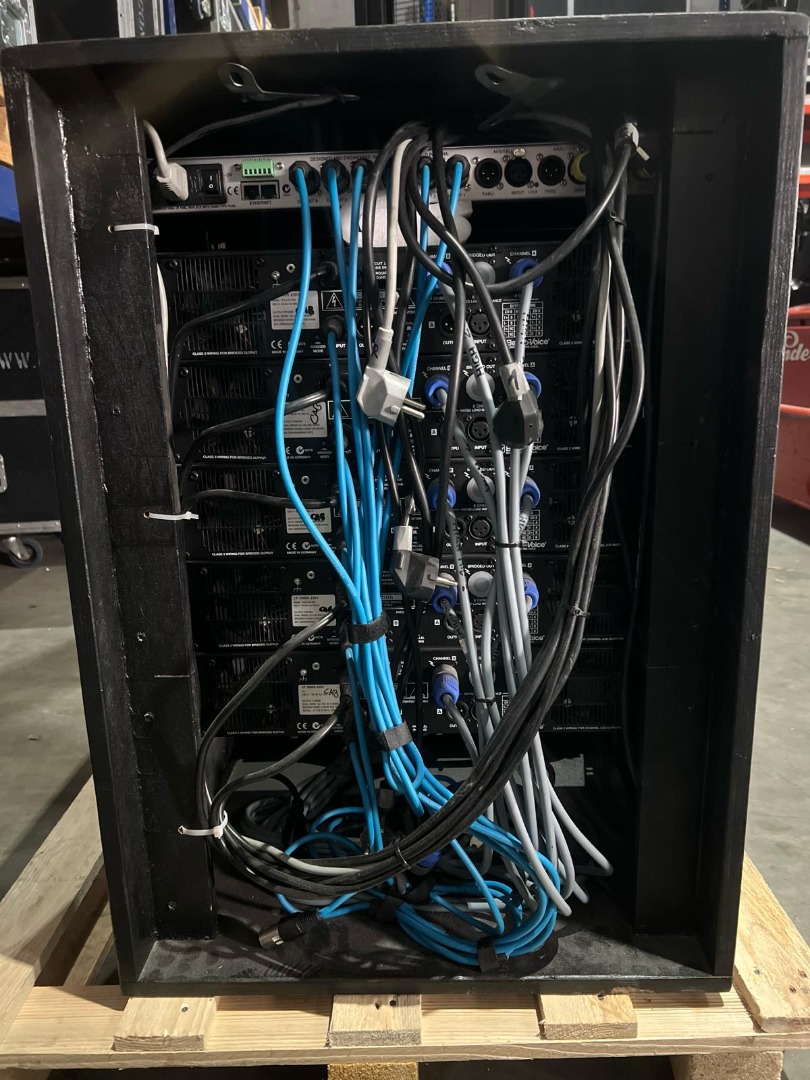

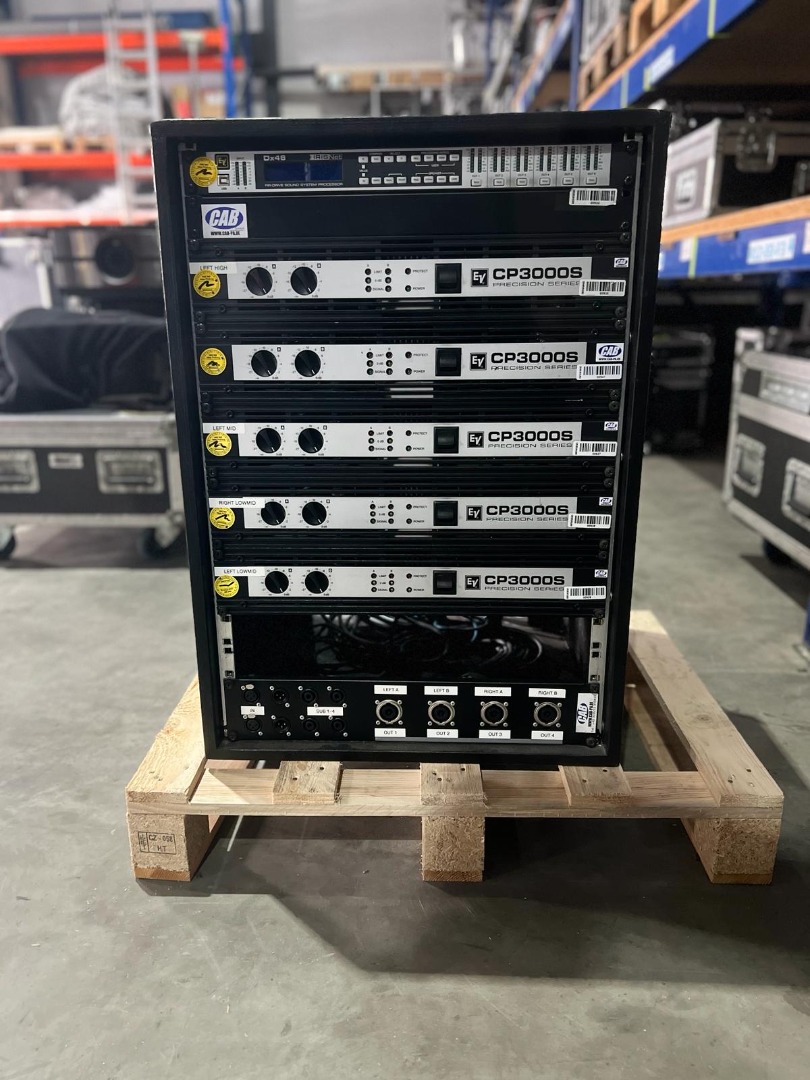

EV CP3000s (5 Stk. verbaut mit Controller und Patchfeld, siehe Bild)

Designed for Club Sound, Concert Sound, House of Worship, Performance & Sports Venues, Pro Music, and other applications.
Up to 2 x 1600 W into 2 ohms
XLR pass-though input connections
The NL4 connection on output A also carries output B on pins /- 2 to allow easy connection to bi-amped loudspeakers
Extremely lightweight and highly efficient
Class-H design
Switch mode power supply
Three-stage front-to-rear fans
Complete protection package
Classic EV amplifier dynamic headroom for real-world music and applications
Built-in dynamic limiters

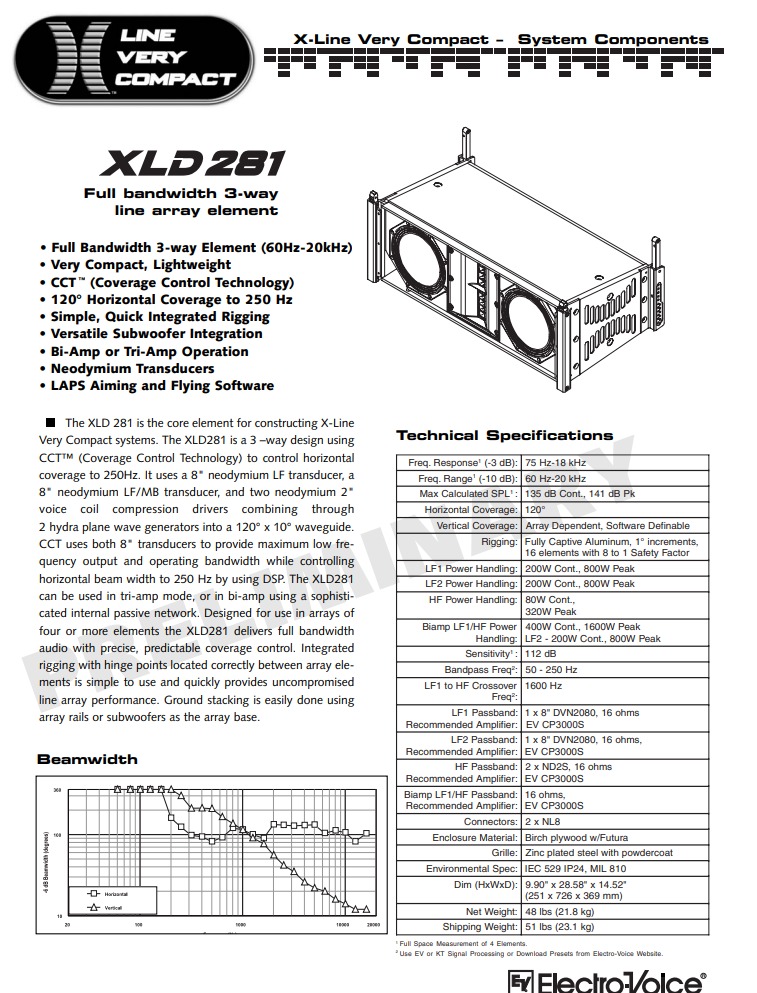

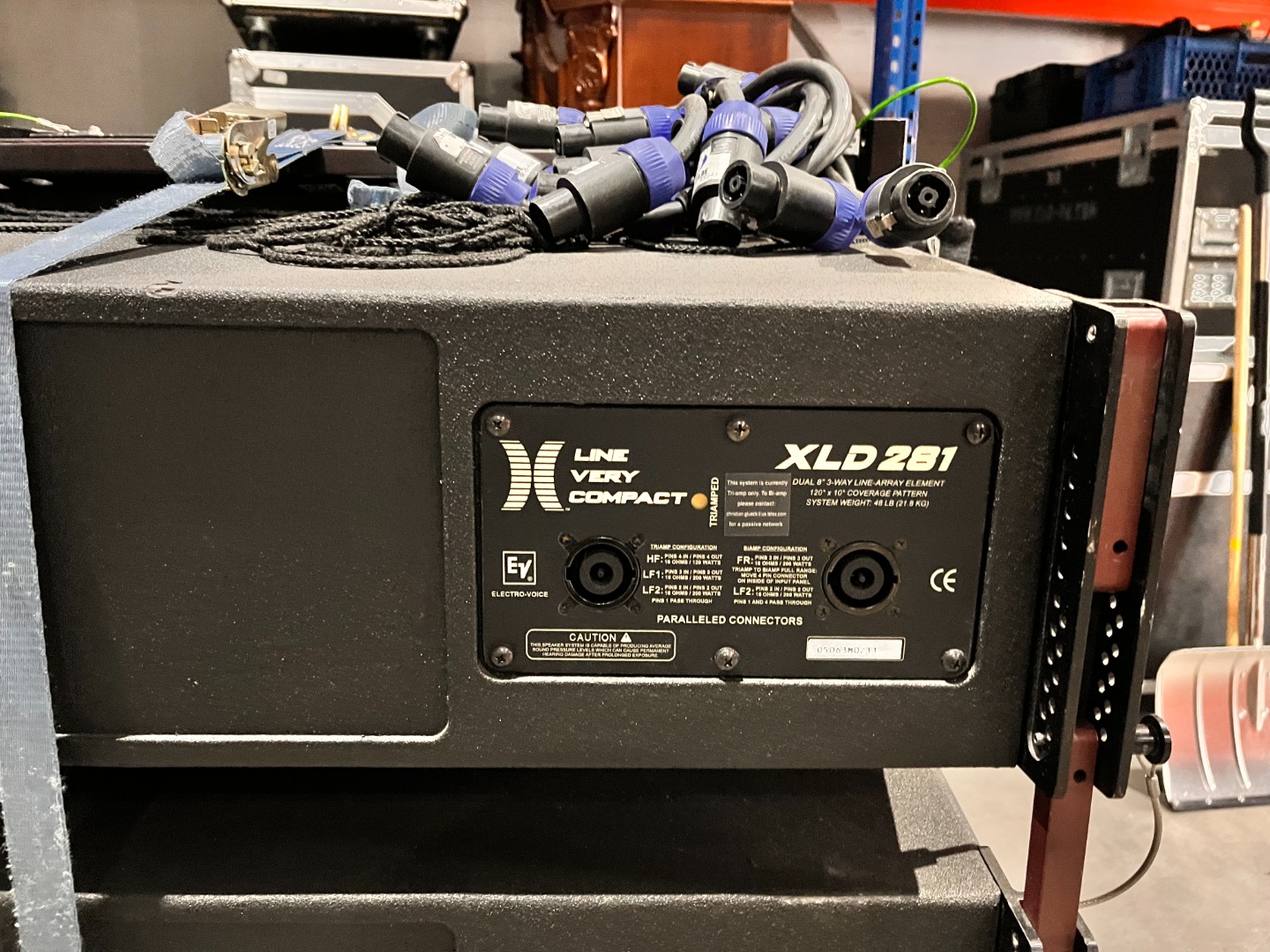

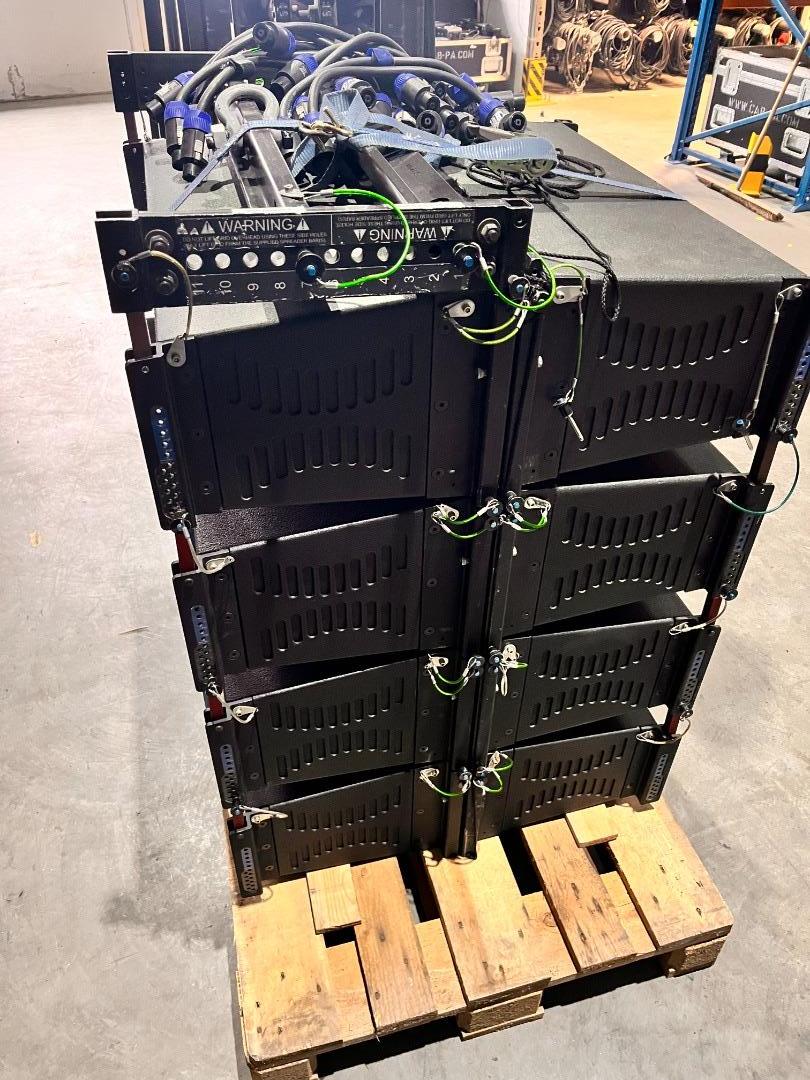

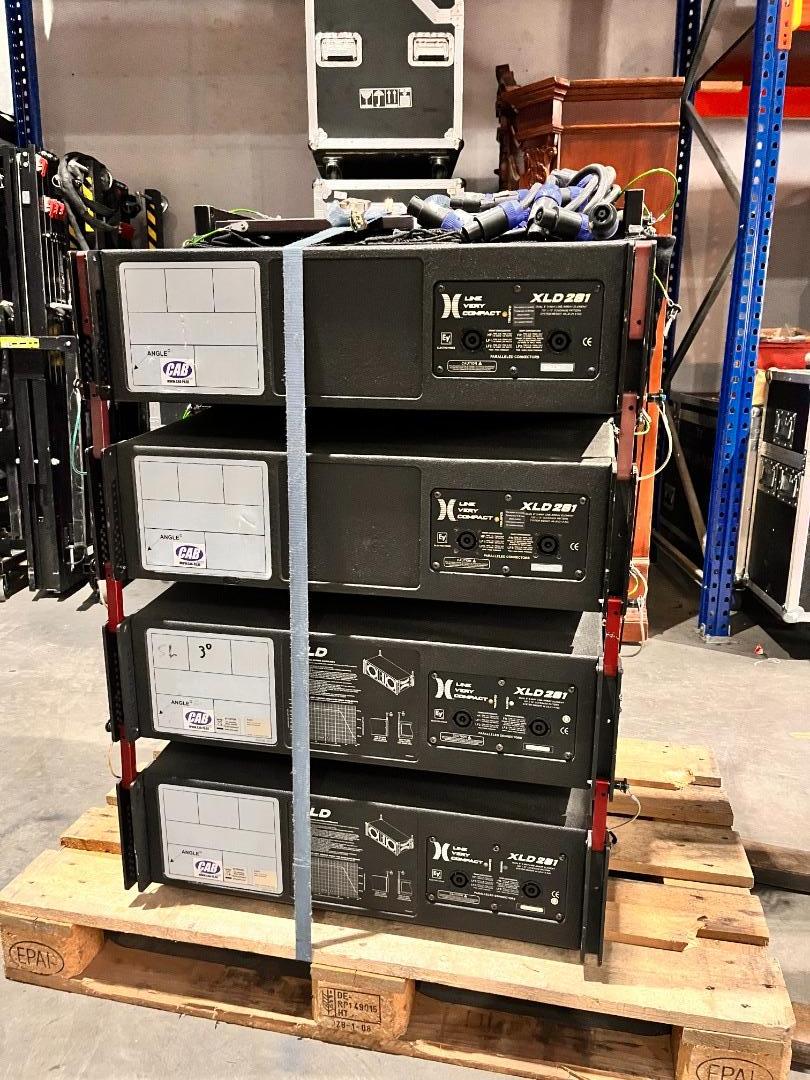

EV XLD281 (16 Elemente)

Frequency Response (-3 dB) 75 Hz-18 kHz¹
Frequency Range (-10 db) 60 Hz-20 kHz¹
Max Calculated SPL 137 dB Cont., 143 dB Peak²
Horizontal Coverage 120°
Vertical Coverage Array Dependant, Software Definable
Rigging Fully Captive Aluminum, 1° increments, 16 elements with 8 to 1 Safety Factor
LF1 Power Handling 200W Cont., 800W Peak
LF2 Power Handling 200W Cont., 800W Peak
HF Power Handling 80W Cont., 320W Peak
Biamp LF1/HF Power Handling 200W Cont., 800W Peak LF2 - 200W Cont., 800W Peak
Bandpass Frequency 50 - 250 Hz³
LF1 to HF Crossover Frequency 1760 Hz³
LF 1 Passband 1 x 8 inch DVN2080, 16 ohms
LF2 Passband 1 x 8 inch DVN2080, 16 ohms
HF Passband 2 x ND2S-8, 16 ohms
Biamp LF1/HF Passband 16 ohms
Connectors 2 x NL8
Enclosure 13-ply birch plywood with EVCoat
Grille Galvannealed steel with powder coat paint
Environmental Specifications IEC 529 IP24, MIL 810
Dimensions (H x W x D) 9.9 in x 28.58 in x 14.52 in (251 mm x 726 mm x 369 mm)


Wir verkaufen alles in einem Bundle.
