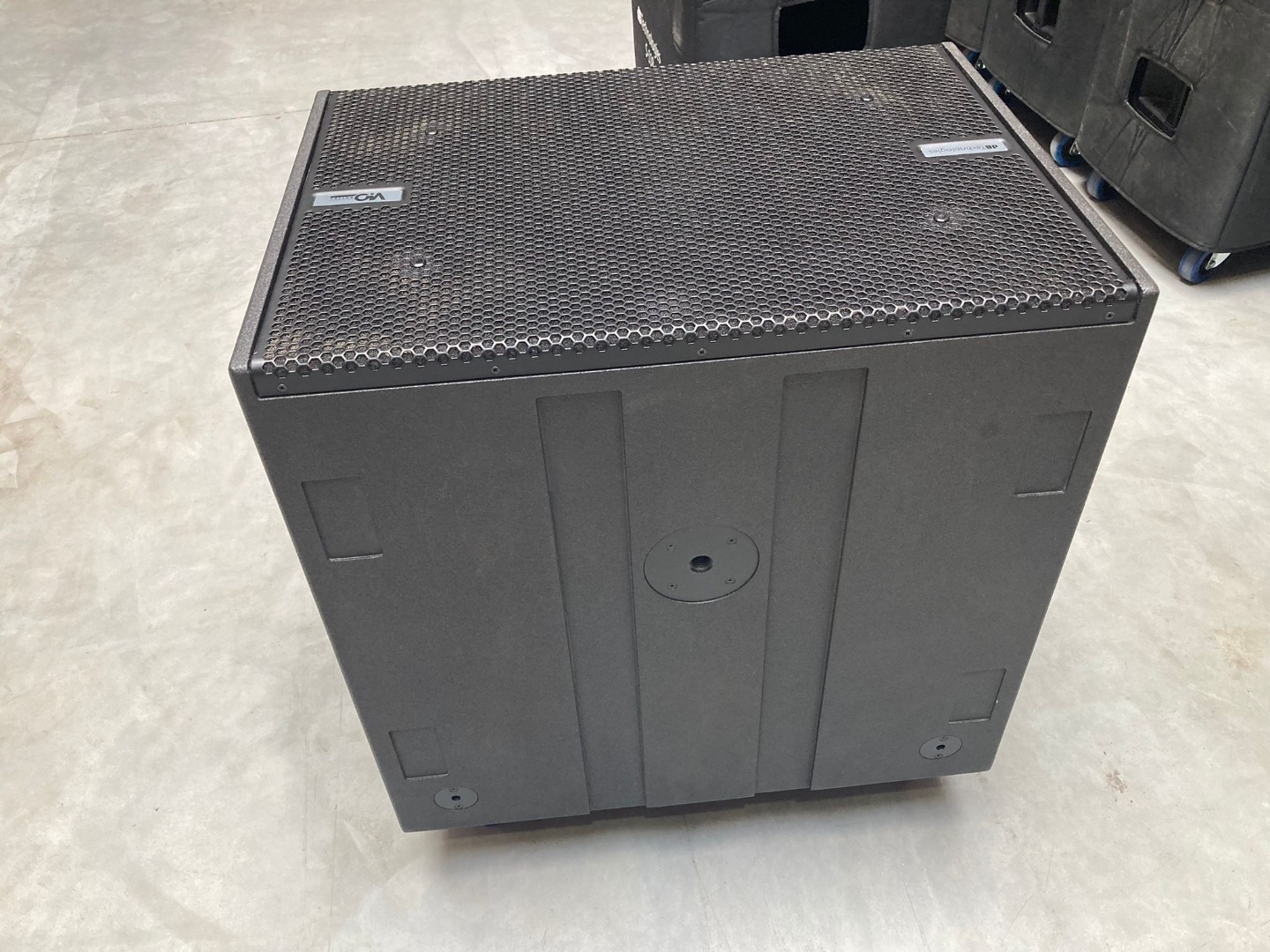

dB Technologies VIO S118R

1x dB Technologies VIO S118R - Gebrauchtware

Inhalt:

1x VIO S118R mit Rollen

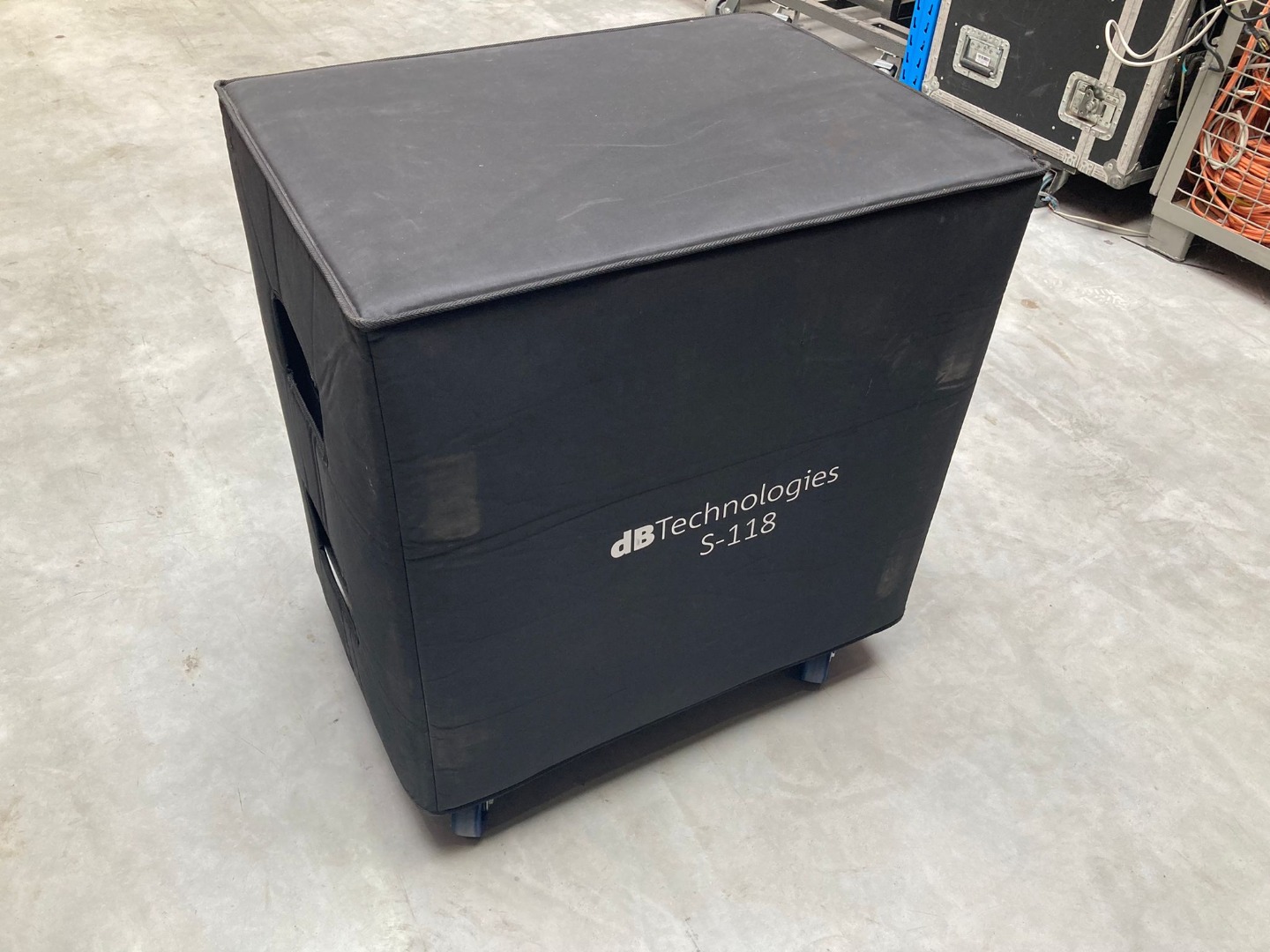

1x Cover
1x Anschlusskabel (Strom)

Unser Gebrauchtpreis: 1850,00 EUR zzgl. 19% MwSt.
Verkauf erfolgt nur Paarweise
Verkauf erfolgt nur B2B!
Verkauf unter Ausschluss der Sachmangelhaftung!


Technische Daten
Speaker TypeActive Bass Reflex Subwoofer
Akustische Daten
Frequency Response [- 6 dB]35 Hz to Cut Freq (X-Over Dependent)
Frequency Response [- 10 dB]32 Hz
Max SPL139 dB
LF1x18"
Voice Coil LF4 "
DirectivityOmnidirectional
Verstärker
Amp TechnologyDigipro® G4
Amp ClassClass D
RMS Power1600 W
Peak Power3200 W
CoolingConvection + Internal Fan
Power SupplyFull-range PSU with PFC
Prozessor
ControllerDSP 32 Bit
AD/DA Converter24 bit 96 kHz
LimiterRMS, Peak, Thermal
Delay Option0- 9.9 ms | steps of 0.1 ms [on-board]
0 - 62 ms [via RDNet]
Crossover Frequency LF-HFSelectable 60-110Hz + Full range
LF-Xover out slope24 dB/Octave

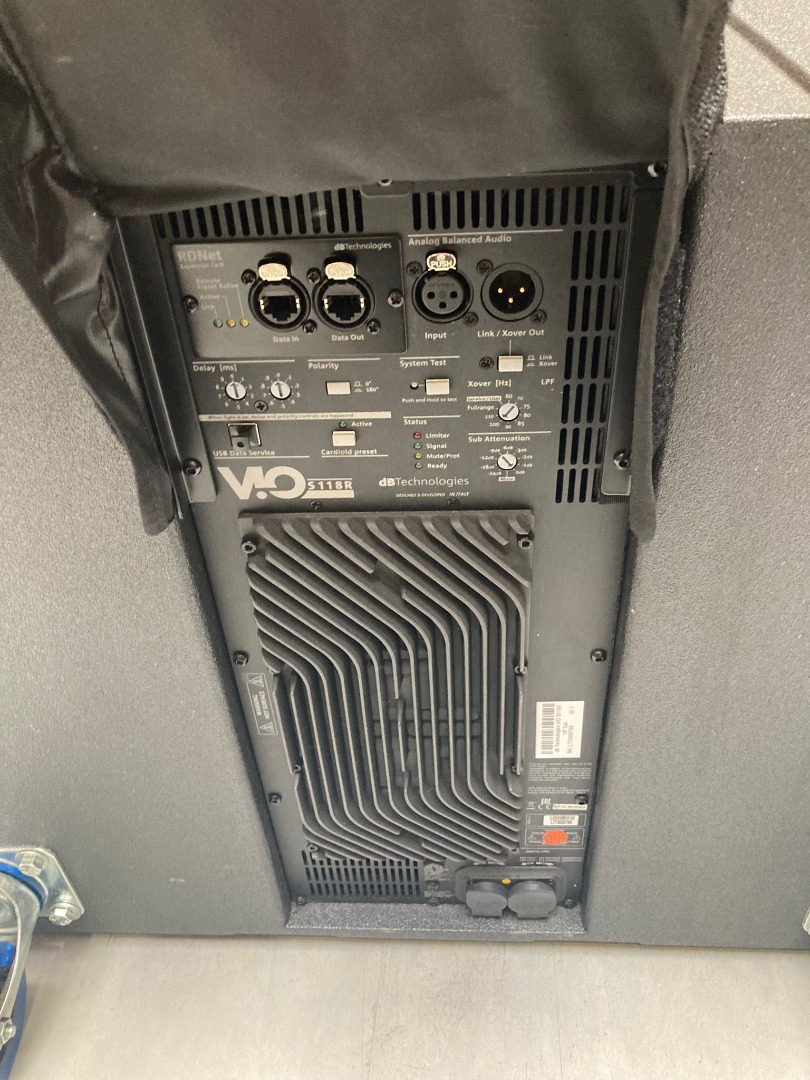

Eingang
Signal Input1xXLR balanced
Signal Output1x XLR balanced (link or X-over)
1xRJ45 LINK (RDNet)
Expansion CardRDNet Card (1x RJ45 IN 1x RJ45 Link) [included]
Dante card [optional]
Mains Connections1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls1x Input Attenuation Rotary Switch
1x Rotary Encoder (Delay 9.9 ms)
1x Polarity Inversion Switch (0° or 180°)
1x Cardioid Mode Switch
1x X-Over Freq Switch (60-110 Hz + Full Range
1x System Auto-test
Mechanik
HousingMultiplex plywood
Polyurea painted
Handles2x Per Side
Aluminium
Pole MountM20 Thread
RaincoverIncluded
Width720 mm (28.34 in)
Height520 mm (20.47 in)
Depth695 mm (27.36 in)
Weight47 kg (103.62 lbs)
