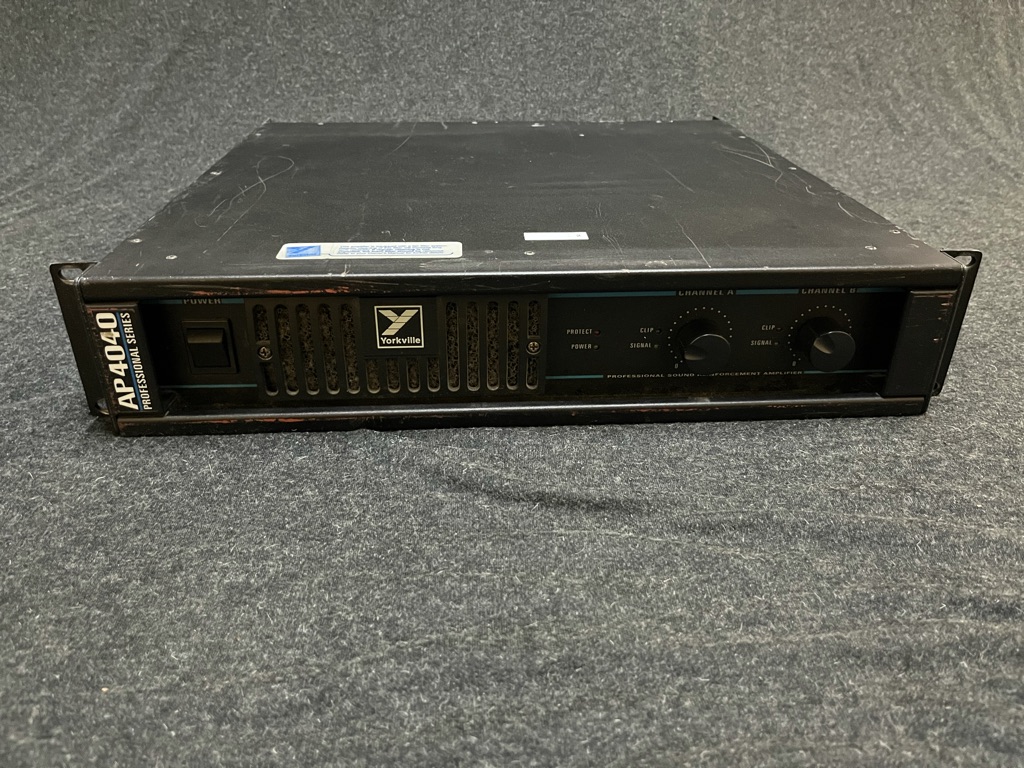

Yorkville AP4040

Verkauft wird hier eine Yorkville AP4040. Die Endstufe ist in technisch einwandfreiem Zustand dem Alter entsprechend, hat die Endstufe leider ein paar Kratzer.

Daten zur Endstufe:
Amplifier class: H
Continuous Average Power @ 8 Ohms BCD (Watts): 750 (x2)
Continuous Average Power @ 4 Ohms BCD (Watts): 1200 (x2)
Continuous Average Power @ 2 Ohms BCD (Watts): NA
Continuous Average Power Bridged BCD (Watts): 2400 @ 8 Ohms
Burst Average Power @ 8 Ohms BCD(Watts): 1200 (x2)
Burst Average Power @ 4 Ohms BCD (Watts): 2175 (x2)
Burst Average Power @ 2 Ohms BCD (Watts): NA
Burst Average Power Bridged BCD (Watts): 4350 @ 8 Ohms
Frequency Response (Hz, +/- 1dB): 20-20,000
Hum and Noise (un / Aweighted -dB): 0.971698113207547
THD -1kHz- 4 OHMS: 0.0001
THD - 20Hz-20kHz, 4 Ohms: less than 0.1%
Slew Rate (V/uS): 25
Slew Rate Bridged (V/uS): 50
Damping Factor (30 Hz - 400 Hz @ 8 Ohms): 600
Crosstalk (1kHz / 20Hz-20kHz): -75 / -60 dB
Input Impedance - Bal/Unbal (Ohms): 20,000/10,000
Input Sensitivity (Vrms) For Full Power Out: 1.4 V
Max Voltage Gain (dB): 36
CMRR @ 60Hz (min/typ): 48/56 dB
Stereo / Mono / Bridge )S/M/B): S/M/B
Protection: DC,Load,Thermal
Limiter: Peak
High Pass Filter: 40Hz, 12dB Octave
Cooling: Internal Fan
Cooling Path: Front to Rear
Fan Filter: User Serviceable

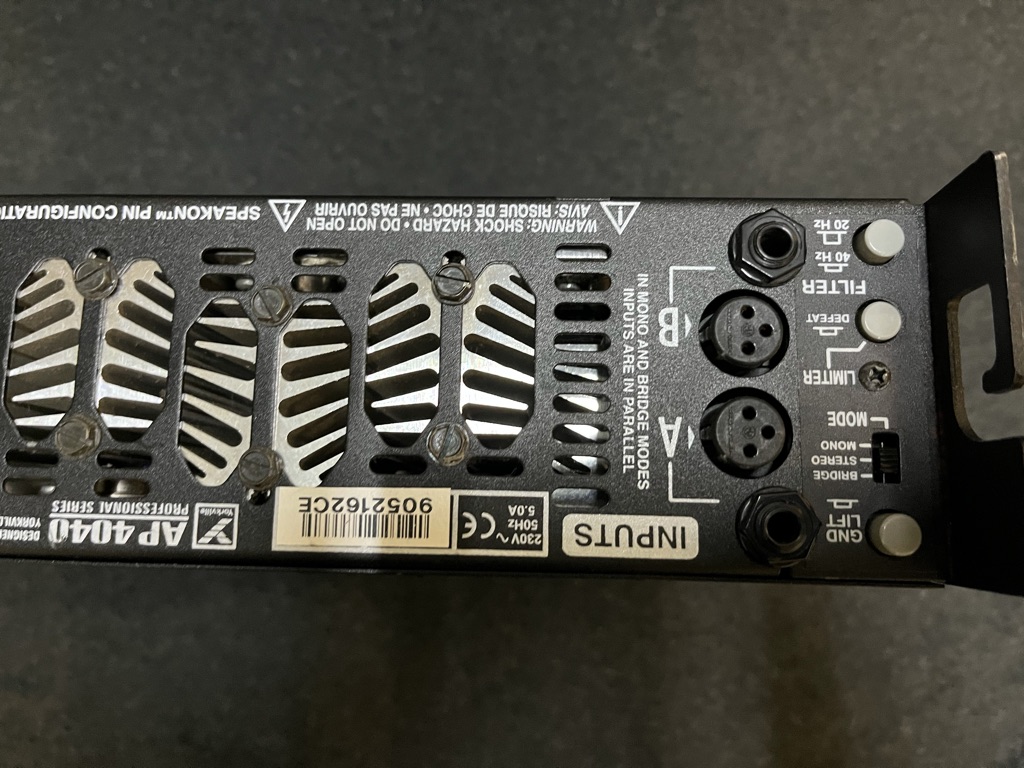

Inputs - XLR: 2
Inputs - 1/4 IN Jacks: 2

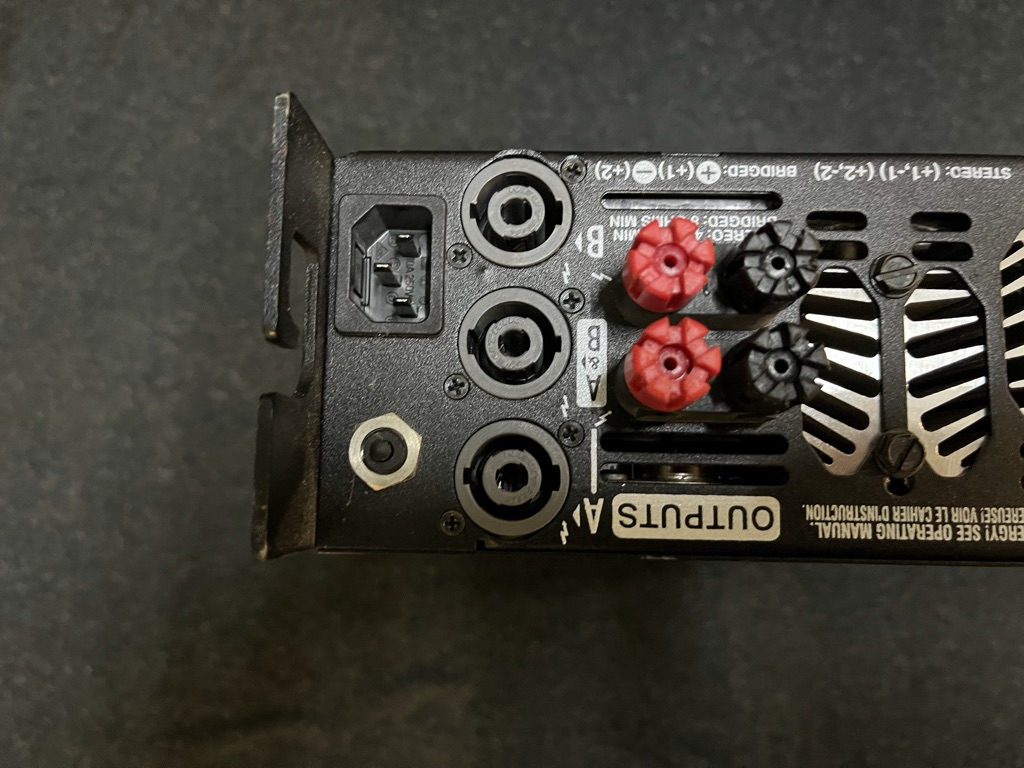

Outputs - Speakon 4-pin: 2
Outputs - Binding Post: 2
Power Consumption (typ/max) 1130/1800 Watts
Rack Spaces: 2
Transformer Type: Toroidal
Exterior Finish: Baked, Black Painted
Dimensions (DWH /D fm ears, inches): 19 x 17.3 x 3.5 x 16.2
Dimensions (DWH /D fm ears, cm): 48.3 x 43.9 x 8.9 x 41
Weight (lbs / kg): 42.3 / 19.2

Für weitere Fragen stehen wir gerne zur Verfügung.
