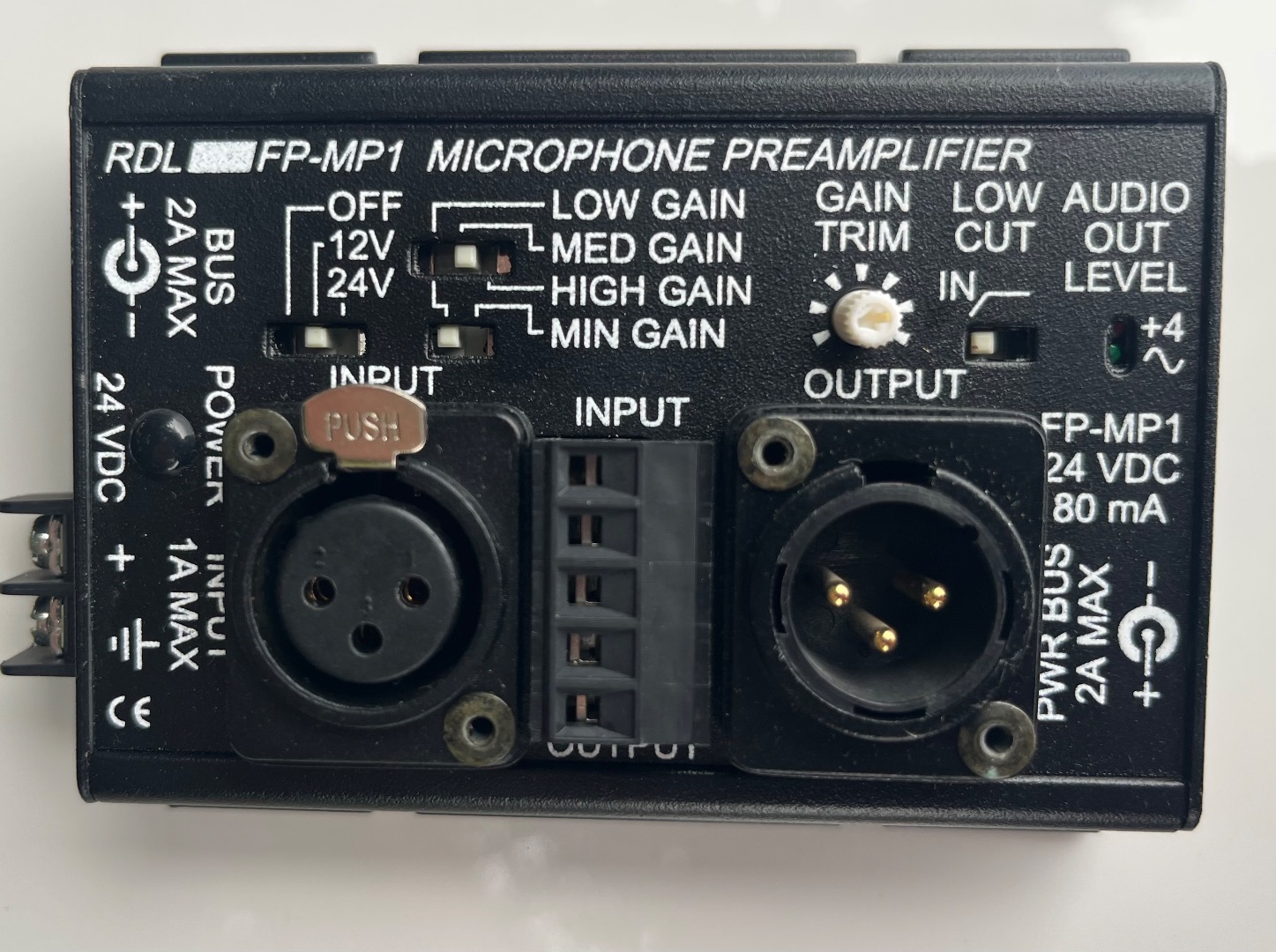

Radio Design Labs FP-MP1 RDL

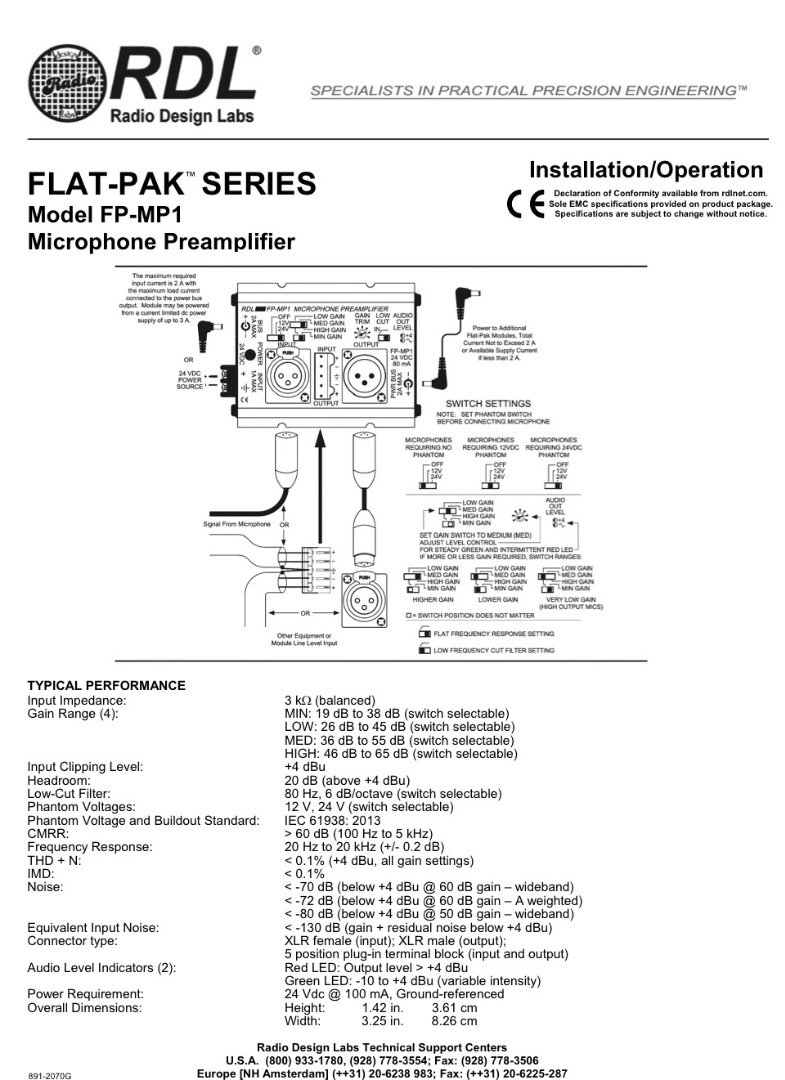

TYPICAL PERFORMANCE
Input Impedance:
Gain Range (4):
Input Clipping Level:
Headroom:
Low-Cut Filter:
Phantom Voltages:
Phantom Voltage and Buildout Standard:
CMRR:
Frequency Response:
THD + N:
IMD:
Noise:
Equivalent Input Noise:
Connector type:
Audio Level Indicators (2):
Power Requirement:
Overall Dimensions:
3 kS2 (balanced)
MIN: 19 dB to 38 dB (switch selectable)
LOW: 26 dB to 45 dB (switch selectable)
MED: 36 dB to 55 dB (switch selectable)
HIGH: 46 dB to 65 dB (switch selectable)
+4 dBu
20 dB (above +4 dBu)
80 Hz, 6 dB/octave (switch selectable)
12 V, 24 V (switch selectable)
IEC 61938: 2013
> 60 dB (100 Hz to 5 kHz)
20 Hz to 20 kHz (+/- 0.2 dB)
< 0.1% (+4 dBu, all gain settings)
<-70 dB (below +4 dBu @ 60 dB gain - wideband)
<-72 dB (below +4 dBu @ 60 dB gain - A weighted) <-80 dB (below +4 dBu @ 50 dB gain - wideband)
< -130 dB (gain + residual noise below +4 dBu)
XLR female (input); XLR male (output);
5 position plug-in terminal block (input and output)
Red LED: Output level > +4 dBu
Green LED: -10 to +4 dBu (variable intensity)
24 Vdc @ 100 mA, Ground-referenced
