ATC ATC Support 50-92 (24m x 15m) - 8 Towers

For sale a complete roof grand support from ATC.

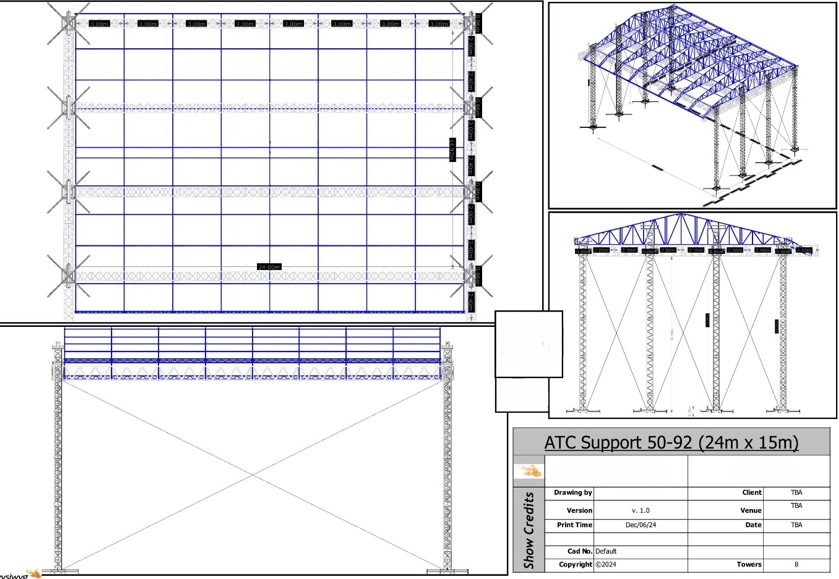

We have all the detailed technical drawings, static reports and recent user loads.

Just send us an e-mail: baltzis@omikron.gr

-------------------------------------------------------------
The support can be inspected in our facilities in Athens.
Shipping will be fitted in 2 trucks (14m each) and 1 truck (10m) total = 3 trucks needed for shipping.

Below is what is included:

ATC ARC for roof cover canopies: 9

Contents:
ATC ARC Ladder Roof No1 Middle: 9 pcs
ATC ARC Ladder Roof No2: 18 pcs
ATC ARC Ladder Roof No3: 18 pcs
ATC ARC Ladder Roof No4 muzzle: 9 pcs
ATC ARC Roof Adaptor for Ladder Truss SB29-2 Middle: 7 pcs
ATC ARC Roof Adaptor for Ladder Truss SB29-2 End: 2 pcs
ATC SB29-2 Ladder Silver 2,85m: 16 pcs
ATC ARC Adaptor Shoe for ATC SB92/61 P-4: 54 pcs
ATC Tube Φ48 3,0m: 72 pcs
ATC Pins for SB-29 & Tubes: 140 pcs
ATC R-Clip for SB-29 & Tubes: 140 pcs

CANOPIES
Contents:
Canopy 3m x 19m Silver/Gray: 8 pcs
Canopy Side Arc Roof Silver/Gray Left-Right: 2 pcs
Canopy Side Arc Roof Silver/Gray Left-Right Muzzle: 2 pcs

8 x TOWERS ATC SB50PT-4 – 13.20m Height + 4 Fake Towers

Contents :
ATC SBE92/61S-4-S4/50-V2 Rectangle Silver Sleeve Block: 8 pcs
ATC Square SB50PT-4-TT2 Tower Top Pulley: 8 pcs
ATC SBE92/61S-4-S4/50-V2 Safeties(4xTubes Φ60 + 4 x couplers 60/48): 8 pcs
ATC SBE92/61S-4-S4/50-V2 Adaptor for Chain Hoist Male: 2 pcs
ATC SBE92/61S-4-S4/50-V2 Adaptor for Chain Hoist Female: 2 pcs
ATC SB50PT-4-TB Base: 12 pcs
ATC SB50PT-4-OUT Long Outrigs: 32 pcs
ATC SB92/61 P-4 Adaptor Fake Tower + (4 x clamps 60/48): 4 pcs
ATC SB92/61 P-4 Pins: 150 pcs
ATC SB92/61 P-4 R Clips: 150 pcs
ATC SB50PT-4 Square Silver 3,00m: 48 pcs
ATC SB50PT-4 Square Silver 1,20m: 8 pcs
ATC SB50PT-4 Square Silver 1,00m: 4 pcs
ATC SB50PT-4 Square Silver 0,50m: 4 pcs
ATC SB35/50PT Pins: 450 pcs
ATC SB35/50PT R Clips: 450 pcs

ATC TRUSS SB92/61

ATC SB92/61 P-4 Rectangle Silver 3,00m: 32 pcs
ATC SB92/61 P-4 Rectangle Silver 2,40m: 8 pcs
ATC SB92/61 P-4 Rectangle Silver 2,00m: 4 pcs
ATC SB92/61 P-4 Rectangle Silver 1,50m: 2 pcs
ATC SB92/61 P-4 Rectangle Silver 0,50m: 2 pcs
ATC SB92/61 P-4 Pins: 150 pcs
ATC SB92/61 P-4 R Clips: 150 pcs

MISC.
Sling Steel 20kN 14mm 10,00m: 12 pcs
Sling Steel 30kN 16mm 24,00m: 4 pcs
Sling Steel 30kN 16mm 2,00m: 4 pcs
Chainclutch 20kN 2,00m: 16 pcs
Turnbuckle 35kN: 16 pcs
Roundsling Steel 20kN black 3,0m: 20 pcs
Shackle 5/8 3.250kg :10 pcs
