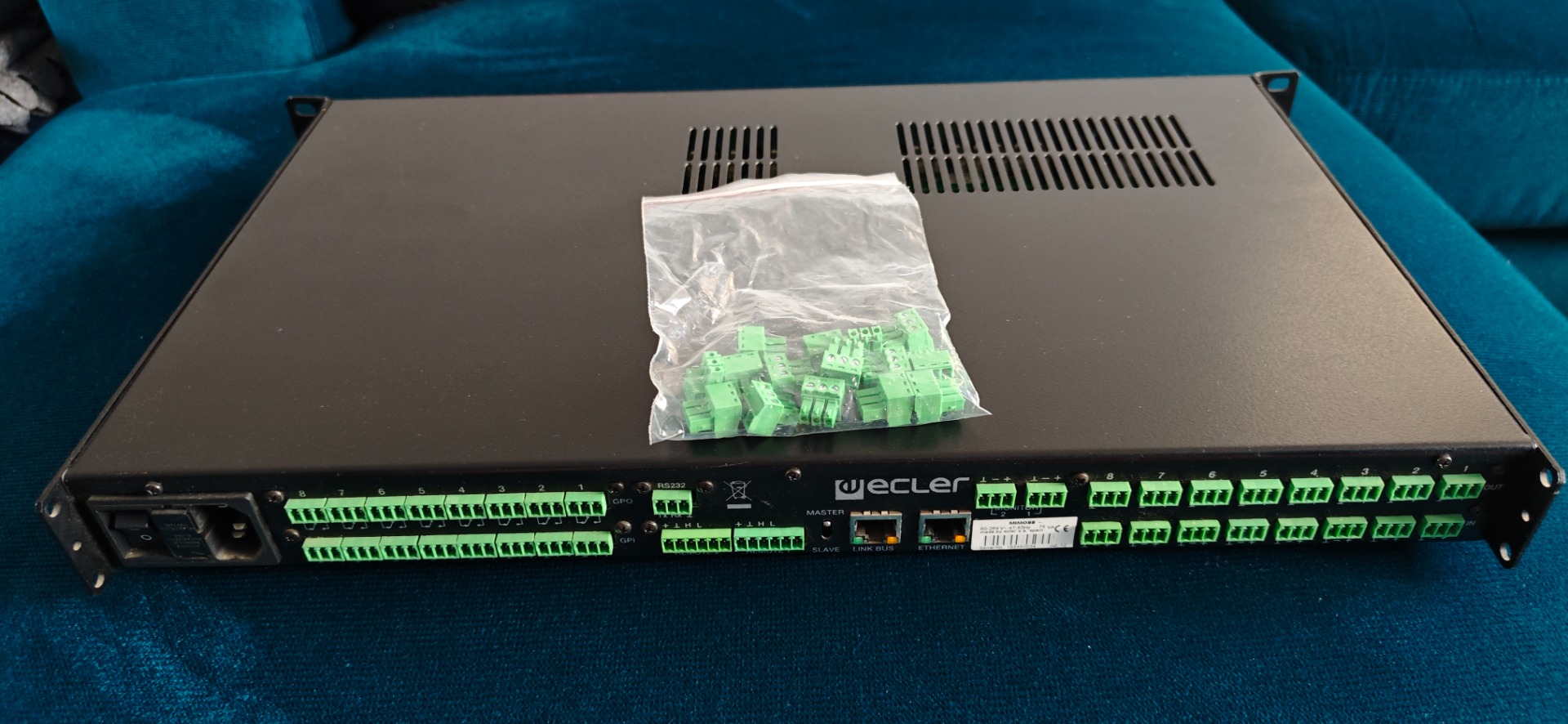

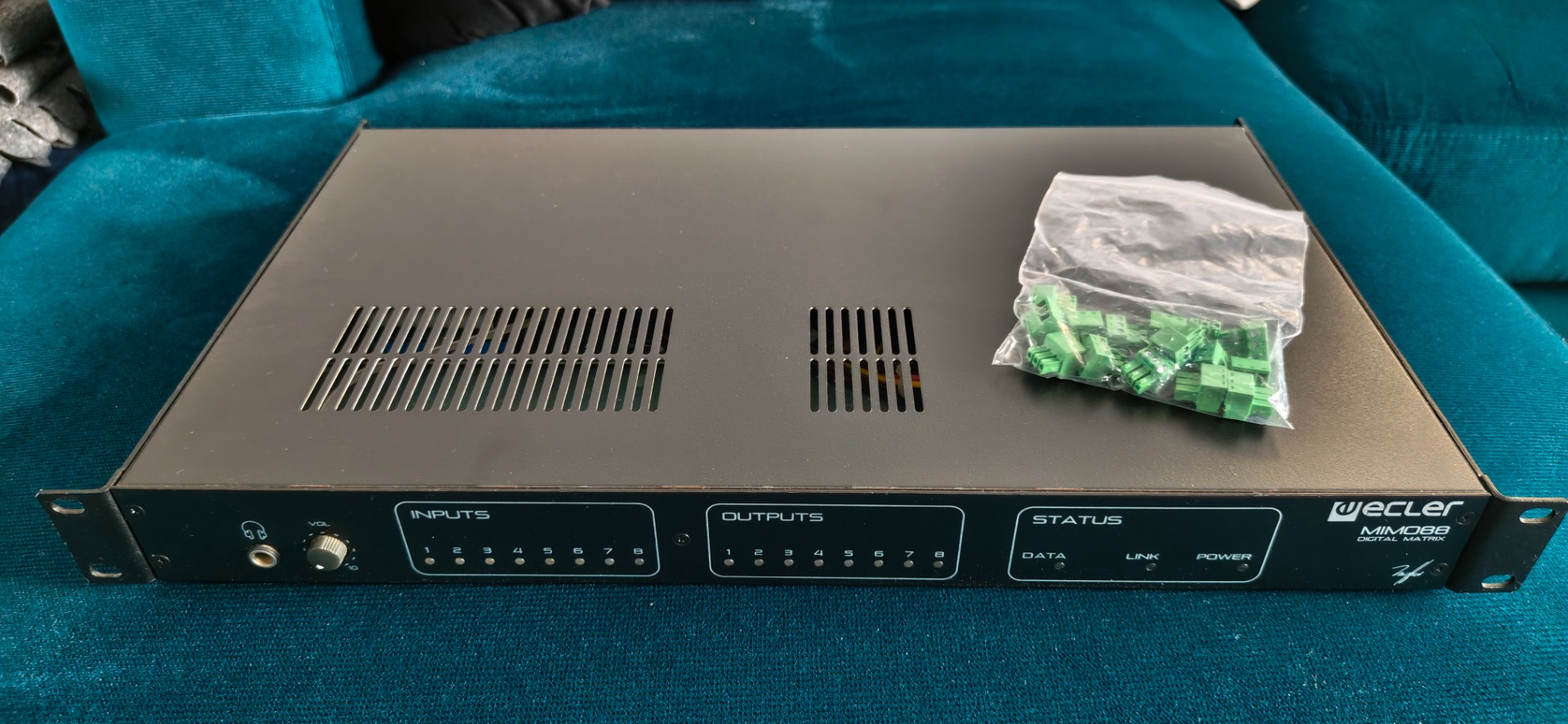

Ecler MIMO88

Description
MIMO88 is an 8 in / 8 out digital audio matrix, fully programmable and linkable to a second unit to become a 16x16 matrix, with real routing from any input to any output.

Features
Expandable to 16 inputs / 16 outputs to become a real 16 x 16 matrix
Fully programmable and controllable via EclerNet software
UCP (User Control Panels) remote control system, compatible with WPNETTOUCH and third-party devices, such as computers, tablets, smartphones, etc.
TP-NET protocol compatible, for third-party control systems integration
DSP processing: signal generator, delays, full parametric EQ filters at inputs and outputs, inputs noise gate, level, mute, phase, vu-meters, outputs compressor / limiter,ducking (priority & overriding), virtual and physical paging stations management,automatic mixer function, presets save & recovery, scheduled events triggering, etc.
FREQUENCY SHIFTER function to avoid acoustic feedback (Larssen Effect), available for each INPUT channel
WPNET4KV and WPNET8K compatible control panels (using specific retro-compatible Firmware).

The device is fully functional and tested.
The RTC backup battery in the DSP was replaced.

This is a private sale. I am not a business entity.Only personal collection is available, but I can ship it at the buyer's expense upon agreement.
