Gesucht
Preis: 3 500,00 € netto excl.19% MwSt.
4 165,00 € brutto incl. 19% MwSt.
Pro Set Verhandlungsbasis
Verfügbare Anzahl 1
Erstellt: 29.06.2026 15:19
Zustand:
Gebraucht
4 165,00 € brutto incl. 19% MwSt.
Pro Set Verhandlungsbasis
Verfügbare Anzahl 1
Erstellt: 29.06.2026 15:19
Zustand:
Gebraucht
Technical specifications
Height: 290 mm
Width: 290 mm
Main Tube: 50 x 2 mm
Braces: 20 x 2 mm
Weight: ~6 kg/m
Pin Position: Diagonal
Material: EN AW-6082 T6
Connection: CS1 - CON
- TüV approved
- Also available in any non-standard length and shape
- Tolerance free conical connector system
- FD34 is also available as a Tower Truss

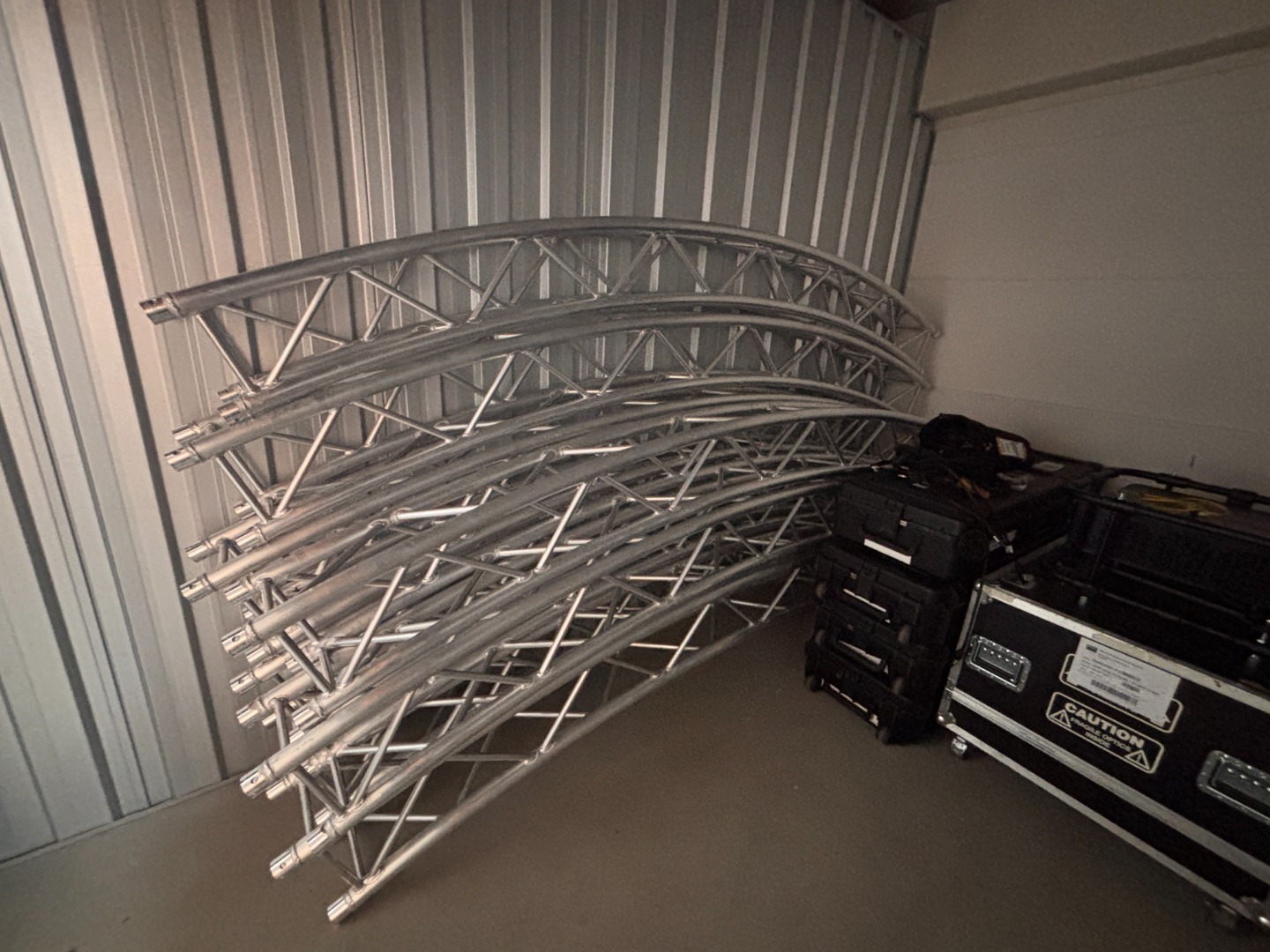

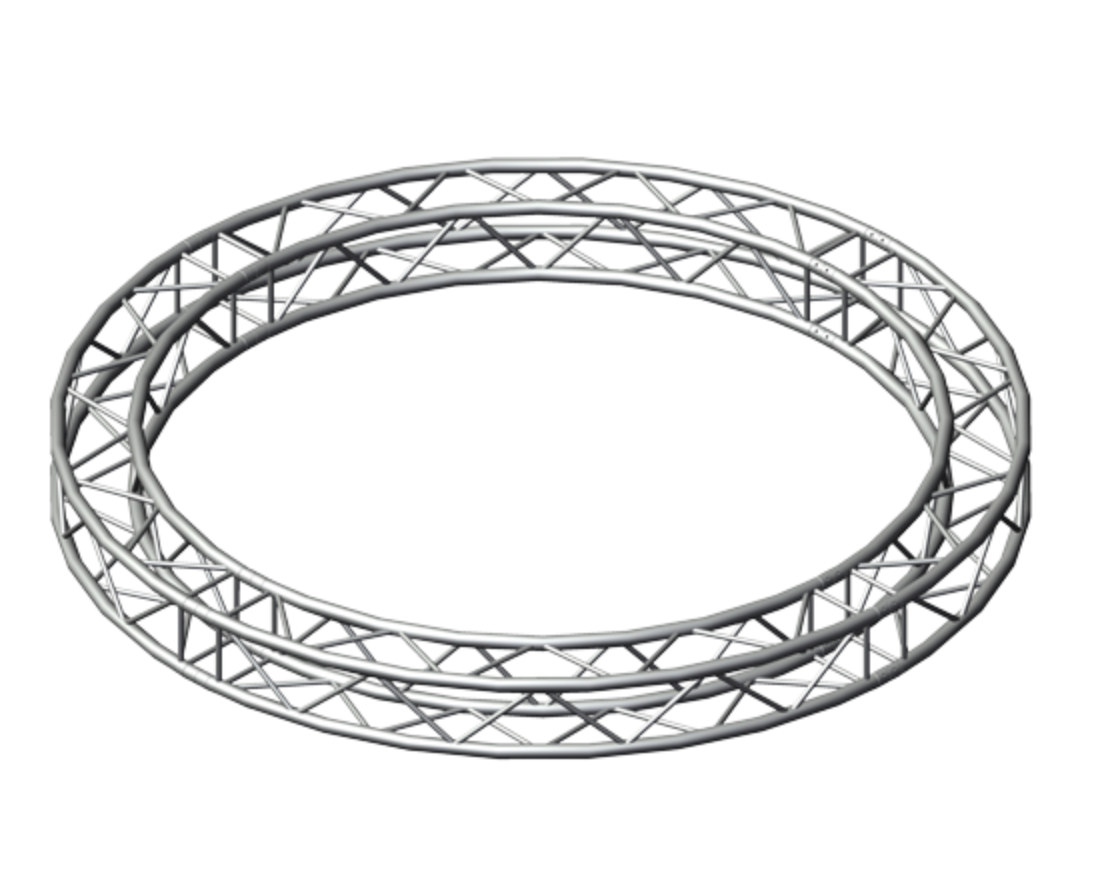

Eurotruss FD34 Circle D=9mtr (8 parts)
Art.nr 401004036Art.nr leverantör: FD34-C0900P8
FD34 straight elements lend themselves to use as span exposed to bending stress resistant span up to 16m or as standard tower element. FD34 using the 2mm wall thickness assures durability and strength.
Designed for high-frequency usage or installations, which demands higher loading. Ideal trussing system for rental, touring and exhibition companies.
Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).
Height: 290 mm
Width: 290 mm
Main Tube: 50 x 2 mm
Braces: 20 x 2 mm
Weight: ~6 kg/m
Pin Position: Diagonal
Material: EN AW-6082 T6
Connection: CS1 - CON
- TüV approved
- Also available in any non-standard length and shape
- Tolerance free conical connector system
- FD34 is also available as a Tower Truss
Eurotruss FD34 Circle D=9mtr (8 parts)
Art.nr 401004036Art.nr leverantör: FD34-C0900P8
FD34 straight elements lend themselves to use as span exposed to bending stress resistant span up to 16m or as standard tower element. FD34 using the 2mm wall thickness assures durability and strength.
Designed for high-frequency usage or installations, which demands higher loading. Ideal trussing system for rental, touring and exhibition companies.
Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).
