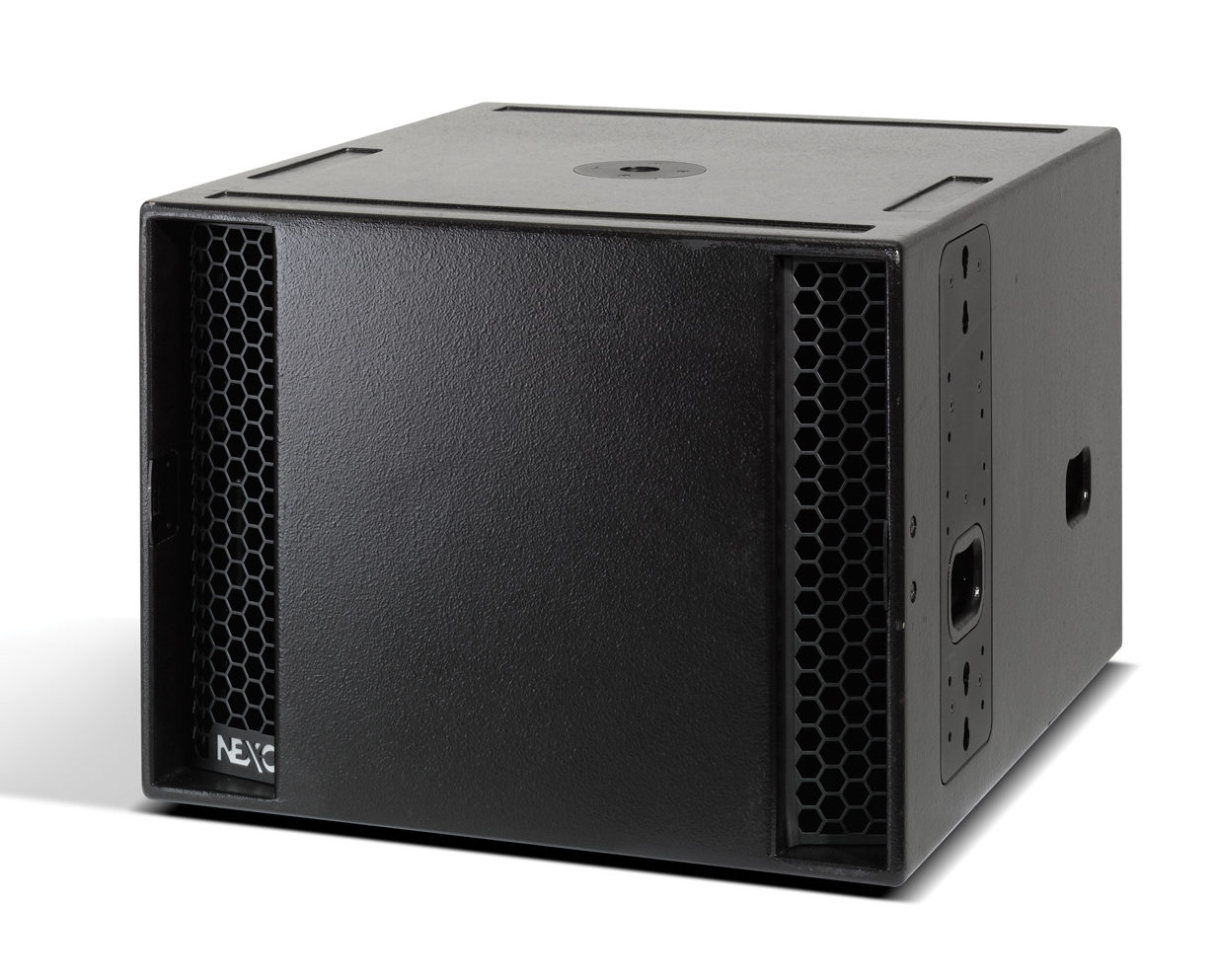

Nexo LS18 SUBWOOFER LS18 SUBWOOFER

Fotos erhältlich auf Anfrage
Incl. Transportbag and wheels

The LS18 Sub-bass cabinet brings new versatility to NEXO GEO S12 line array systems and PS Series cabinets, delivering high SPL at a relatively low cost. Light and easy-to-handle, the LS18 uses a single 18″ long excursion driver and is compatible with all GEO S12 accessories, so it can fly with the S1230 and S1210 line array modules, or anchor a ground stack of S12 cabinets. With a steel stand fitting on top of the cabinet, the LS18 also allows for pole mounting of GEO S12 cabinets or NEXO PS15-R2 full-range speakers. LS18 can be flown in tandem with PS15s, which will be of particular interest to the installation sector.


Specifications:

High power system (137-140dB peak SPL @ 1m)
Frequency response 30Hz-130Hz
1 x 18" 4" voice coil long excursion 8Ω driver
Light and easy to handle
Frequency Response [a]: 35 Hz - 120 Hz ±3dB
Usable Range @-6dB [a]: 32Hz - 130 Hz
Sensitivity 1W @ 1m [b]: 107 dB SPL Nominal
Nominal Peak SPL @ 1m [b]: 137 to 140 dB Peak
Nominal Impedance: 8 Ω
Crossover Frequencies: 60 Hz – 85 Hz - 120 Hz Active
Connectors: 2 x NL4MP Speakon 4 pole
Construction: Baltic Birch Ply & structured black coating
Internal Steel Stand Fitting on Top (35mm) allows pole mounting for PS15 or Geo S12

Amplified Controller
NXAMP4x1: 2 x LS18 in parallel on 2 bridged channels
NXAMP4x4: 2 x LS18 on 1 channel
