Nexo GEO S1210 FULLRANGE ARRAY (10° VERTICAL) GEO S1210 FULLRANGE ARRAY (10° VERTICAL)

Inklusive Case
Fotos erhältlich auf Nachfrage

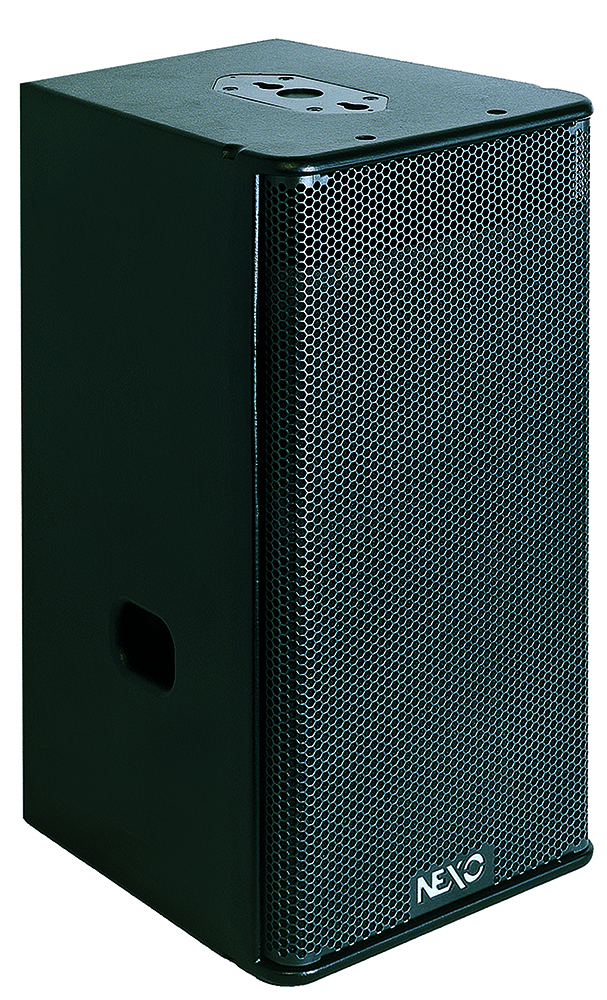

The compact, 2-way GEO S1210 is a scalable loudspeaker module that displays exceptional MF-LF output (103dB SPL nominal sensitivity -1W @1m) from a single12” loudspeaker and NEXO’s proprietary Directivity Phase Device (DPD). A very narrow-Q (10°) device in single-source mode, S1210’s unique Hyperboloid Reflective Wavesource (HRW) allows coupled S1210/1230s to radiate as coherent, wavefronts, yeilding precise pattern control in vertical or horizontal arrays. S12 arrays display traditional “tight-pack” pattern control in the non-coupled plane.

Specifications:

Coherent Wave Propagation from NEXO’s Advanced GEO Hyperbolic Wavesource
Advanced Constant Velocity Profile Output from 5.1° Wavefront Curvature
Integral Rigging System with Angles from 0.20° to 10°
NS-1 Configurable, EtherSoundTM (Network)
Frequency response [a]: 53Hz – 19kHz ±3dB
Usable range @-6dB [a]: 50Hz – 20kHz
Sensitivity: 103dB SPL nominal
Peak SPL @ 1m [b]: Configuration dependent [d]
Dispersion [c]: Coupling Plane: Configuration dependent [d] Non-Coupling Plane: Configurable 80° / 120°
Crossover frequency: LF- HF: 1.1kHz Passive or Active (internally configurable)
Nominal impedance: 16Ω
Recommended amplifiers

3x GEO S1210 in parallel
HF: 875 to 1550W into 4Ω, LF: 1750 to 3100W into 4Ω
4x GEO S1210 in parallel
HF: 1000 to 1800W into 4Ω, LF: 2000 to 3600W into 4Ω
6x GEO S1210 in parallel
HF: 1650 to 3000W into 2Ω, LF: 3300 to 6000W into 2Ω
