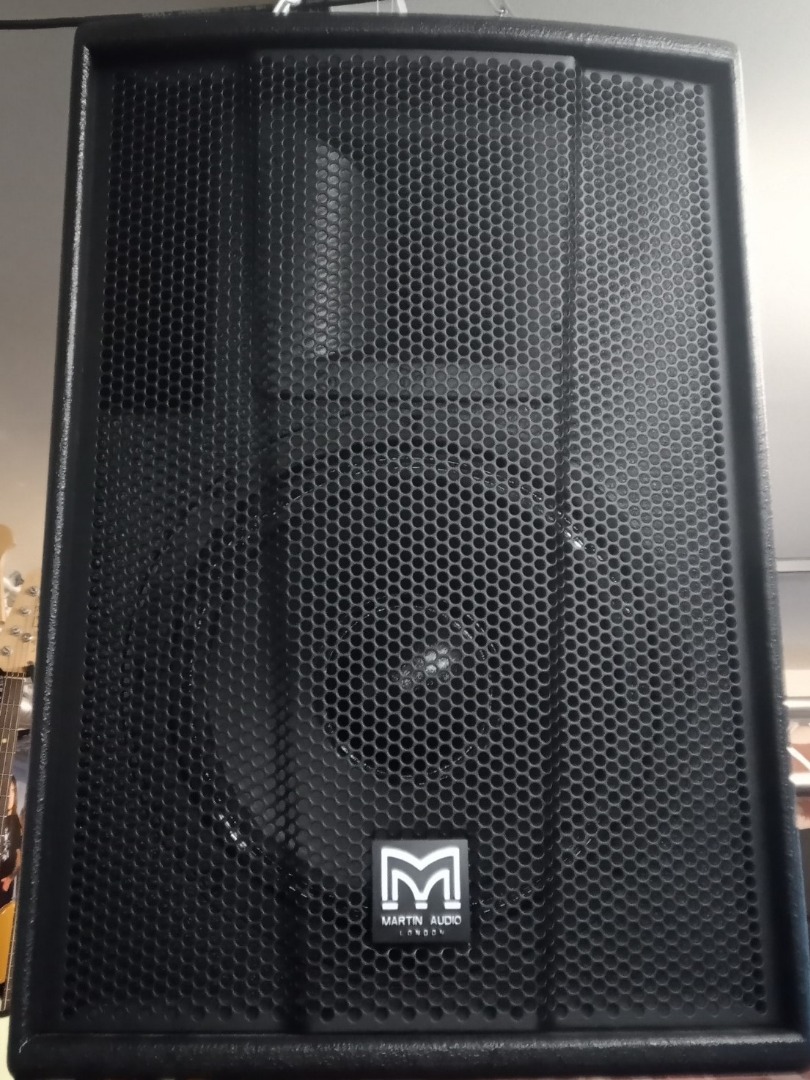

Martin Audio F10+ passive 2 way Portable Loudspeaker with Yoke

With Flying Yoke HTKF10Y

The Blackline F10+ is a versatile, two-way passive system, designed to provide exceptional sound reinforcement and stage monitoring from a very compact enclosure. It features a powerful 10” (250mm) low frequency driver and a 1” (25mm) HF compression driver mounted on a constant directivity 90˚ x 50˚ horn. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation. A demodulating ring fitted to the LF driver reduces distortion and improves the performance at the upper end of the LF driver’s range at high levels. Additionally, the directivity of the LF driver has been matched to the HF horn by a combination of optimisation of the water-resistant LF cone profile and improved crossover design.

TYPE Compact, two-way passive

FREQUENCY RESPONSE (5) 65Hz-20kHz ± 3dB-10dB @ 56Hz

DRIVERS 10” (250mm)/2.5” (63.5mm) voice coil LF driver 1” (25mm) exit HF compression driver

RATED POWER (2) 300W AES, 1200W peak

RECOMMENDED AMPLIFIER MA2.0

SENSITIVITY (6) 96dB

MAXIMUM SPL (9) 121dB continuous, 127dB peak

NOMINAL IMPEDANCE 8 Ohm

DISPERSION (-6dB) 90˚ horizontal, 50˚ vertical

CROSSOVER 2.5 kHz passive
