Martin Audio W8LMD Demo downfill for W8LM Line Array Systems

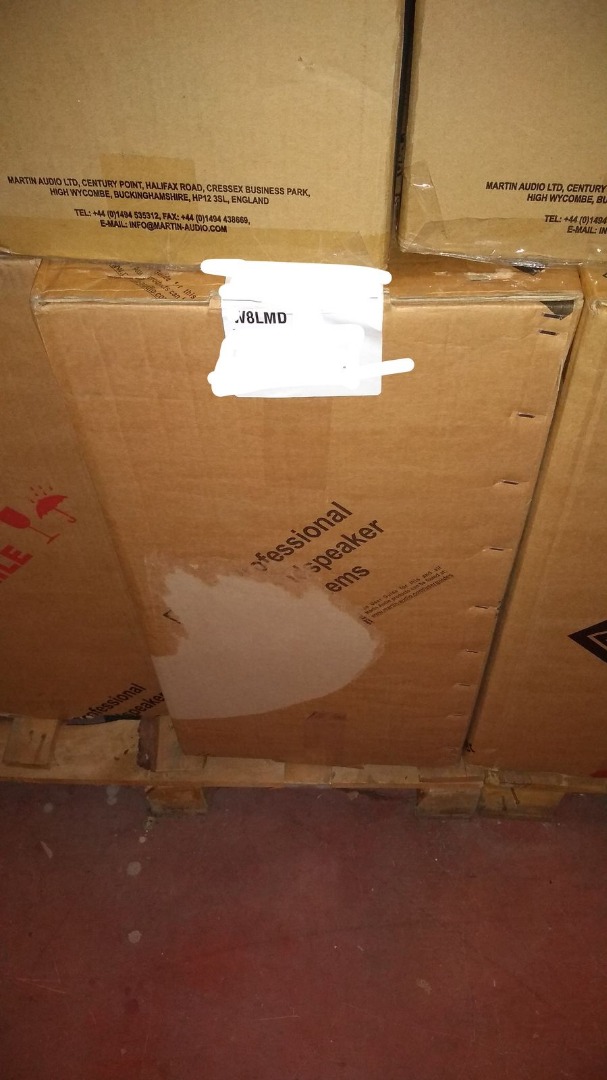

B-stock from Martin Audio Demo

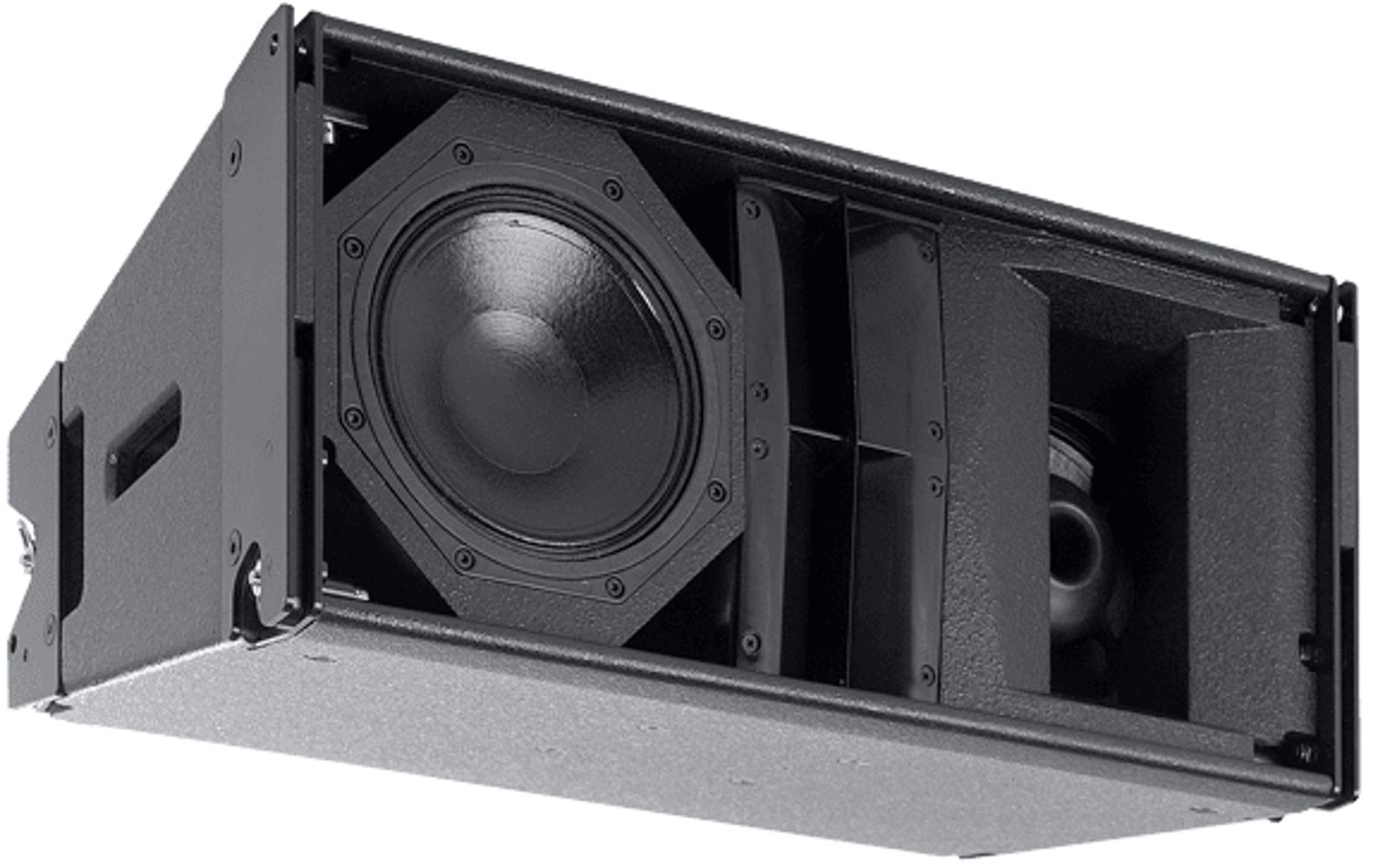

The Martin Audio W8LMD is a mini, wide-dispersion vertically arrayable enclosure. It can be used individually and in small quantities for short to medium throw applications (up to 30 metres) as well as a downfill element for the W8LM.



Stand alone vertically arrayable enclosure
Line array downfill element
Consistent 120º (-6dB) horizontal mid and HF pattern control
20º (-6dB) vertical dispersion
Tripod mountable singularly or in pairs
Amplitude shading switch
Passive or Bi-Amp format
Compatible with WMX, WLX, WSXa, WS2A & WS218 subwoofers
FREQUENCY RESPONSE60Hz-18kHz ± 3dBDRIVERS: LF + MF Section

8" (200mm)/2" (50mm) voice coil, reflex-loaded direct radiator
8" (200mm)/2" (50mm) voice coil, neodymium driver, front horn loaded, rear reflex loaded
DRIVERS: HF Section2 x 1" (25mm) exit HF compression drivers, horn loadedRATED POWER (1)

LF + MF: 400W AES, 1600W peak
HF: 75W AES, 300W peak
FR: 400W AES, 1600W peak
SENSITIVITY (2)

LF + MF: 99dB
HF: 104dB
FR: 98dB rising to 103dB at HF
MAXIMUM SPL (3)

LF + MF: 125dB continuous, 131dB peak
HF: 123dB continuous, 129dB peak
FR: 124dB continuous, 130dB peak
NOMINAL IMPEDANCE

LF + MF: 12 ohms
HF: 12 ohms
FR: 12 ohms
DISPERSION (-6dB)

120º horizontal (down to 750Hz)
20º vertical
140º horizontal (down to 650Hz) @ -10dB
