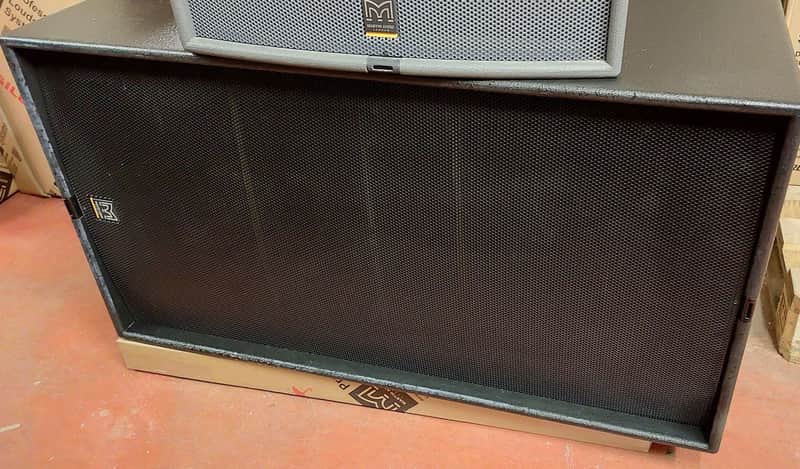

The powerful WSX folded horn subwoofer is designed to complement Wavefront Series W8C touring systems to provide deep bass with maximum efficiency, speed and impact. Its classic Martin ‘S’ shaped folded horn is over 7 feet (2.1m) long and couples a powerful 18” (460mm) long excursion driver to the airload with a modified hyperbolic expansion law.

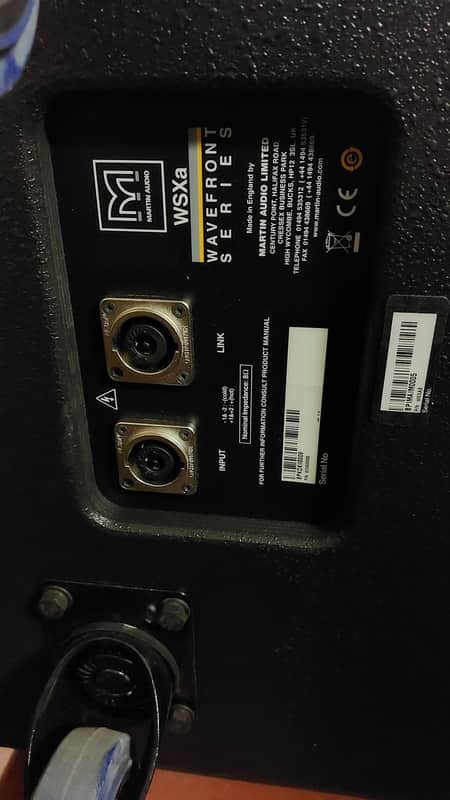

4.2 Specifications Freq response: LF limit: Rated Power: Sensitivity: Maximum SPL: Impedance: Crossover Freq: 38-150Hz +/- 3dB (half space)-10dB @ 28Hz 600W into 8 ohms, 2400W peak 105dB (half space with band limited pink noise) 132dB continuous, 138dB peak (half space with band limited pink noise) 8 ohms nominal 150Hz or below Crossover System: Martin Audio DX1 Loudspeaker Management System, MX4 or MX5. (See operating instructions) Connectors: Dimensions: Weight: 2 x Neutrik NL8 (W) 572mm x (H) 1066mm x (D incl wheels) 1065mm (W) 22.5ins x (H) 41.9ins x (D incl wheels) 41.9ins 96kg (211 lbs)
