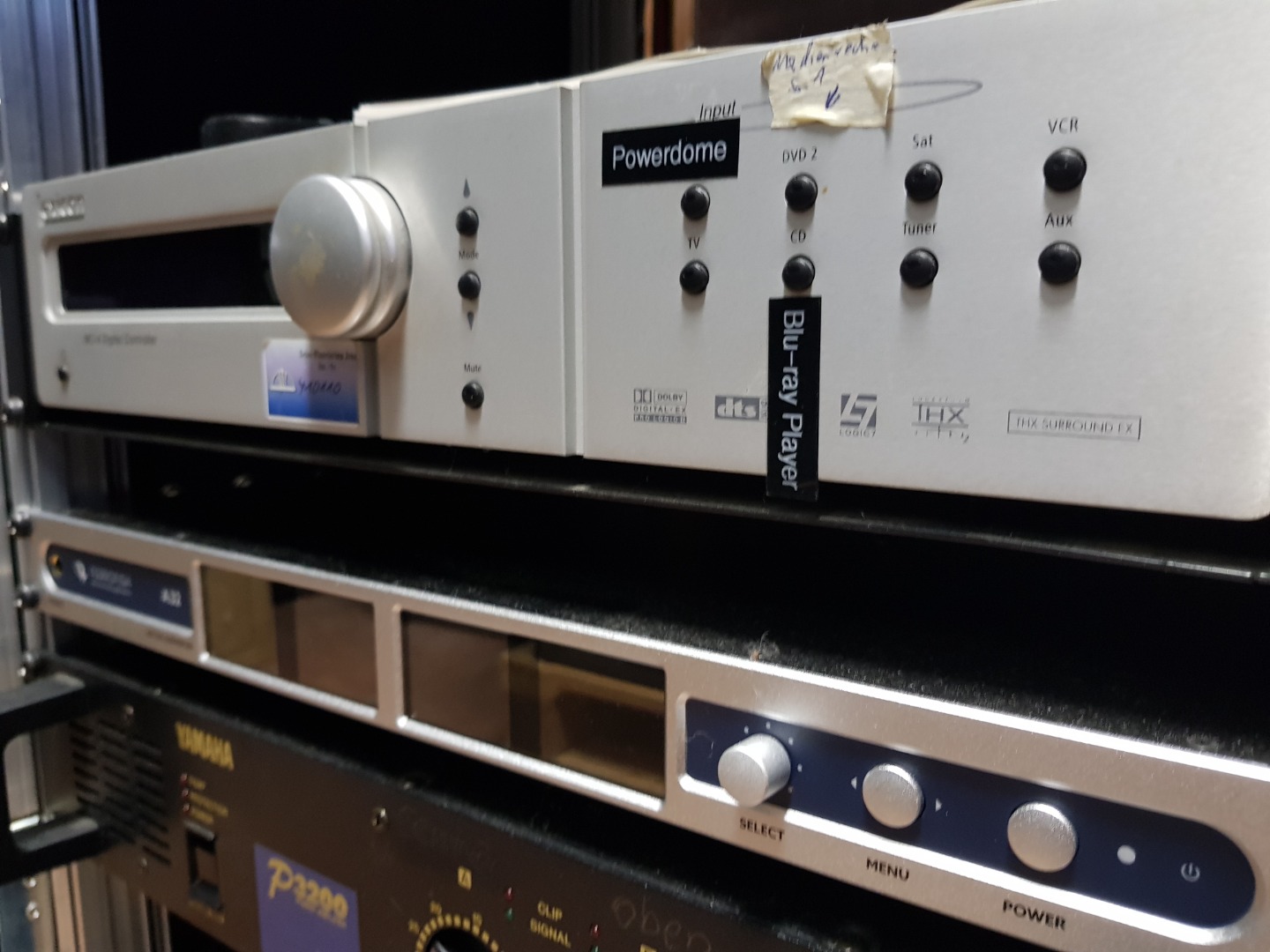

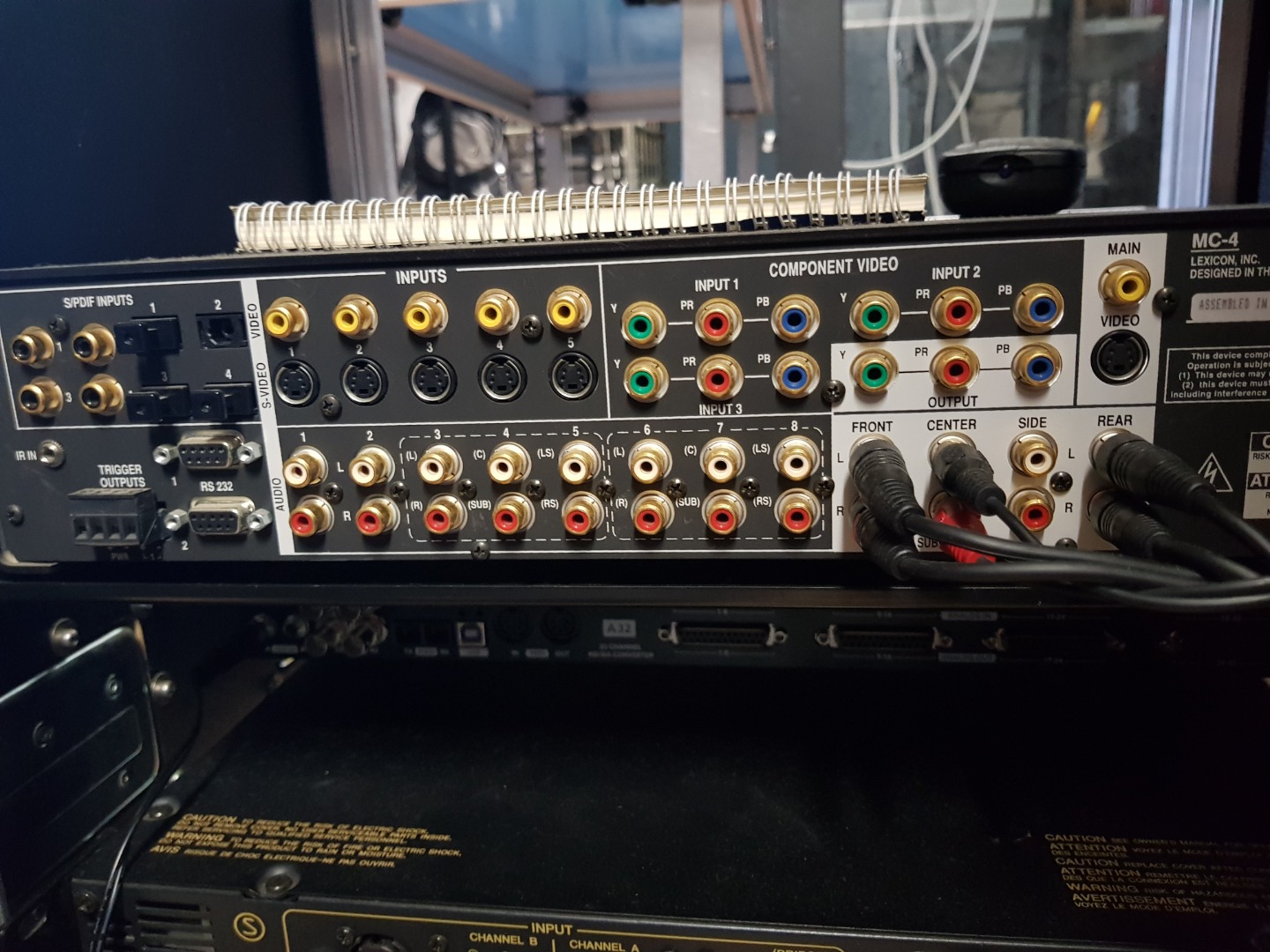

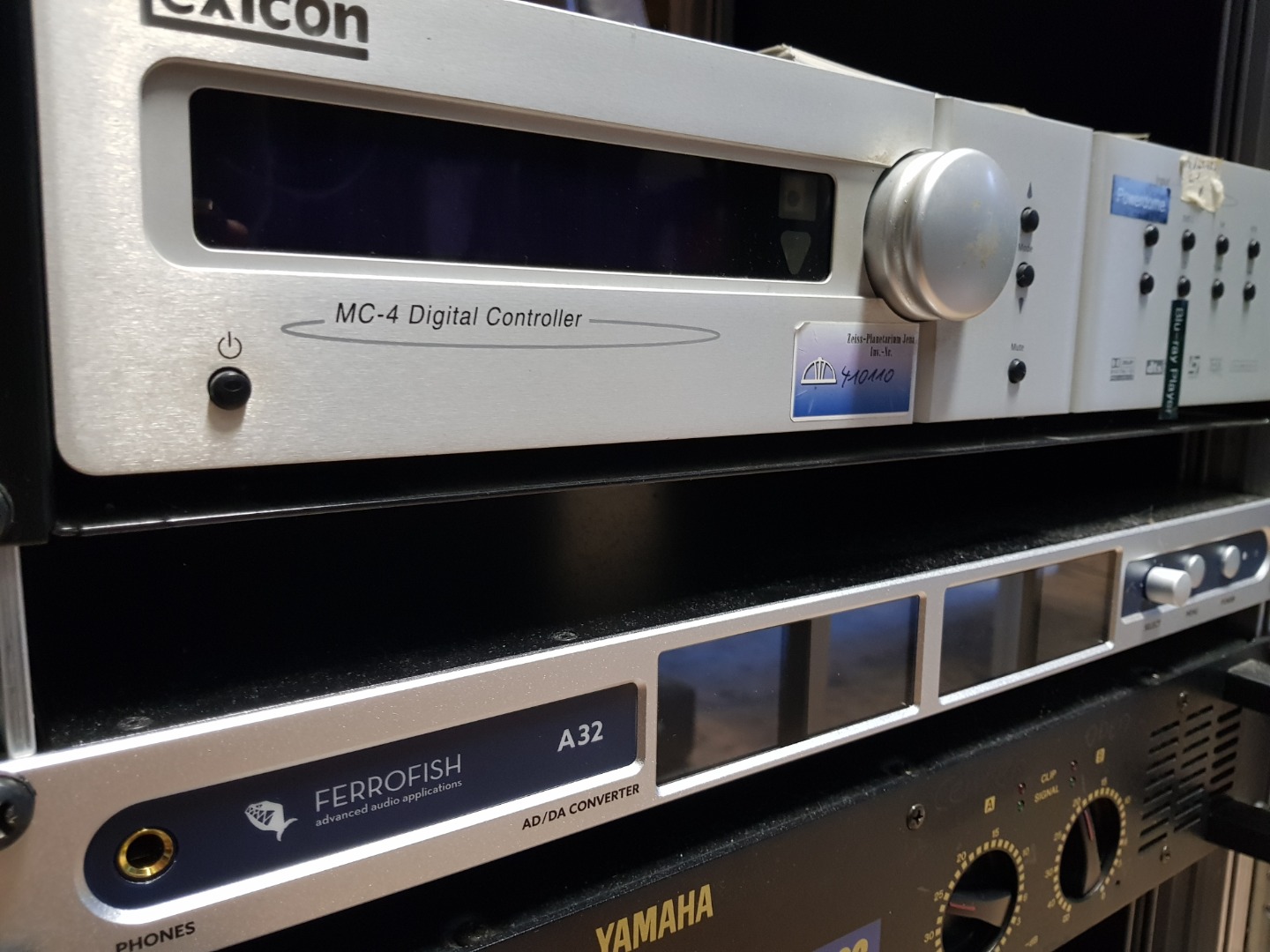

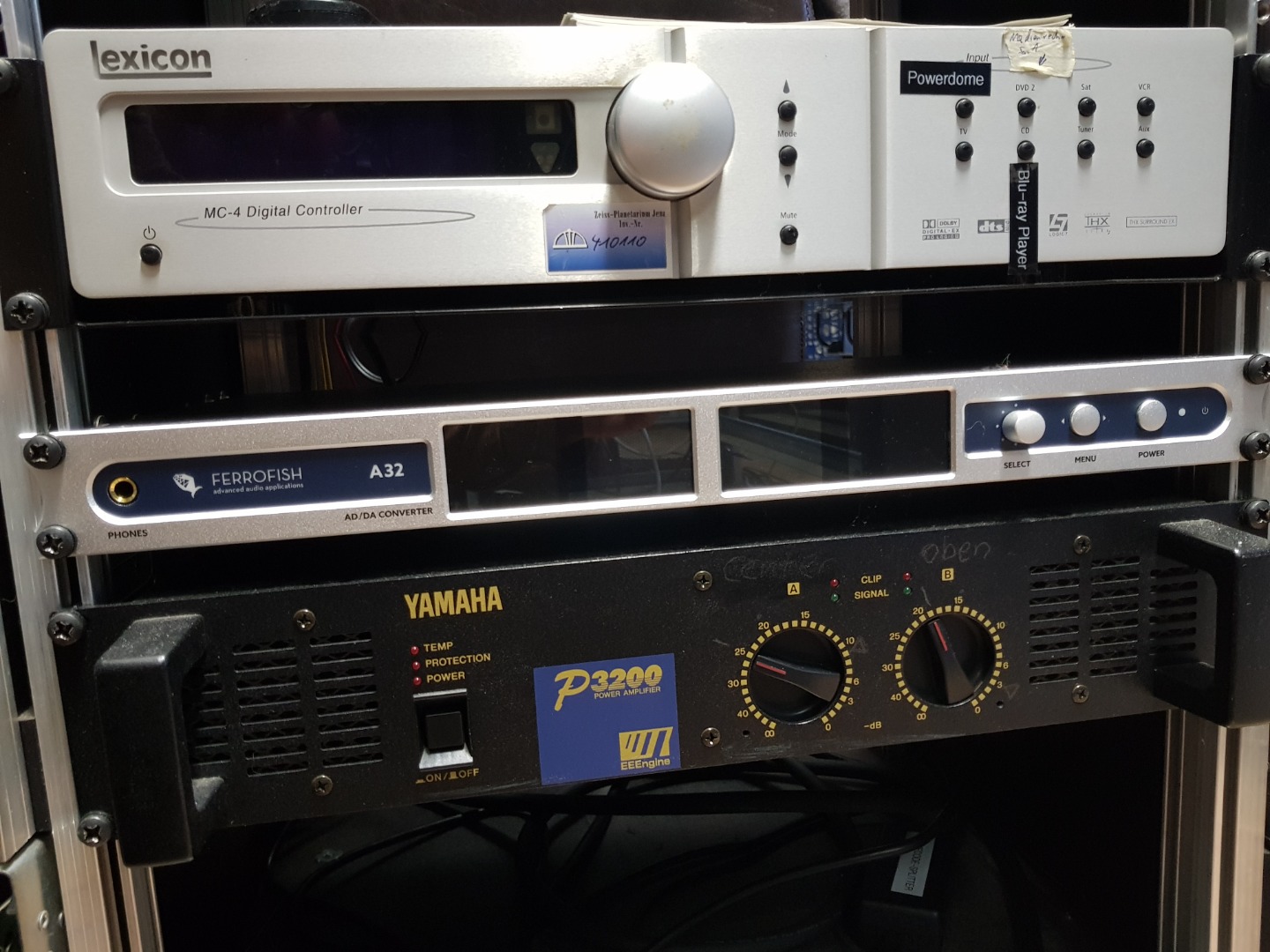

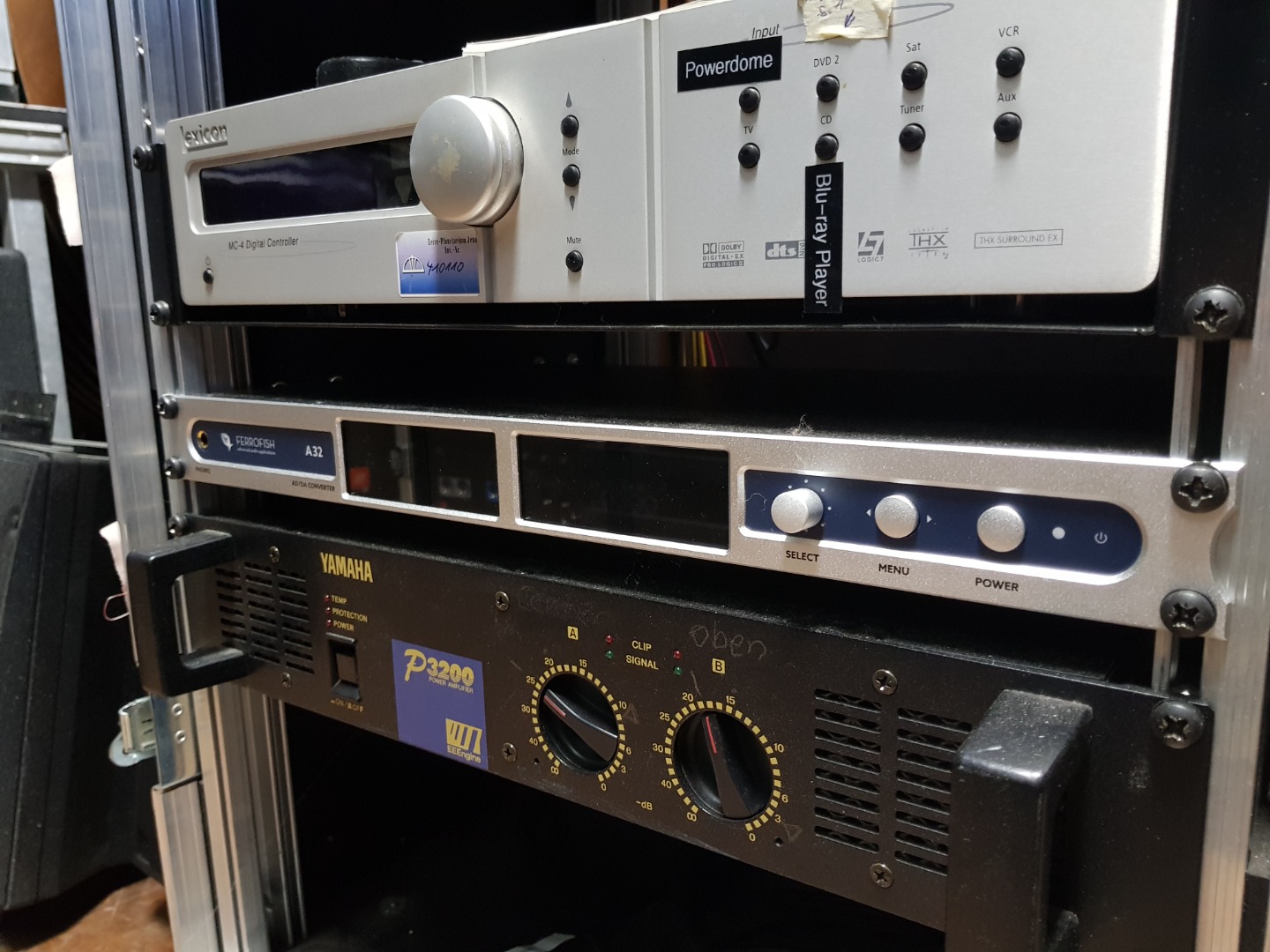

Lexicon MC-4 Digital Controller

digitaler Surround-Audio-Controller für Mehrkanal-Soundsysteme

gebraucht, in working condition vor Ausbau aus der Festinstallation des Zeiss-Planetariums Jena

guter Zustand
erneuter Funktions-Check vor Verkauf.
Abholung vor Ort.

Spezifikationen:
• 8 channels, 8 configurable inputs
• Up to two 5.1-channel analog audio inputs
• Analog bypass available for stereo and 5.1-channel analog audio inputs
• S/PDIF coaxial and S/PDIF optical digital audio inputs
• Automatic switching between analog and digital audio inputs
• 24-bit/192 kHz D/A converters
• Stereo side and rear outputs and a dedicated subwoofer output
• 2 broadcast-quality video switchers
• 3 component video inputs with full HDTV compatibility
• 5 S-video and 5 composite video inputs
• 4 32-bit, floating-point DSP engines
• Separate DSP engine to decode Dolby Digital and DTS signals
• LOGIC7 decoding
• Dolby Digital Surround EX and Dolby Pro Logic II decoding
• DTS 96/24, DTS NEO:6, and DTS-ES (matrix and discrete) decoding
• THX Ultra2 and THX Surround EX decoding
• 2 trigger outputs

Codecs: DD, DD-EX, DPL-II, DTS, DTS-ES, DTS
Neo:6, DTS 96/24, Logic 7
● A/D Conversion: 24/96
● D/A Conversion: 24/192
● MFR: 10 Hz - 20 kHz +0.05dB/-0.1dB
● THD + Noise: < 0.008%
● S/N: 108dB
● Input Sensitivity: 200 mV
● Input Impedance: 100 kOhms
● Output Level: 6 V Maximum
● Output Impedance: 100 kOhms
● Video Inputs: 5 Composite (RCA), 5 S-Video,
and 3 Component Video (RCA)
● Video Outputs: 1 Composite (RCA), 1 S-Video,
and 1 Component Video (RCA)
● Dimensions: 3.8” H x 17.3” W x 14.85” D
