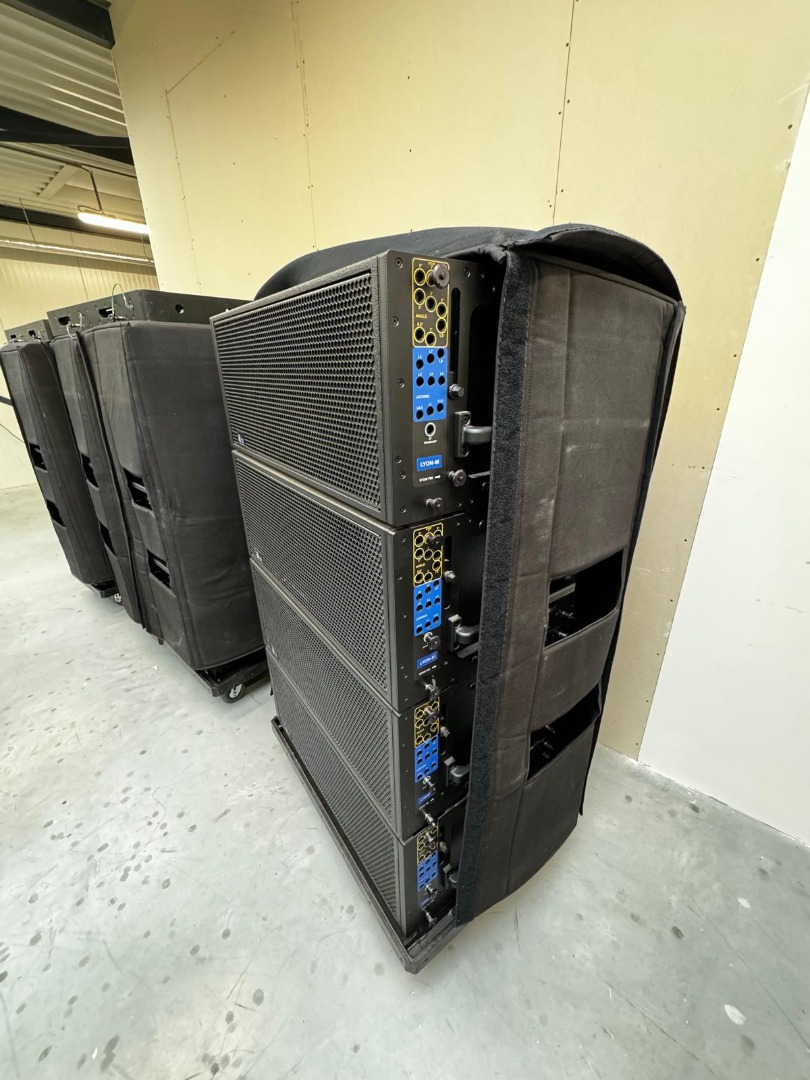

Meyer Sound Lyon M (16x) RMS 5 -pin

The Meyer Sound LYON is a self-powered line array loudspeaker designed for medium to large sound reinforcement systems. It sits between the LEOPARD (compact) and LEO (large format) systems in the Meyer Sound lineup and is widely used in touring, theaters, houses of worship, and corporate events.

Key Specifications
• Type: Self-powered line array loudspeaker
• Frequency range: 55 Hz – 18 kHz (±4 dB)
• Maximum SPL: approx. 134 dB peak
• Amplification: Integrated Class-D amplifier (~3880 W peak)

Driver Configuration
• 2 × 12” low-frequency drivers
• 2 × 7” mid-frequency drivers
• 3 × 3” high-frequency compression drivers

This 3-way design provides high clarity, controlled coverage, and excellent vocal intelligibility, even at high SPL.

Coverage
• Horizontal coverage: 110°
• Vertical coverage: determined by the number of cabinets and array angle

Connections
• Audio: Balanced XLR input and loop output
• Power: PowerCON input and loop output

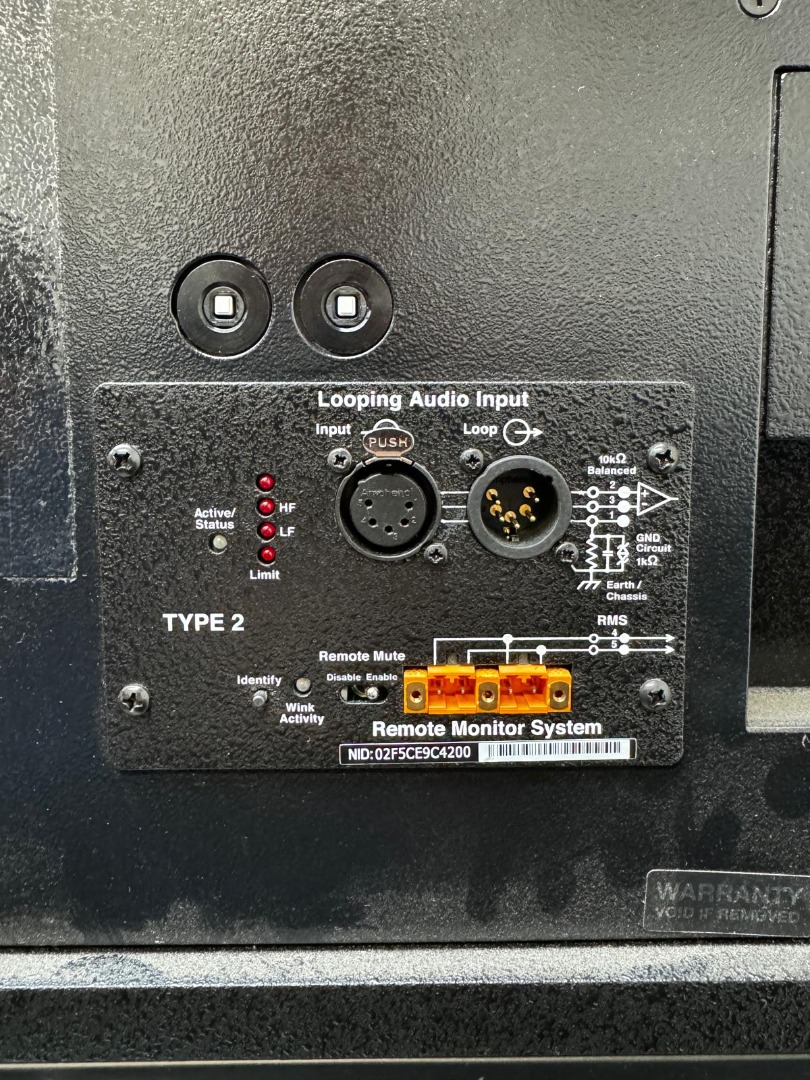

• Monitoring: RMS network (5-pin XLR) for system monitoring and diagnostics

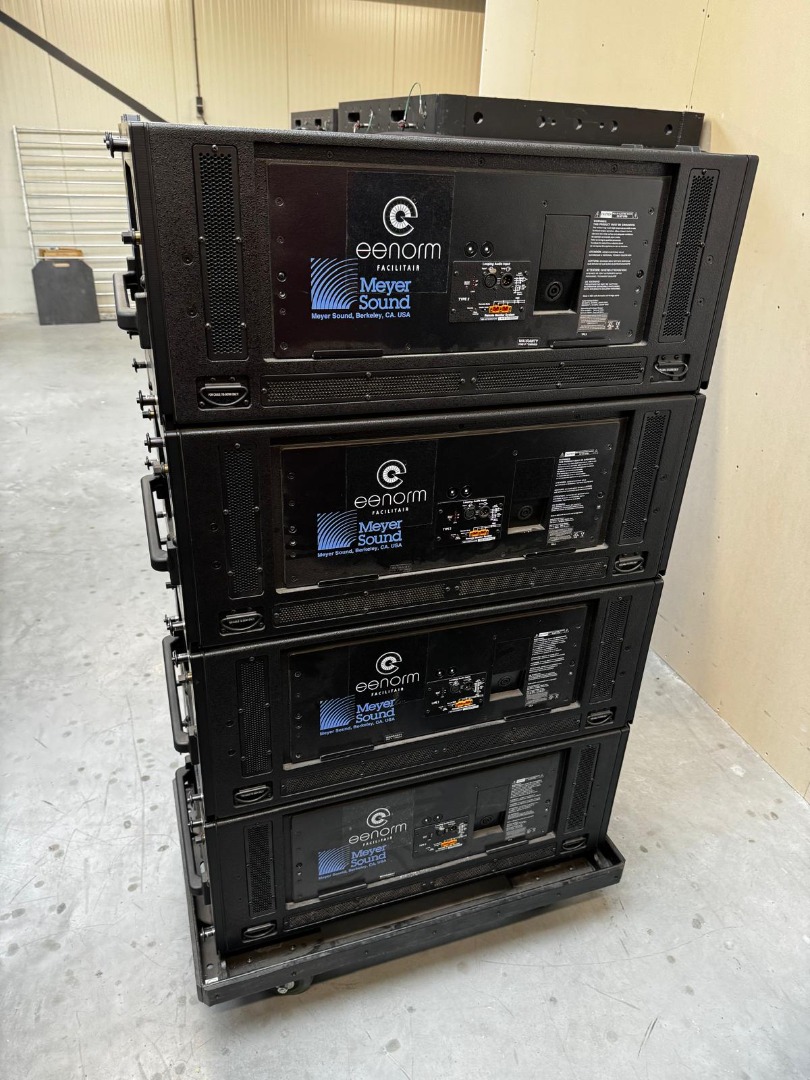

With 4 on a caster
