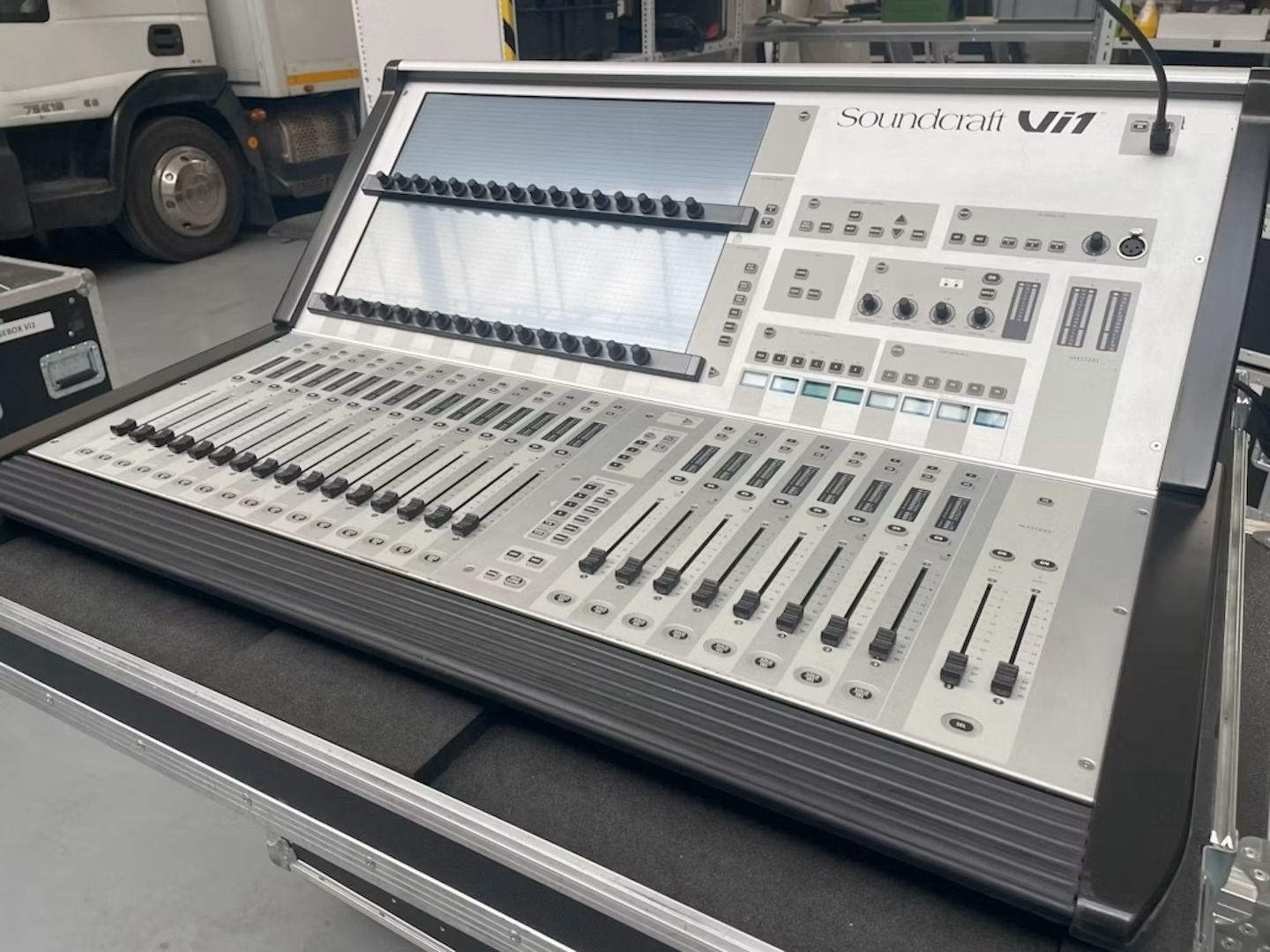

Used in TV studio applications, no touring. Has a new CF system card.
Additional photos available upon request.

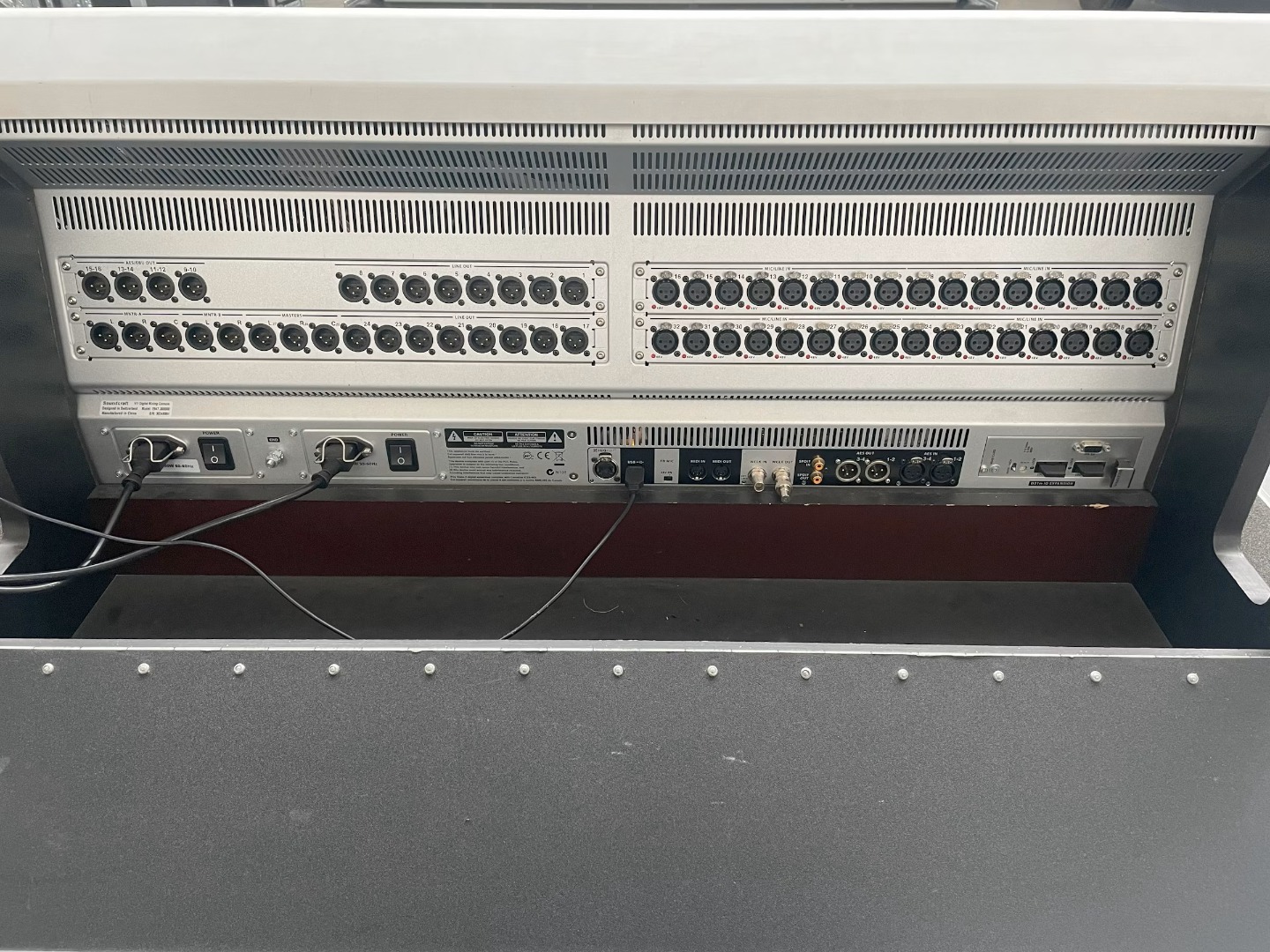

· 32x channels of analogue input
· 6x digital inputs
· 27x analogue outputs
· 4x Stereo FX Returns
· 6x digital outputs in one chassis
· Standard input to mix capacity is 46chs, but by adding a stagebox (compatible with the existing Vi racks), simultaneous channel count increases to 64.
· Up to 8 of the busses can be configured as Matrix mixes, each with up to 16 sources.

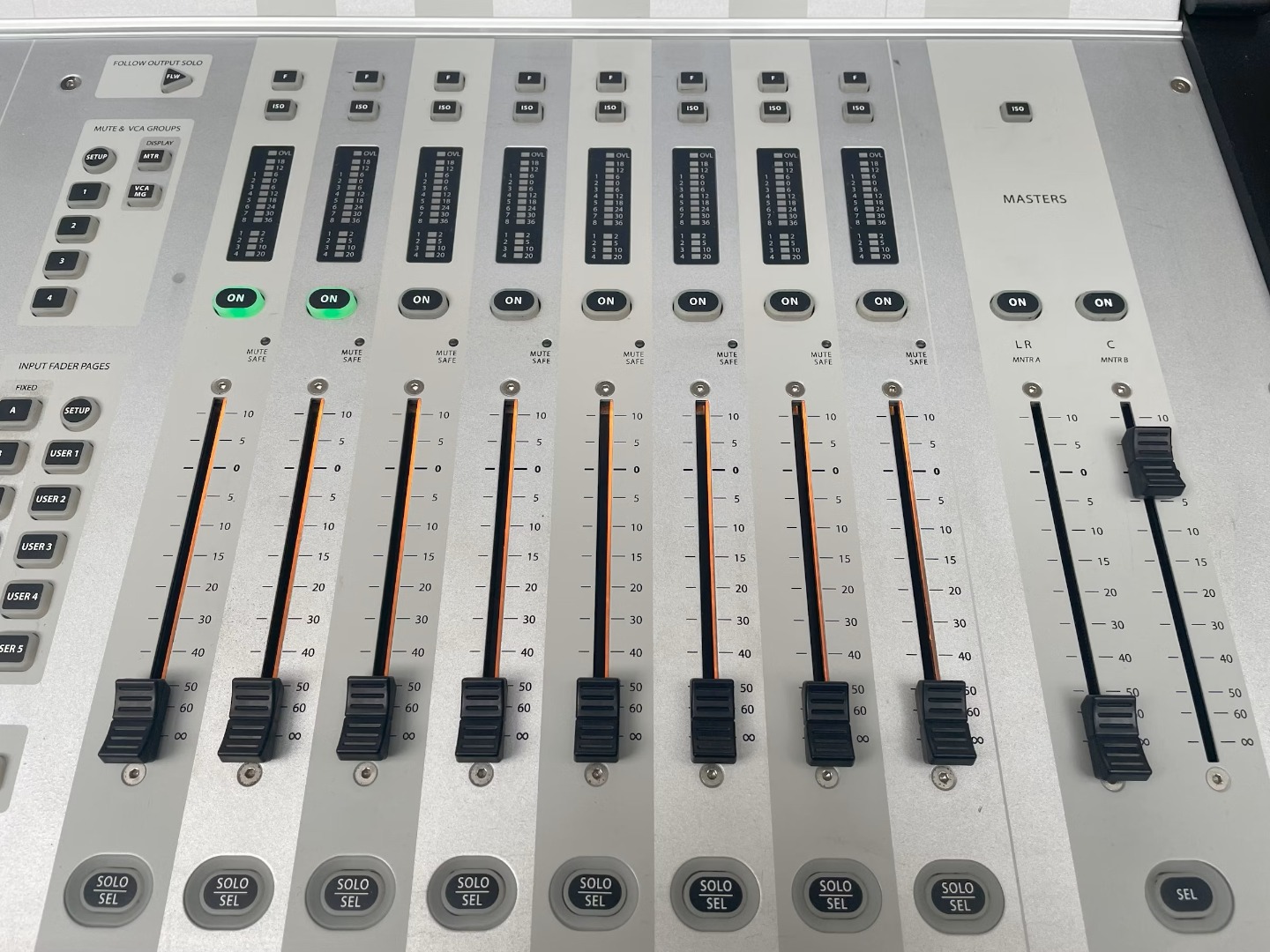

· 16x motorised channel faders with fixed and user-definable layers, 8x output/VCA faders, 2x master faders.
· 4x stereo Lexicon effects engines,
· BSS Audio graphic EQs on all output busses and integral dynamics on all channels
· Latency: Mic Input to Local Line output: < 2ms @48kHz
· DSP Resolution: 40-bit floating point
· Metering: Internal 11-segment LED bargraphs plus 4-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s
· desk is also compatible with Vi2, 4 and 6 show files
· 2 PSU

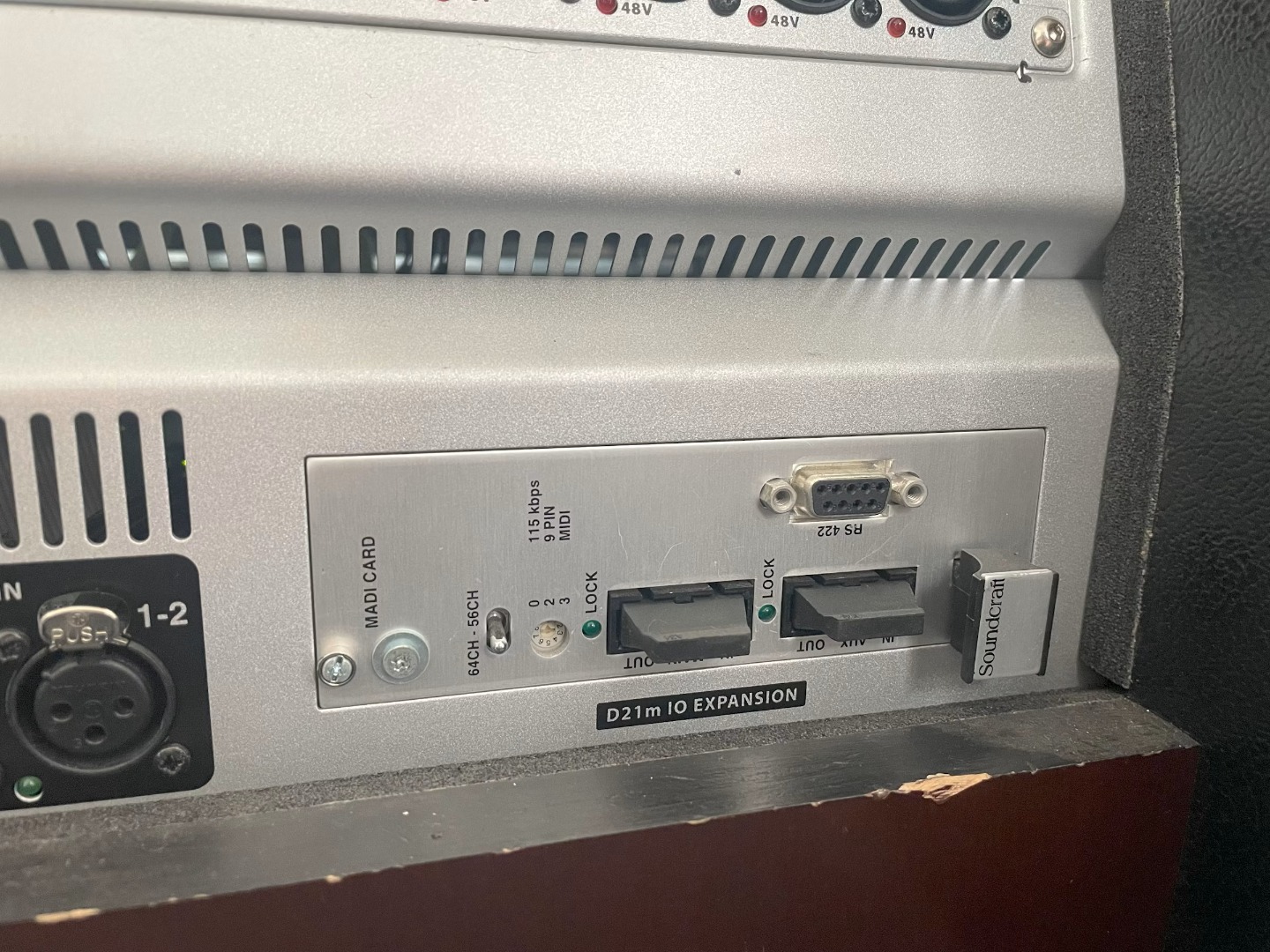

· 1 Optical MADI expansion card
Specs:
BRAND: Soundcraft
USAGE: Television / Broadcast
VOLTAGE: Auto-Switching 120-240V 50-60Hz
CONDITION: Excellent
AGE (YEARS): 10+

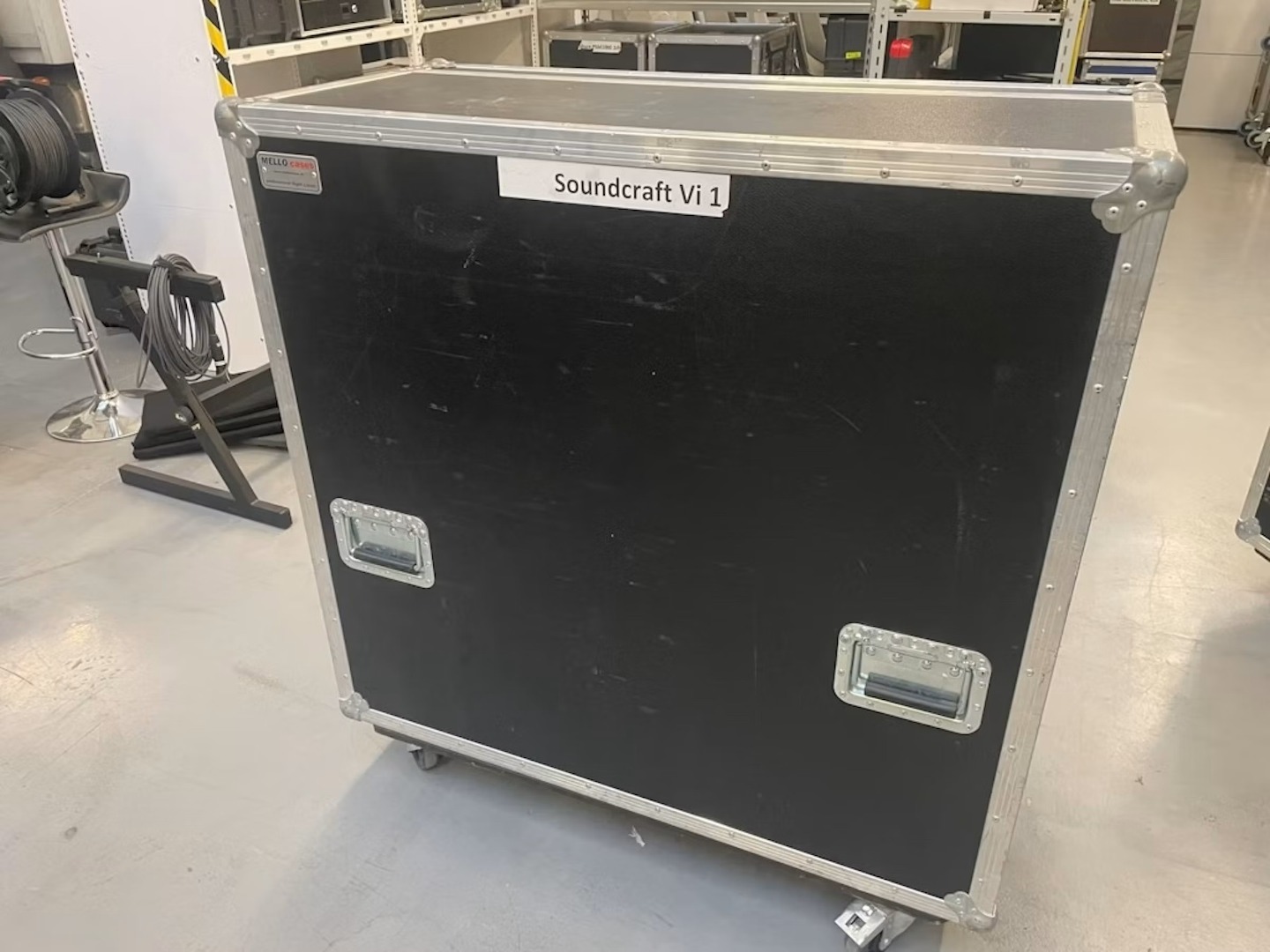

CASE: Custom
ACCESSORIES
