Grass Valley HD Wireless Including LDK-8000 Elite camera

Grass Valley HD Wireless with LDK-8000 Elite Camera

MAKE: Grass Valley
MODEL: HD Wireless
CONDITION: Used

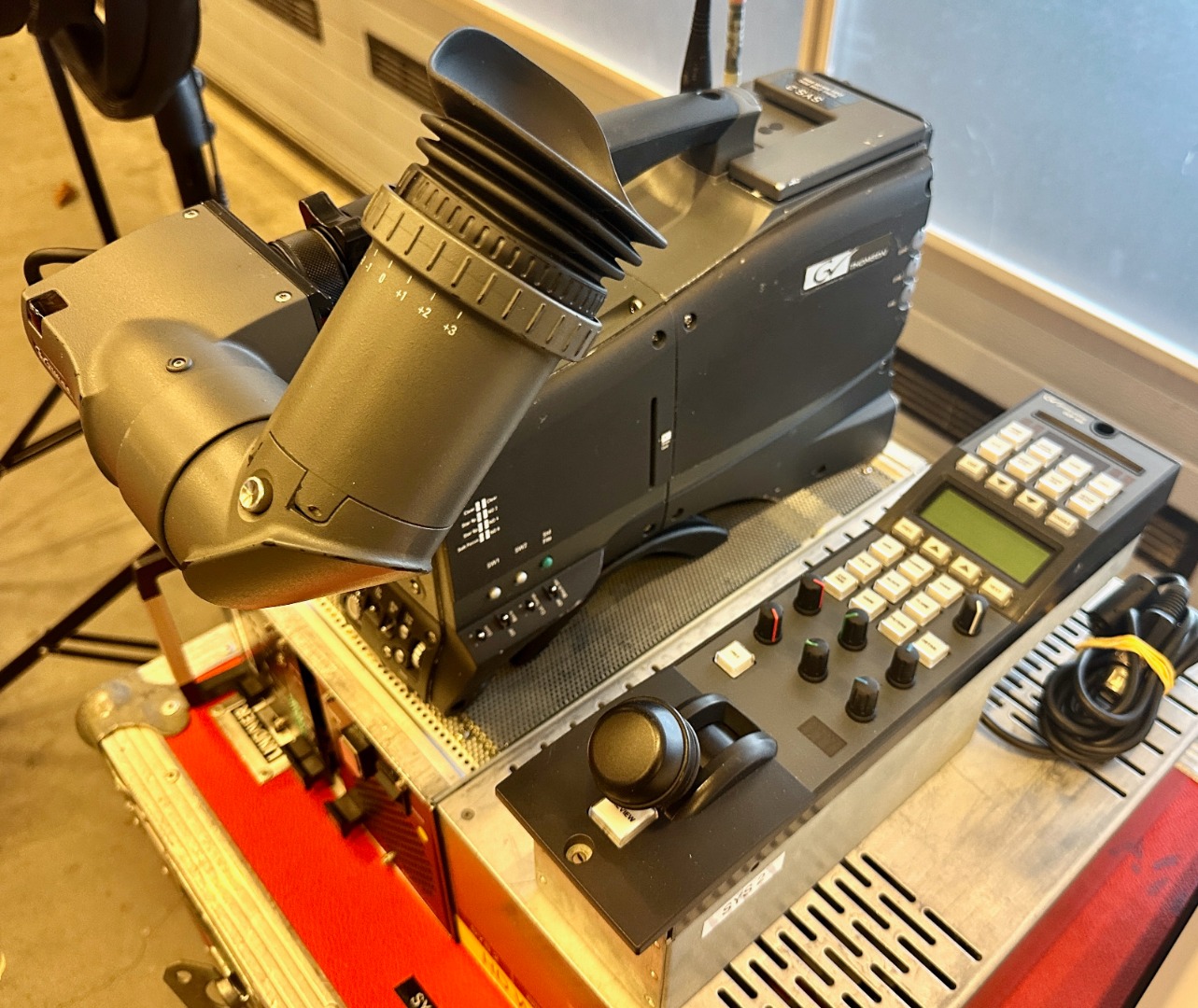

For sale: a fully operational Grass Valley HD Wireless system with an LDK-8000
Elite camera. You can mount a lens of your choice on the camera, and it’s ready

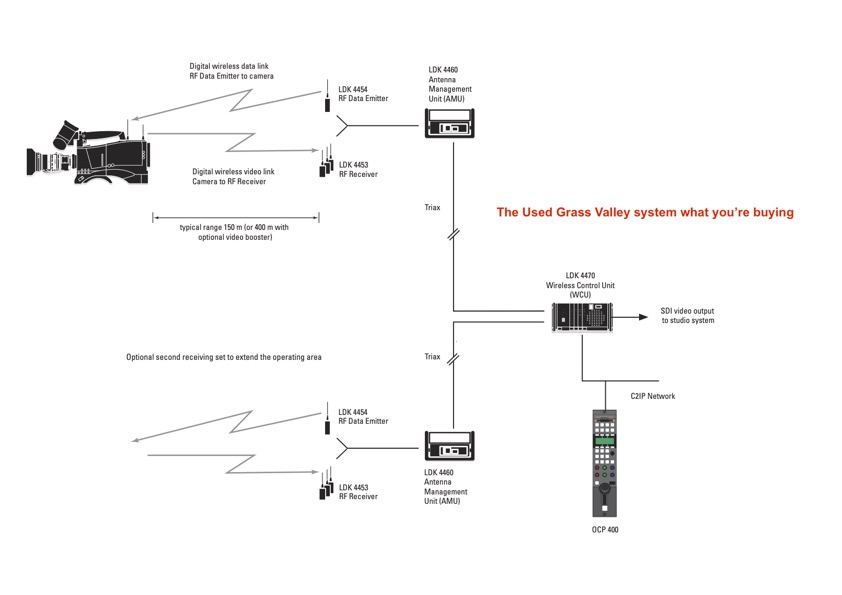

for immediate use. These HD Wireless what we offering has the optional second
receiving set to extend the operating area.

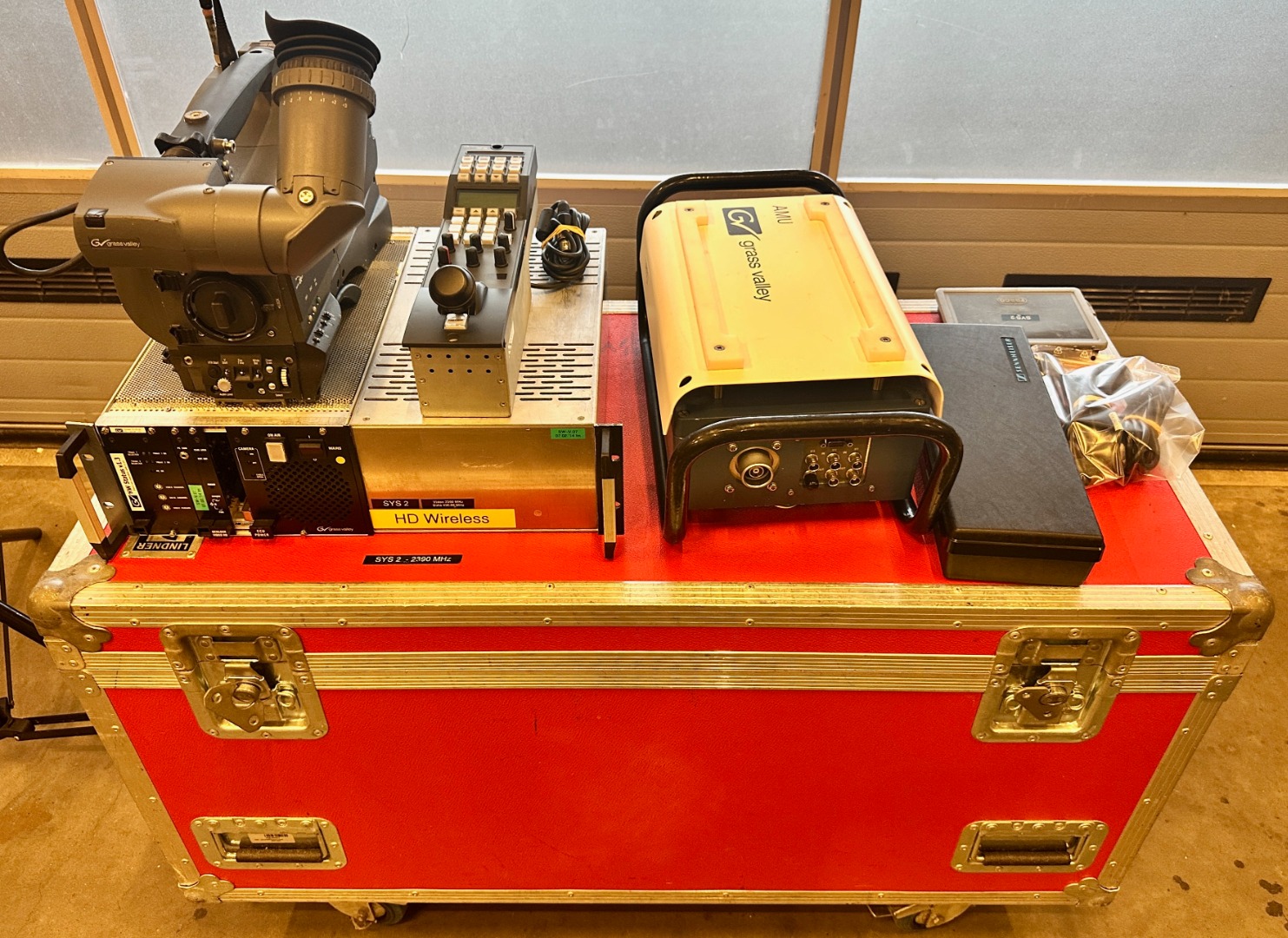

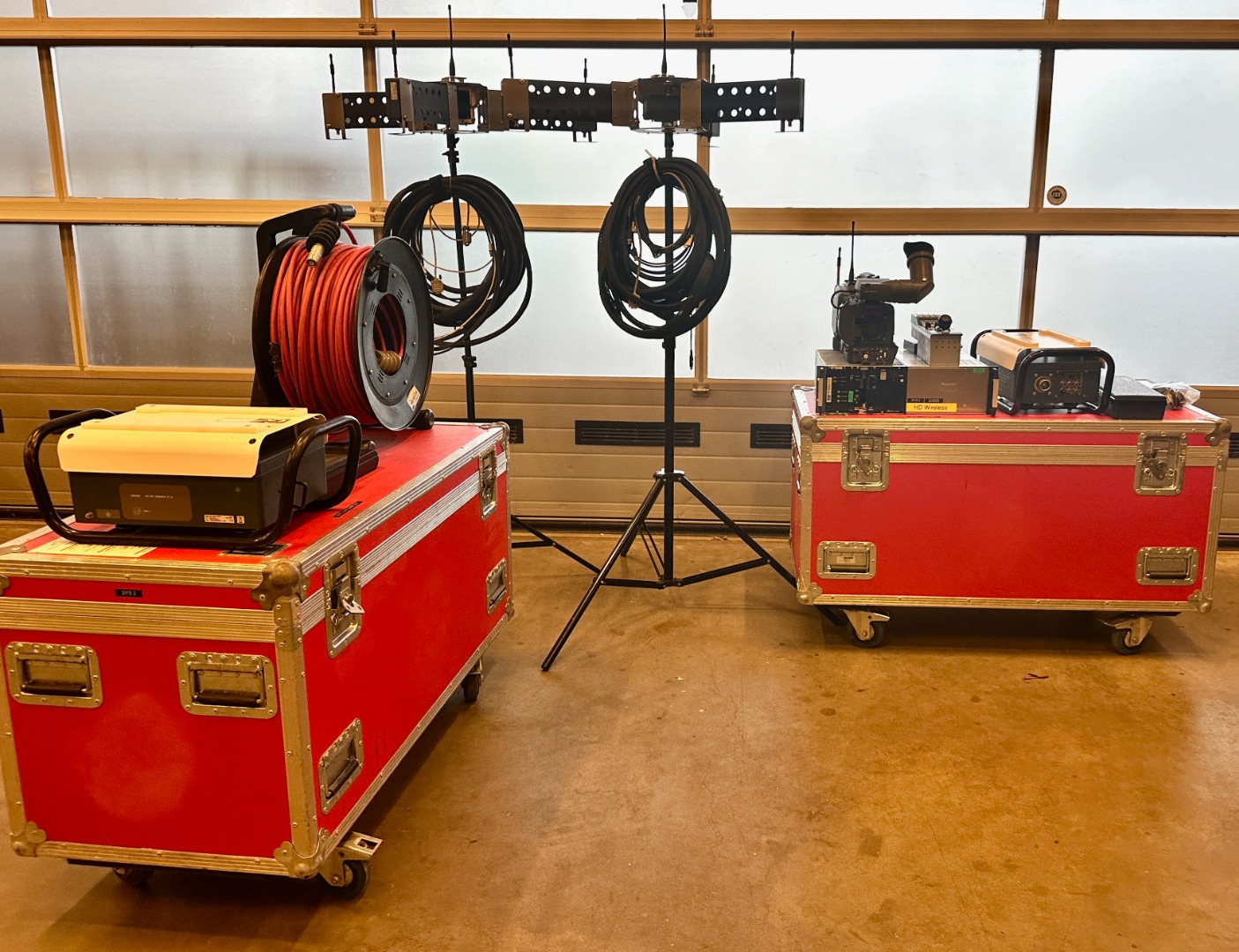

Everything is stored in a flight case, making it easy to transport to any location.
What you see in the pictures is what you’re buying and is listed below.

System configuration:

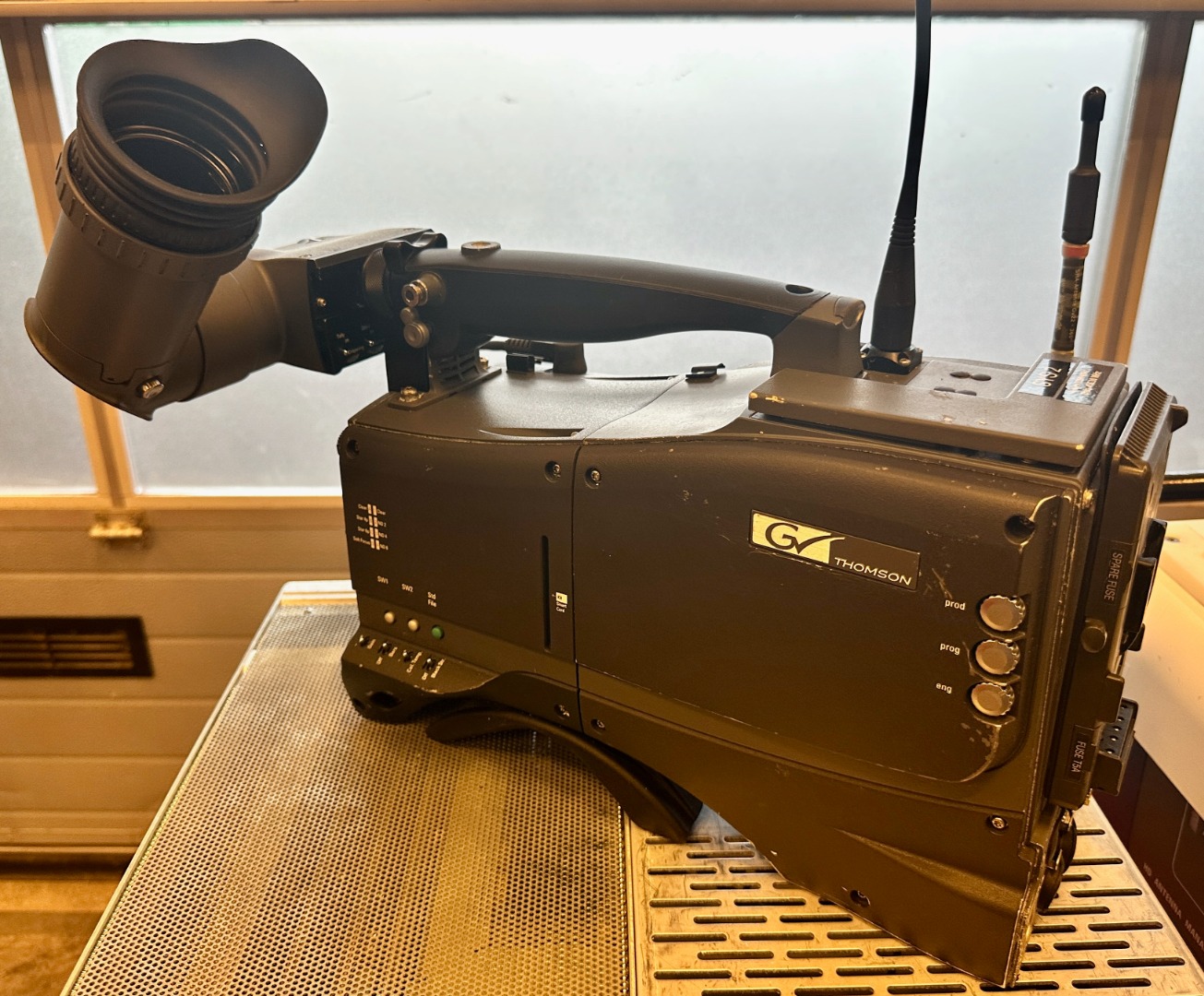

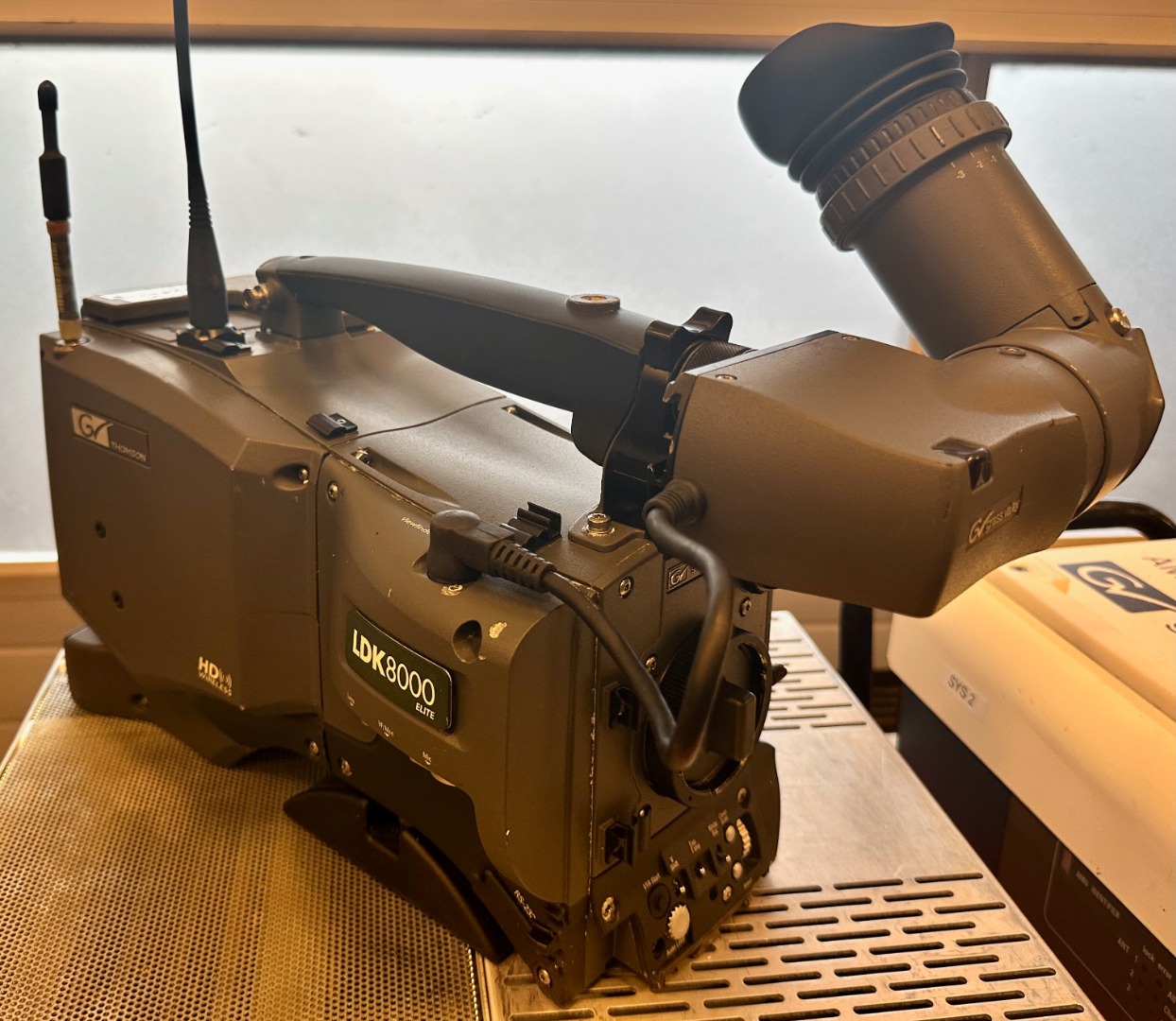

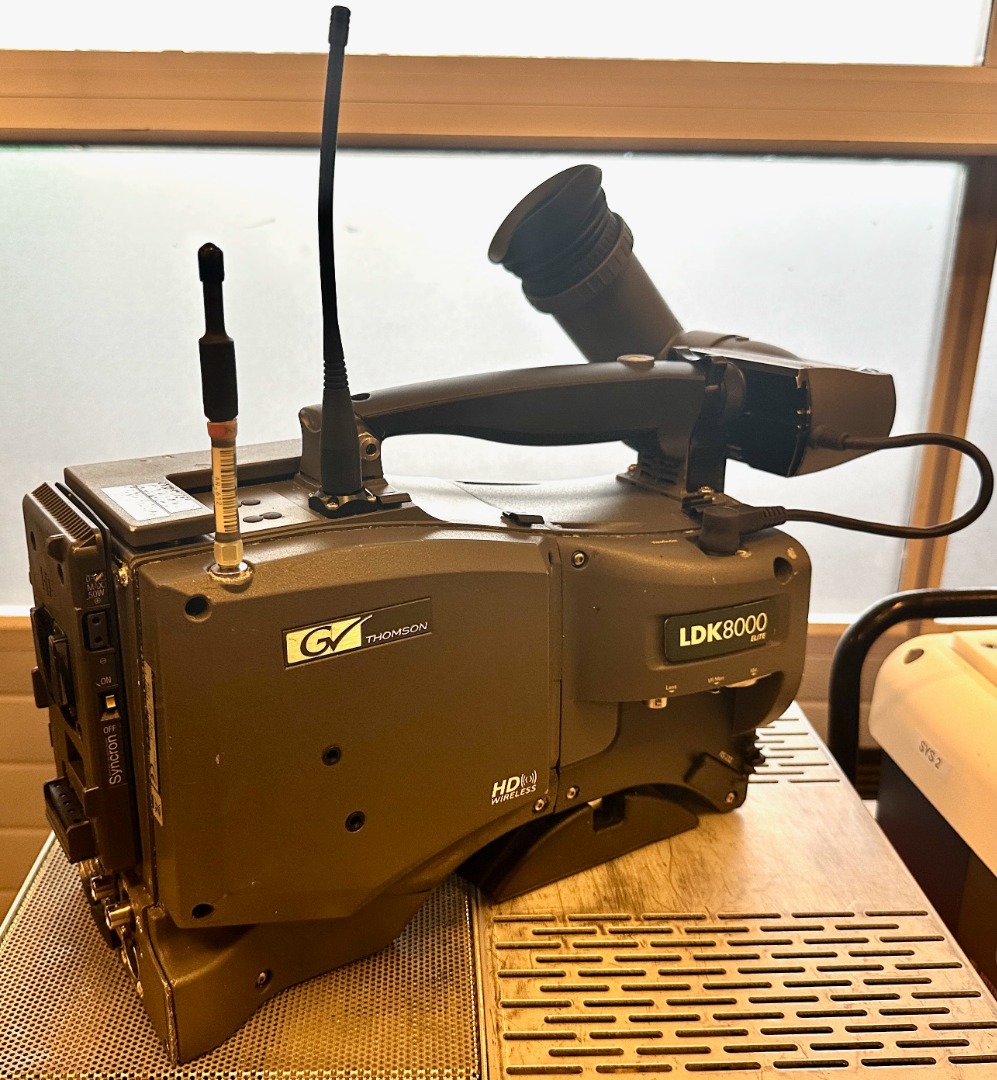

- LDK-8000/70, Elite Camera Head. 234UY
- LDK 5464/00, Camera Adapter (V-Lock battery plate) 29MDH
- LDK 5302/60, 2-inch HD B/W Viewfinder 18N13
- LDK 5466/22, HD RF Module Wireless adapter for 2.2 - 2.4 GHz 29MG3

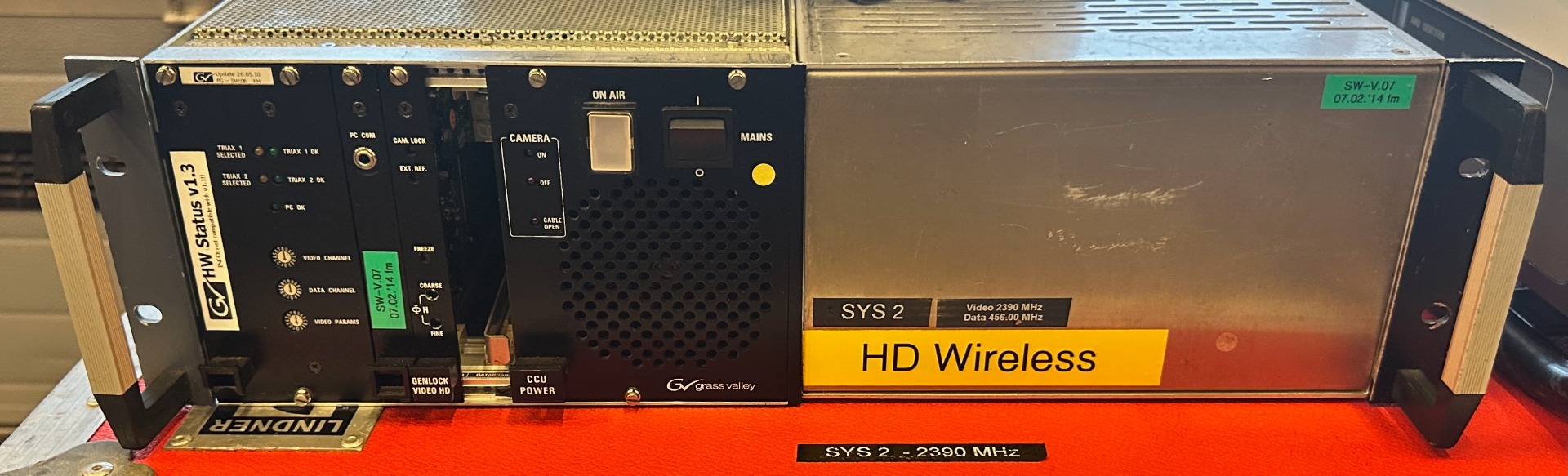

- LDK 4470/10, HD Wireless Control Unit (LEMO) 24HDW

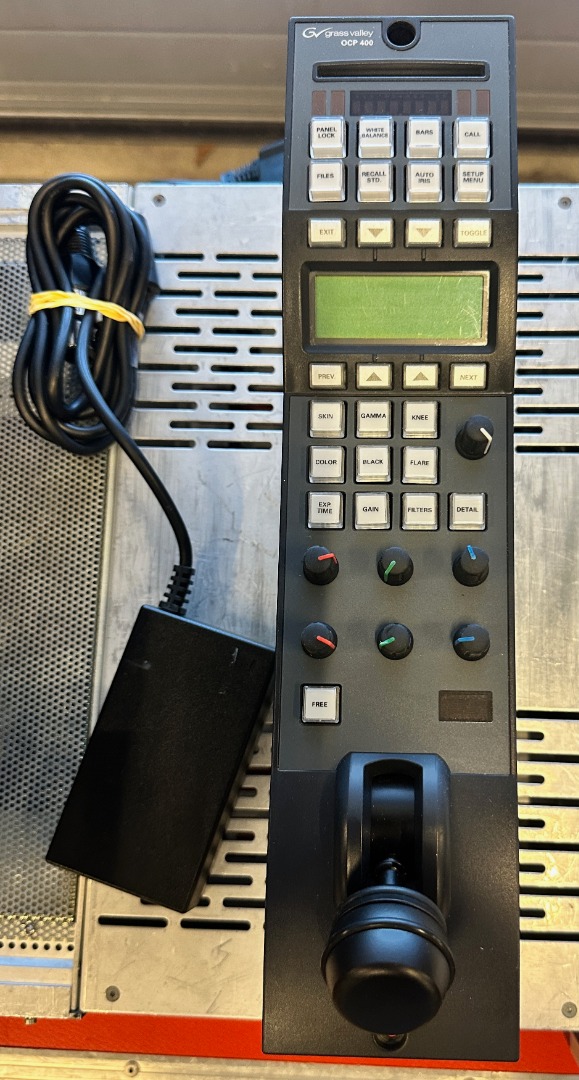

- LDK 4640/10, OCP 400, Operation Control Panel 1E92P

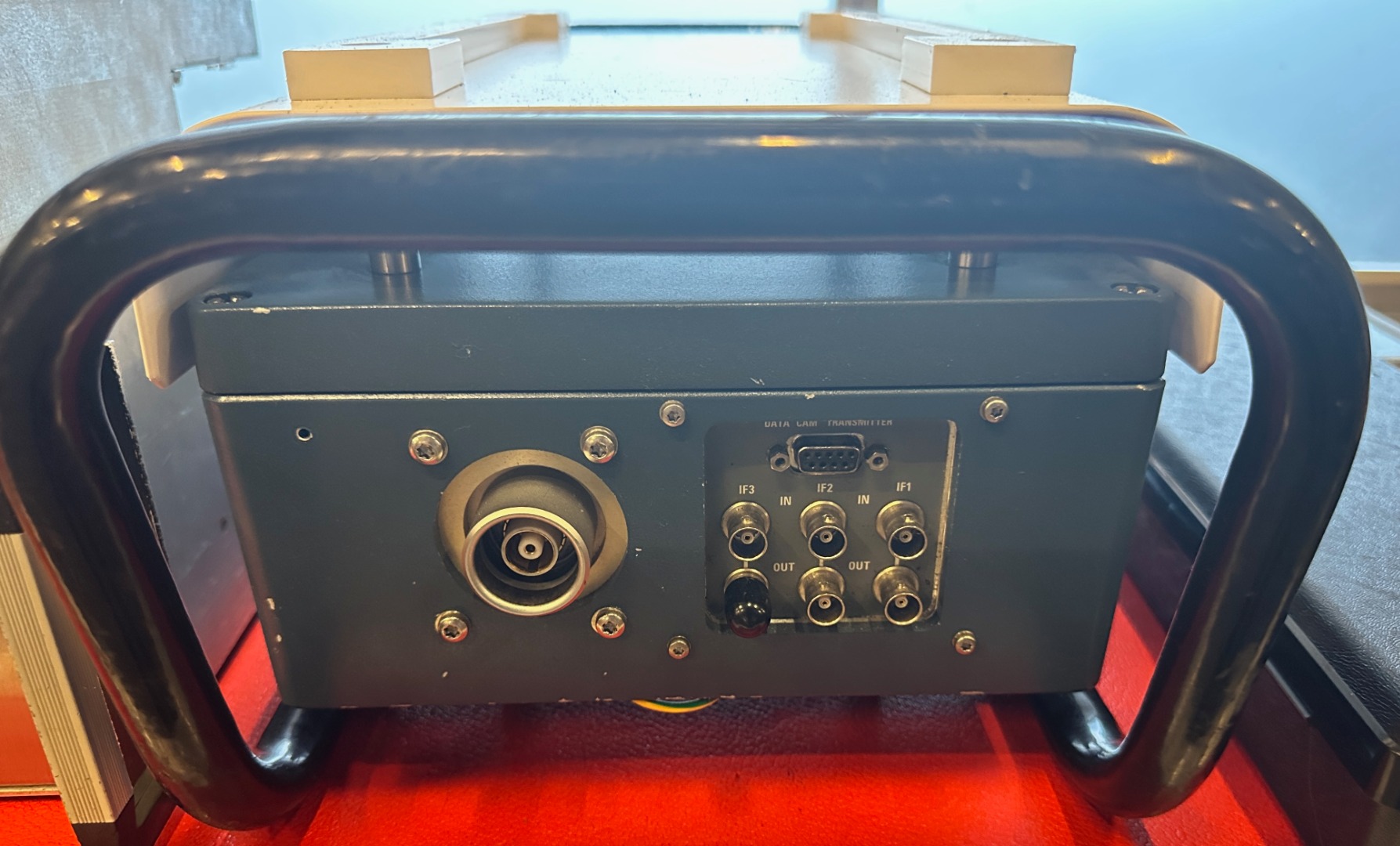

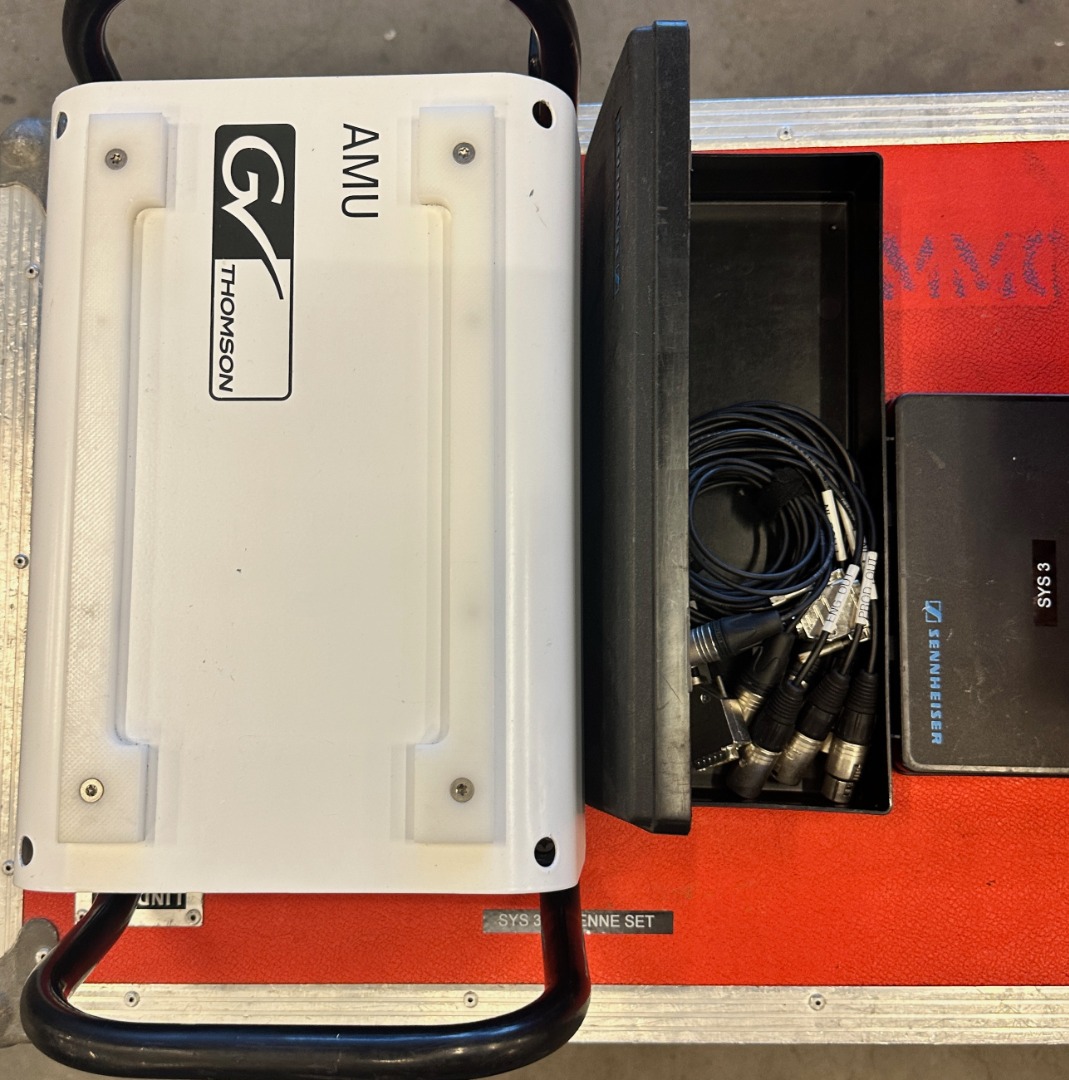

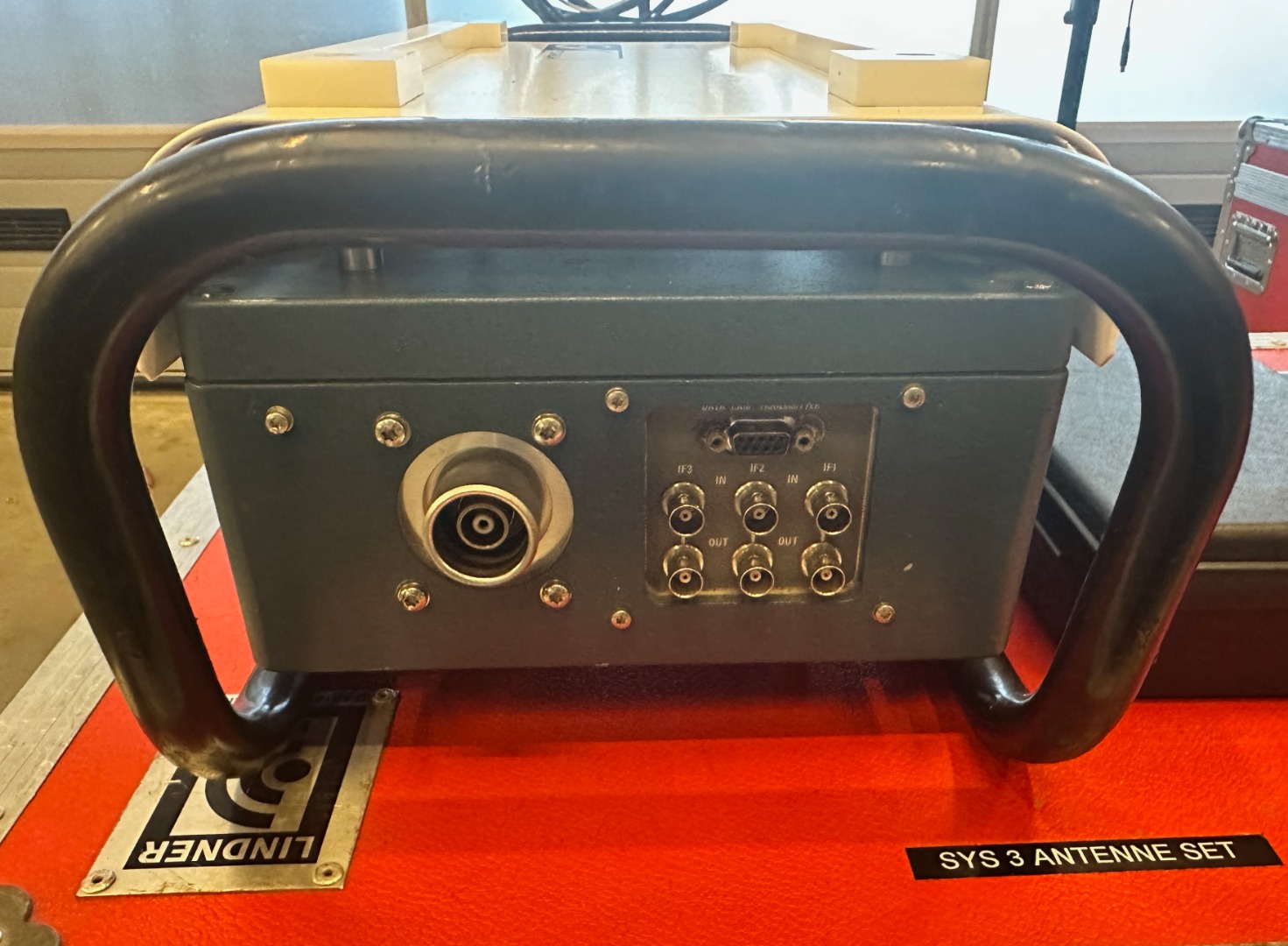

- 2x LDK 4460/10, AMU HD (LEMO) 29MDC + 24HG2
- LDK 4454/60, 1x RF Data emitter 456 MHz 2SYRV

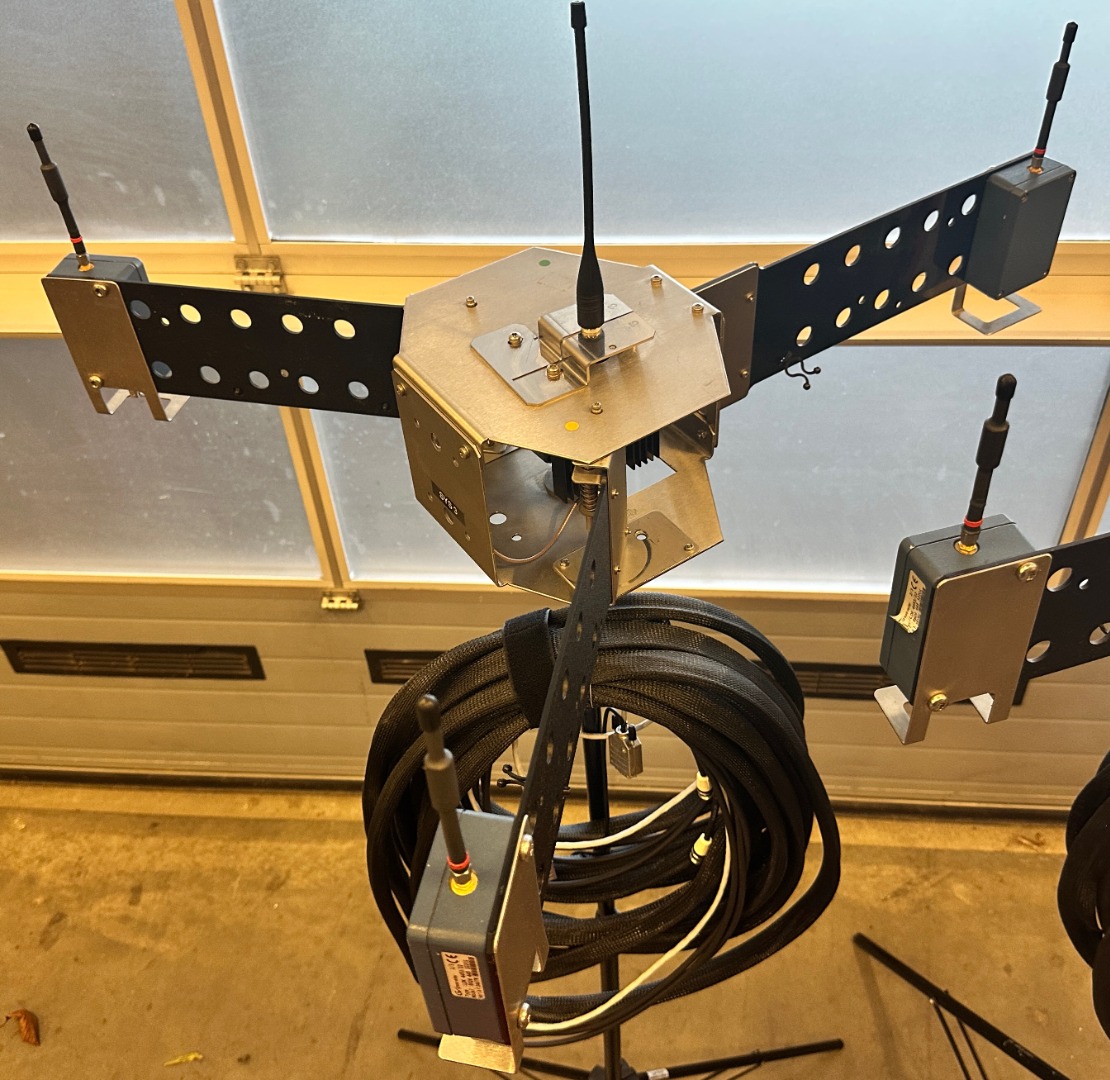

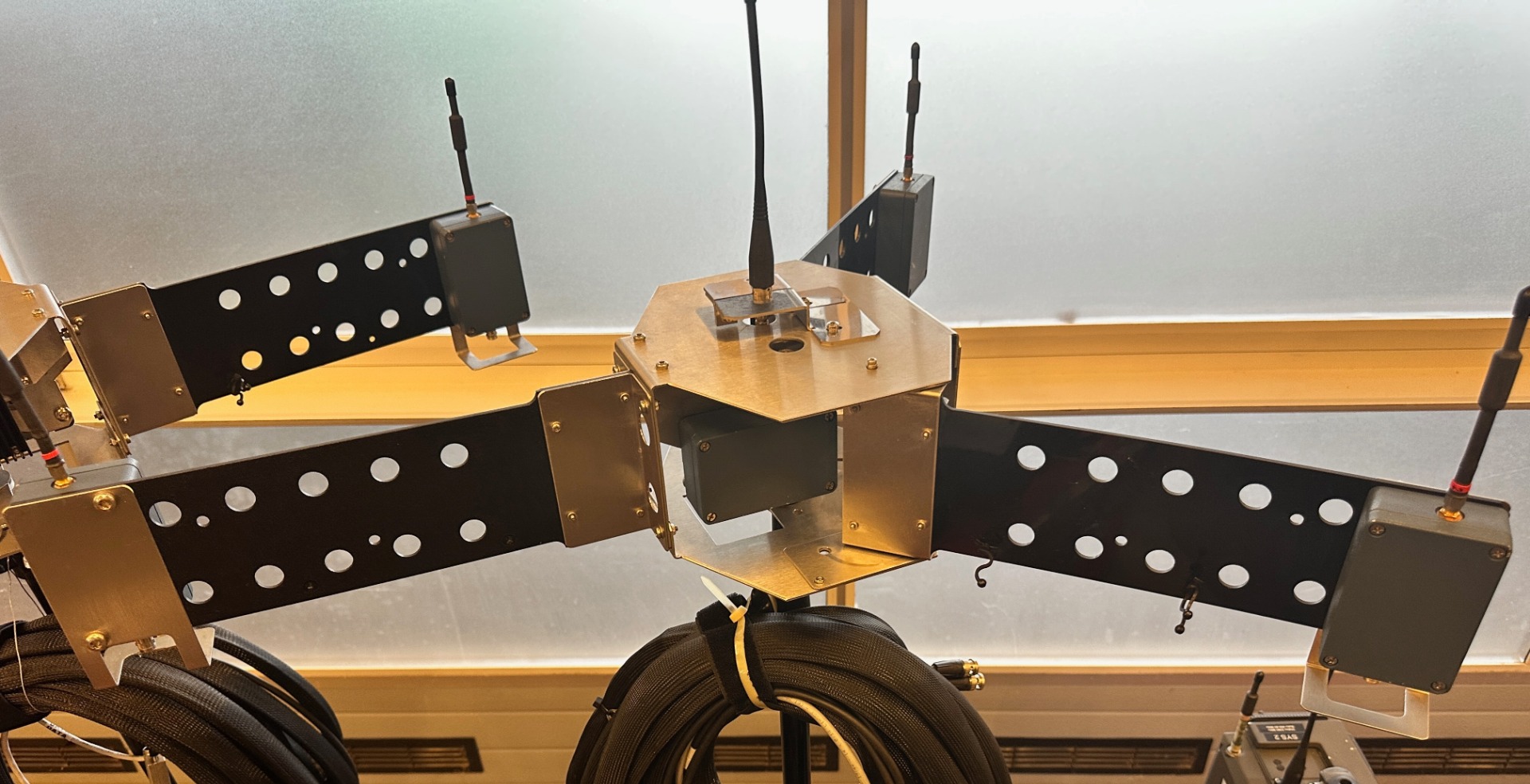

- LDK 4453/22, RF Receiver antenna set (3x) for 2.2 - 2.4 GHz 2SYRV
- LDK 4454/60, 1x RF Data emitter 456 MHz 24FMX
- LDK 4453/22, RF Receiver antenna set (3x) for 2.2 - 2.4 GHz 24GTR

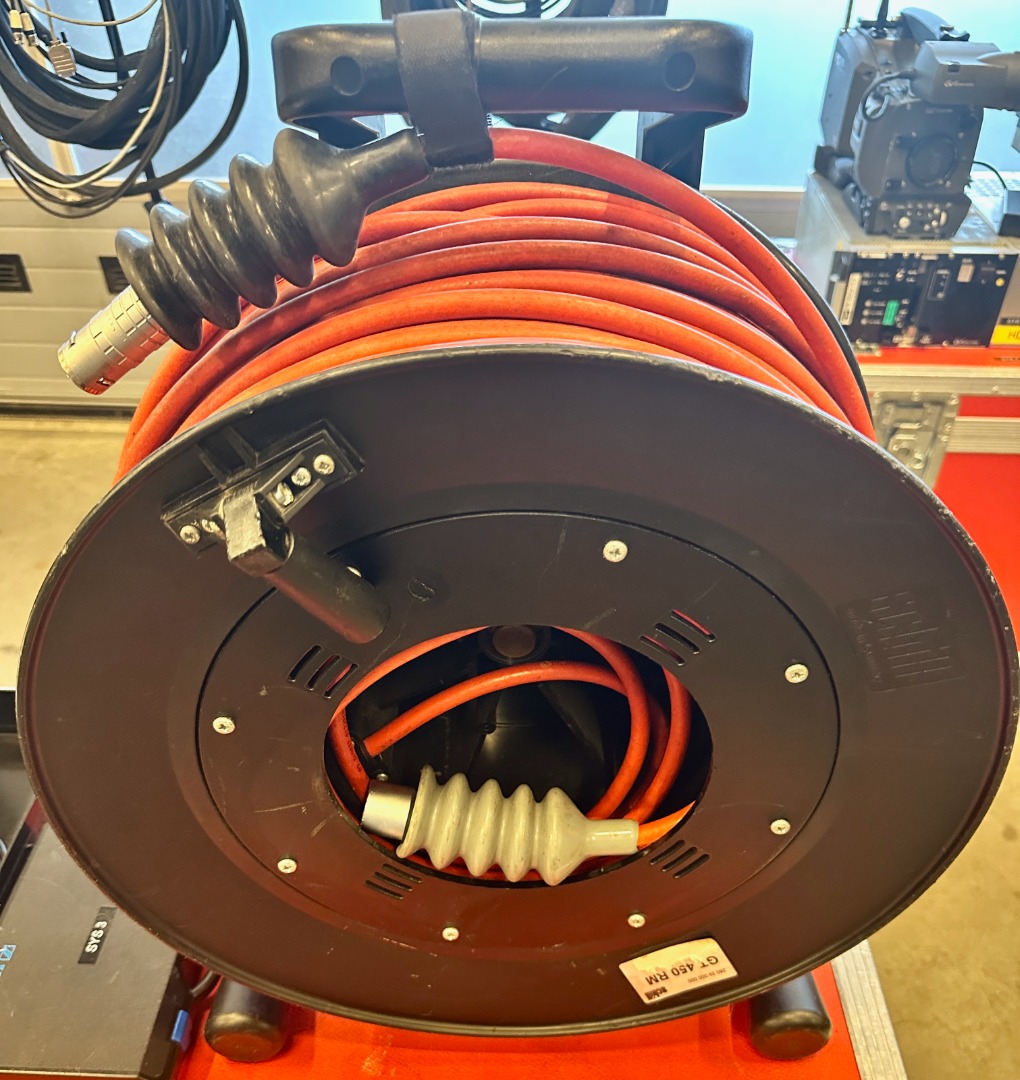

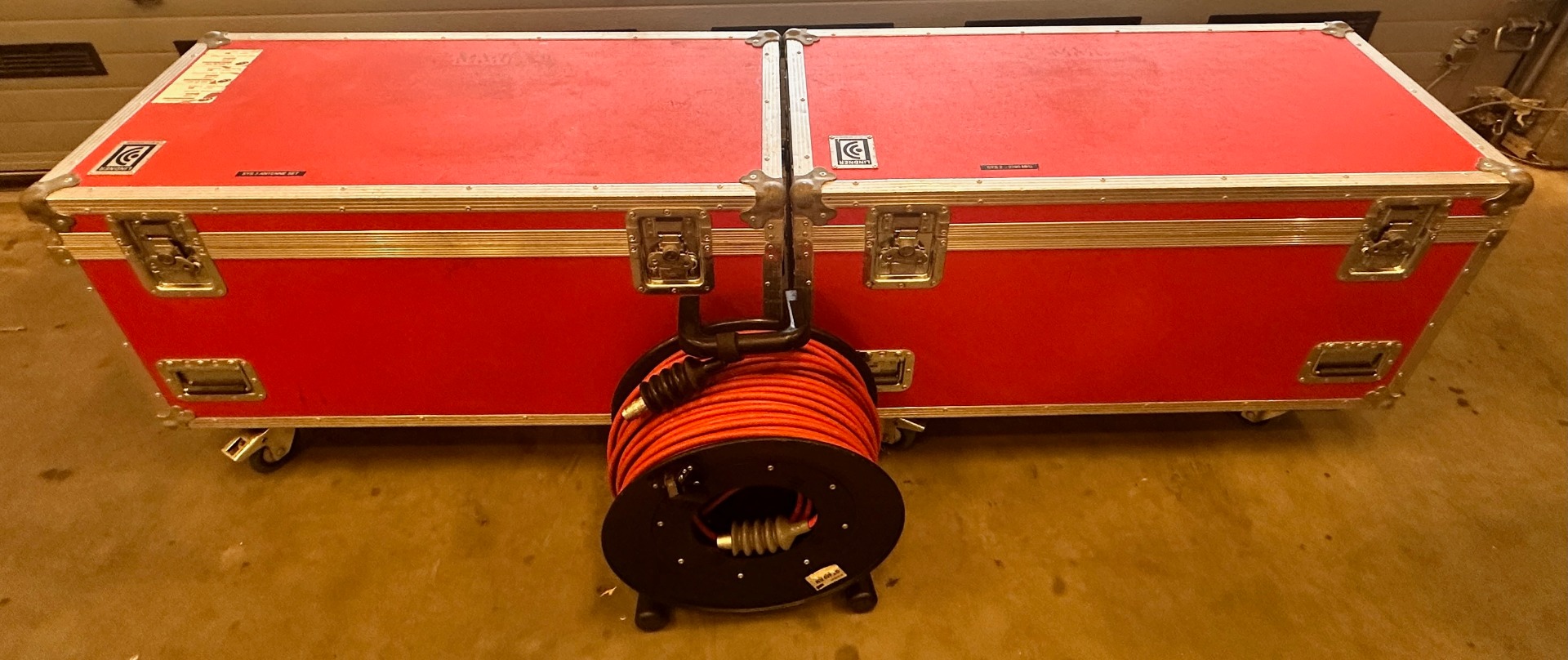

- 150 meters LEMO Triax cable on a Schill drum

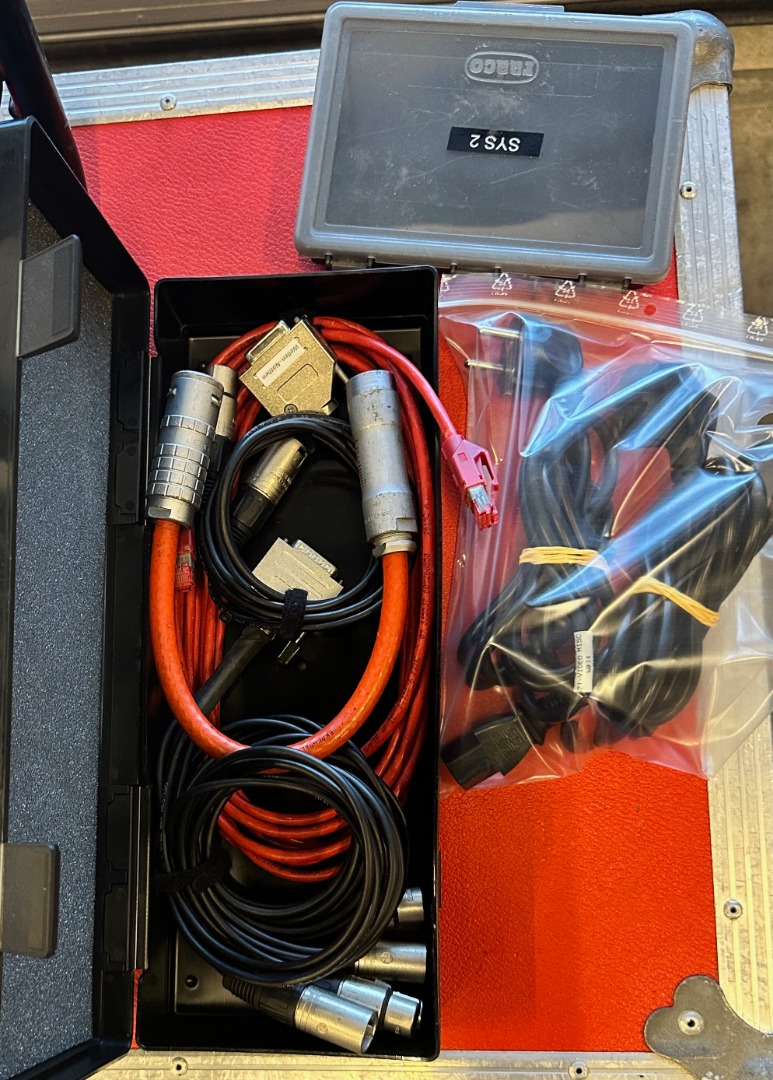

- Included all the connecting cables, ready for shooting.

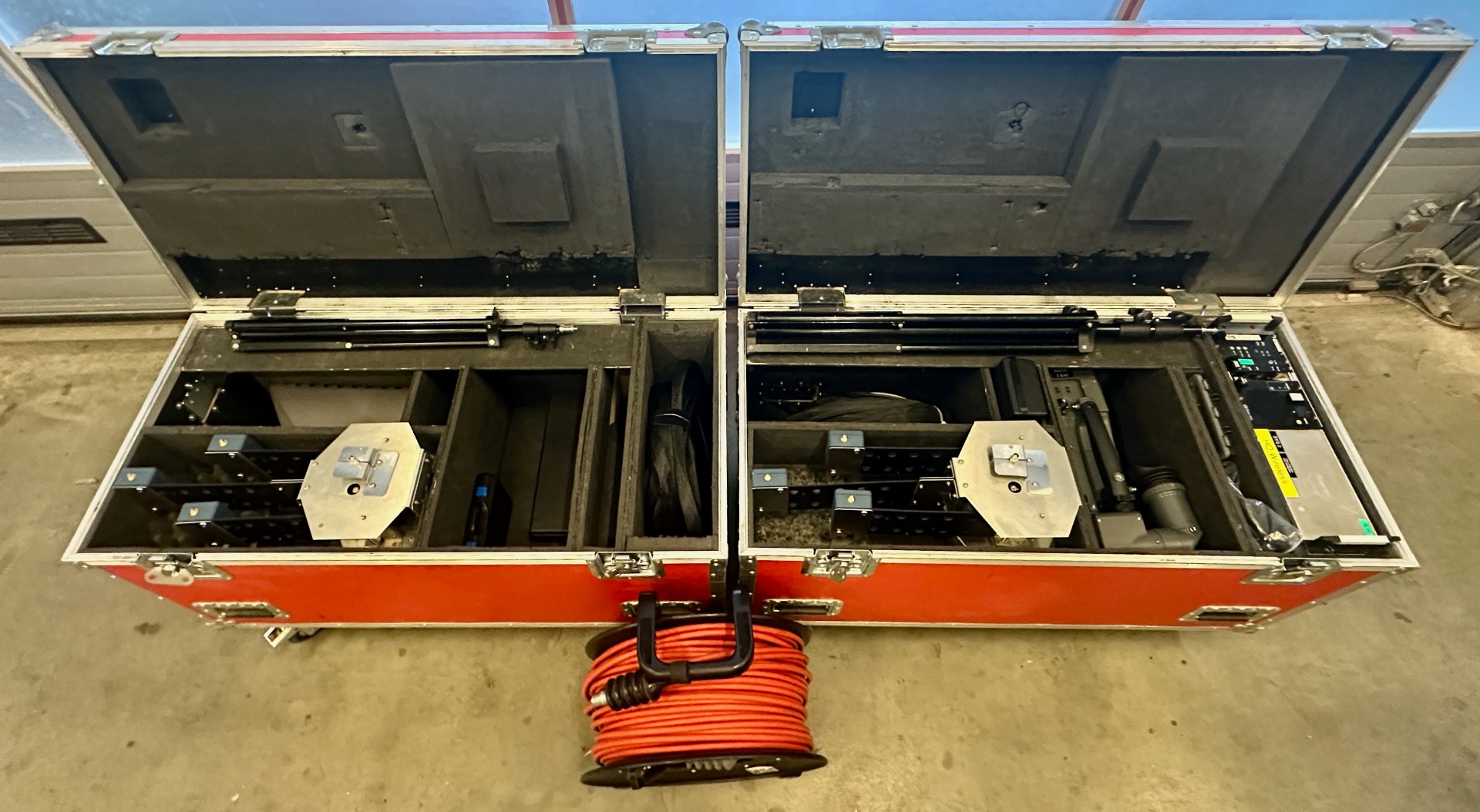

- Everything can be stored in two wheeled flight case,
which is included with the purchase of the system.

FEATURES:
- Excellent HD picture quality using powerful JPEG 2000-based compression
- Supports 1080i50/59.94, 720p50/59.94 and 1080psF25/29.97 formats
- Robust and reliable transmission based on a modified 802.16 physical layer.
- Coverage area up to 150 m (500 ft).
- Three-antenna diversity system for transmission reliability
- Omni-directional antenna system for maximum flexibility
- Low latency performance and genlock features
- Easy integration in studio and stadium environment with standard triax cameras
- Choice of transmission profiles to fulfill specific production needs
- Supports C2IP control systems and OCP 400 control panels
- Dockable with Grass Valley HD camera heads
- On-screen display selection of video and data transmission frequencies
- End-to-end digital processing with 10-bit quality level
- Support of roaming when using two antenna sets for increased coverage
- Freeze frame in the case of interrupted video link
- Optional video booster available for long-transmission applications
