d&b audiotechnik E5 2-Way Compact Coaxial Loudspeaker

d&b audiotechnik E5 2-Way Compact Coaxial Loudspeaker
Order now: https://cuesale.com/product/db-audiotechnik-e5-2-way-compact-coaxial-loudspeaker/

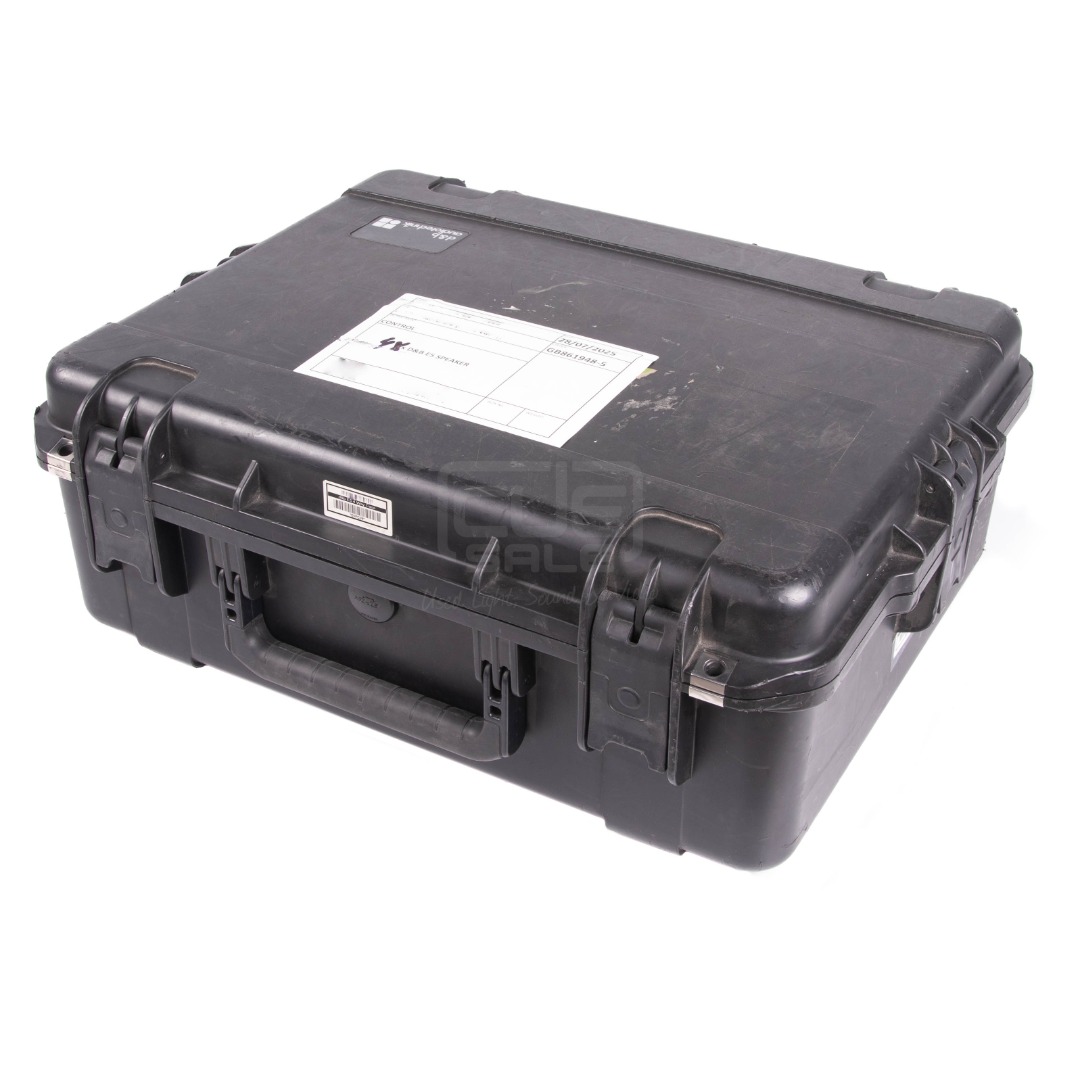

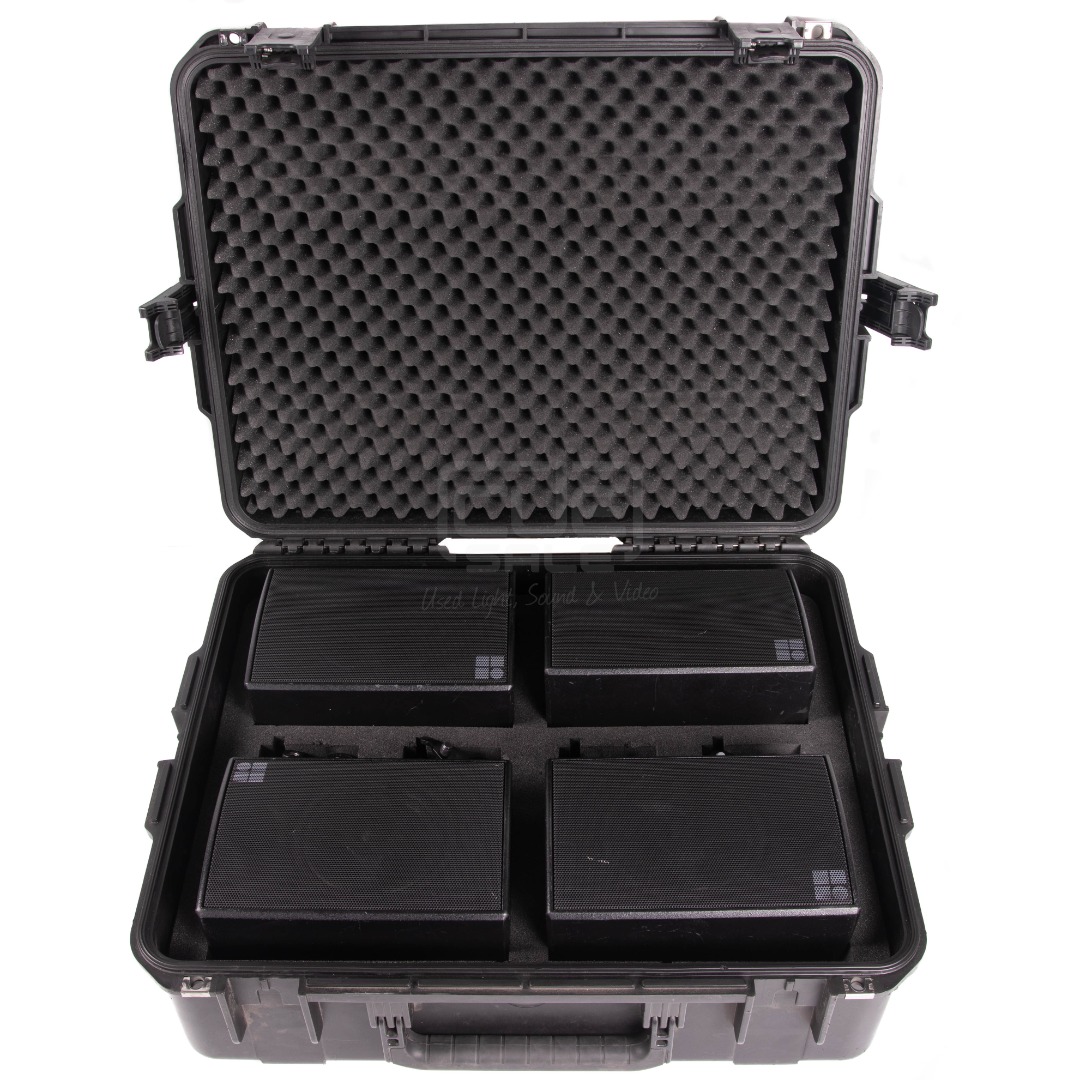

Pelicase included when buying 4 pcs.

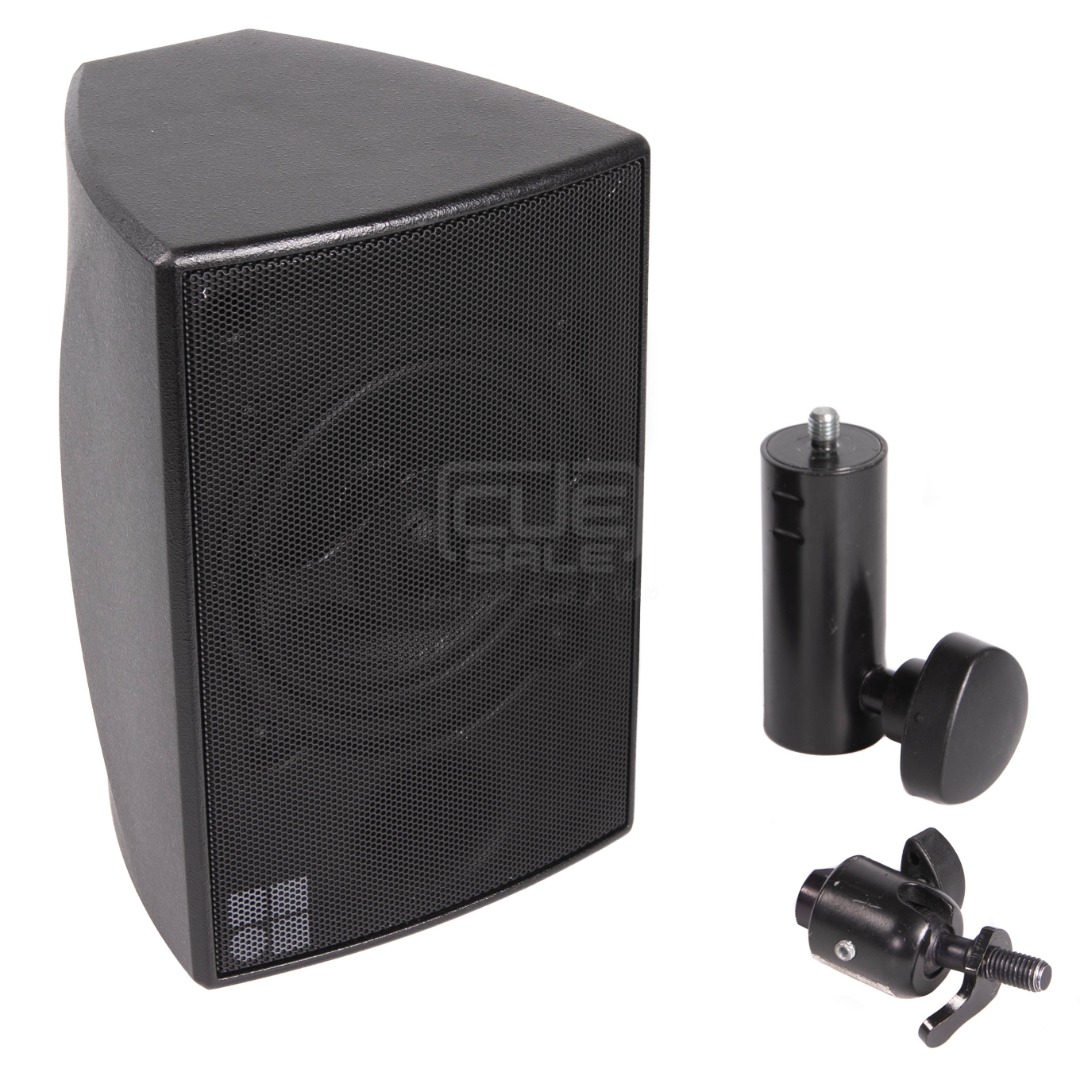

The E5 is a lightweight 2-way passive loudspeaker using a ferrite LF driver and a coaxially mounted wide dispersion dome tweeter. It offers a wide symmetrical dispersion pattern in the horizontal and vertical plane, while the cabinet may be mounted in either attitude. The E5 is intended for mobile near field applications for speech and music reinforcement in theatres, conferences, industrial presentations, broadcast studios and as surround sound, delay and fill systems. It can be used stand-alone or supplemented by different subwoofers from the E-Series. The highly compact bass-reflex enclosure is injection moulded with an impact resistant black paint finish. The loudspeaker cabinet is weather protected and suitable for outdoor use as standard and is also available with a Special Colour (SC) option.

Specifications :

Frequency response (-5 dB standard) : 85 Hz – 20 kHz
Frequency response (-5 dB CUT mode) : 130 Hz – 20 kHz
Max. sound pressure :
with 10D : 116 dB
with D20/5D/30D : 117 dB
with D40/D80/D90/40D : 117 dB
Cabinets per amplifier channel : 4
Configuration : 2-way compact coaxial loudspeaker
Nominal impedance : 16 Ω
Power handling capacity (RMS/peak 10 ms) : 60/400 W
Nominal dispersion angle (h x v): 100° conical
Components :
5″ driver with ferrite magnet
1″ dome tweeter coaxially mounted
passive crossover network

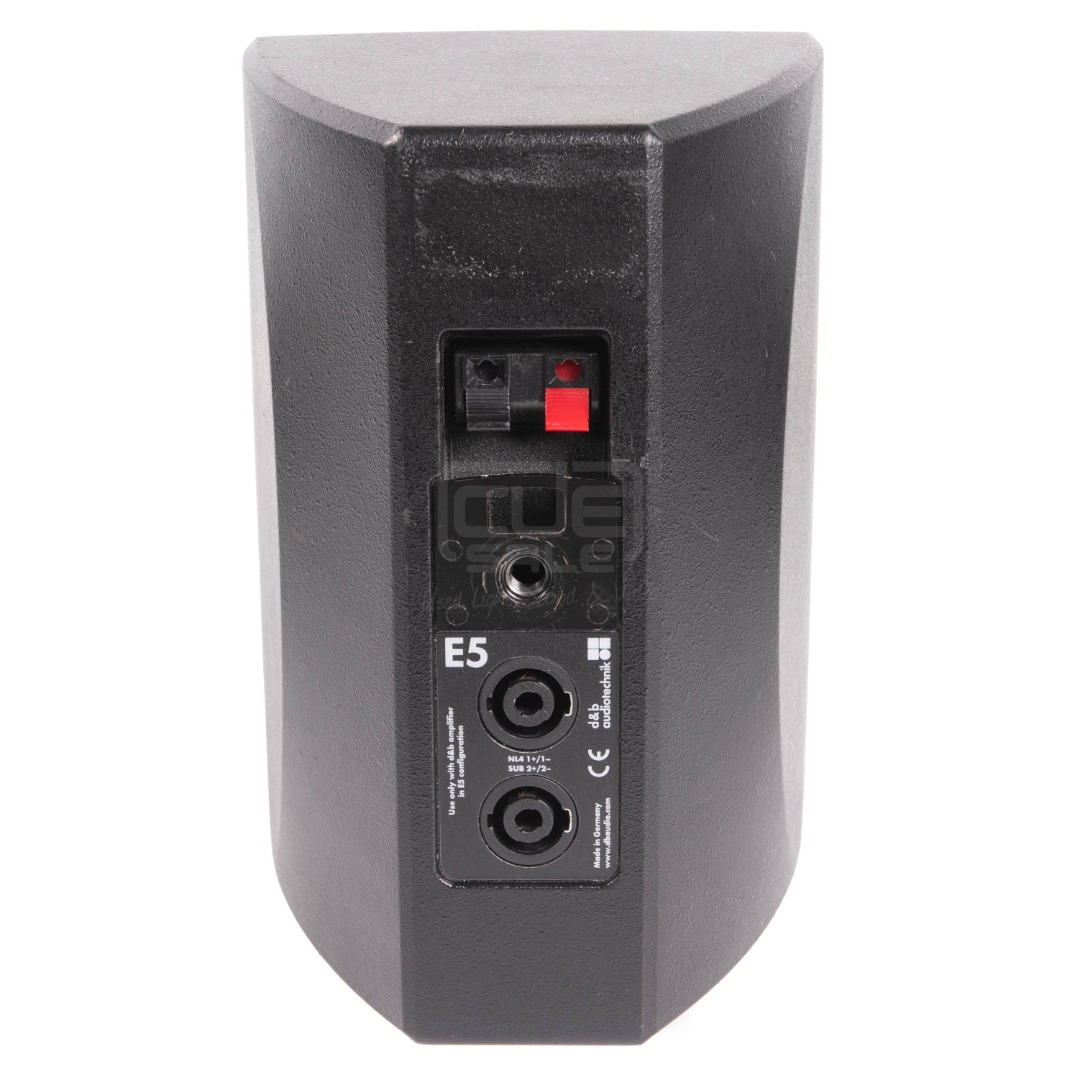

Connections :
2 x NL4
1 x two pole push terminal
Dimensions (h x w x d) : 230 x 154 x 155 mm / 9 x 6 x 6.1″
Weight : 2.7 kg / 6.0 lb


€395,00 Ex V.A.T. (MwST) per piece.

Prices are Excluding 21% VAT / MwSt.

Products are located in The Netherlands, customers with a V.A.T. ID number pay 0% V.A.T. / MwSt
Please send us your full address for a shipment quote / price.

For more used equipment check our other advertisements on this site or have a look at our website www.cuesale.com
